Home >> Ford >> 2009 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Driver Front Door, Side Impact Sensor

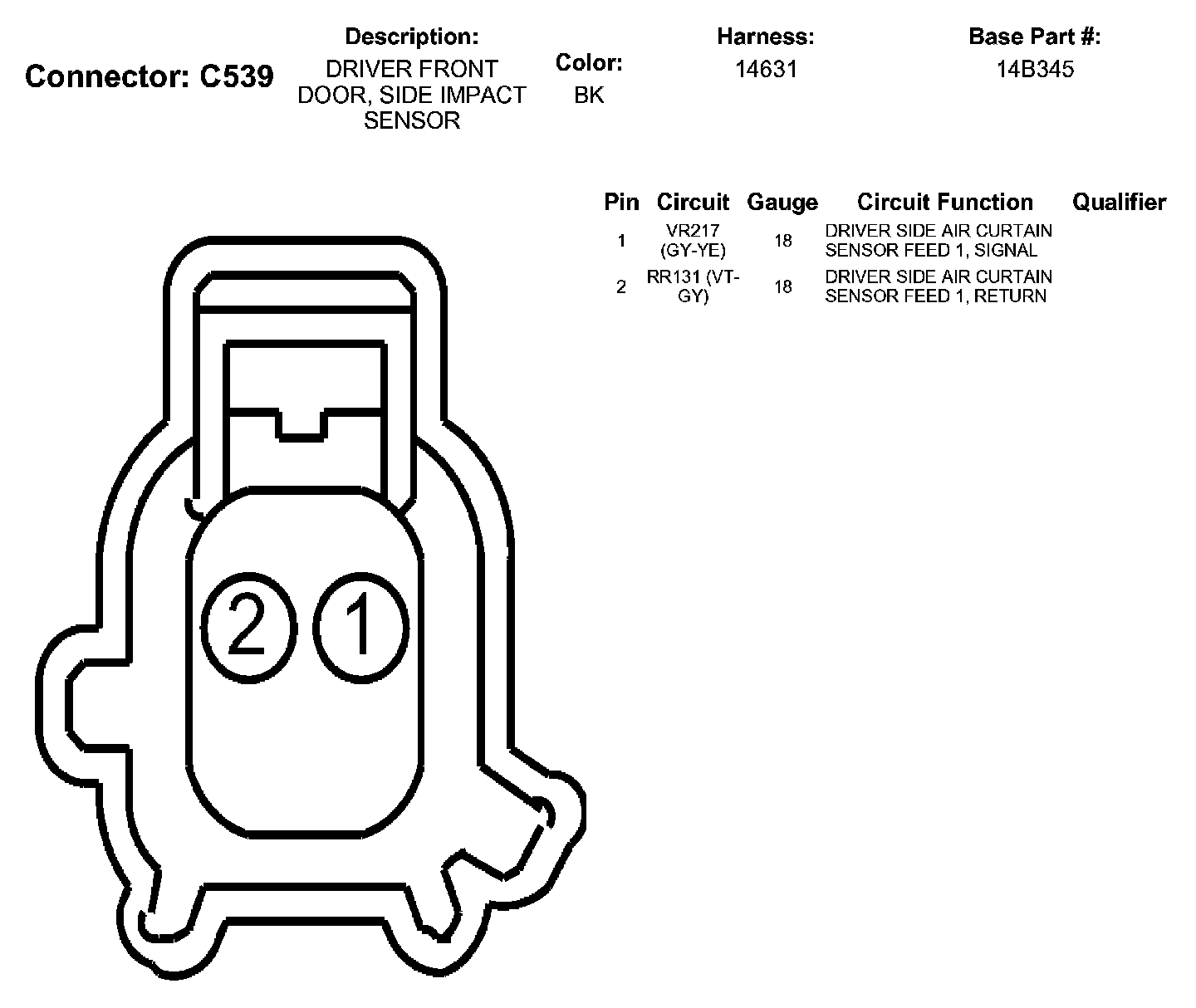

Driver Front Door, Side Impact Sensor
