LEMON Manuals: Even more car manuals for everyone
Home >> Ford >> 2009 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module

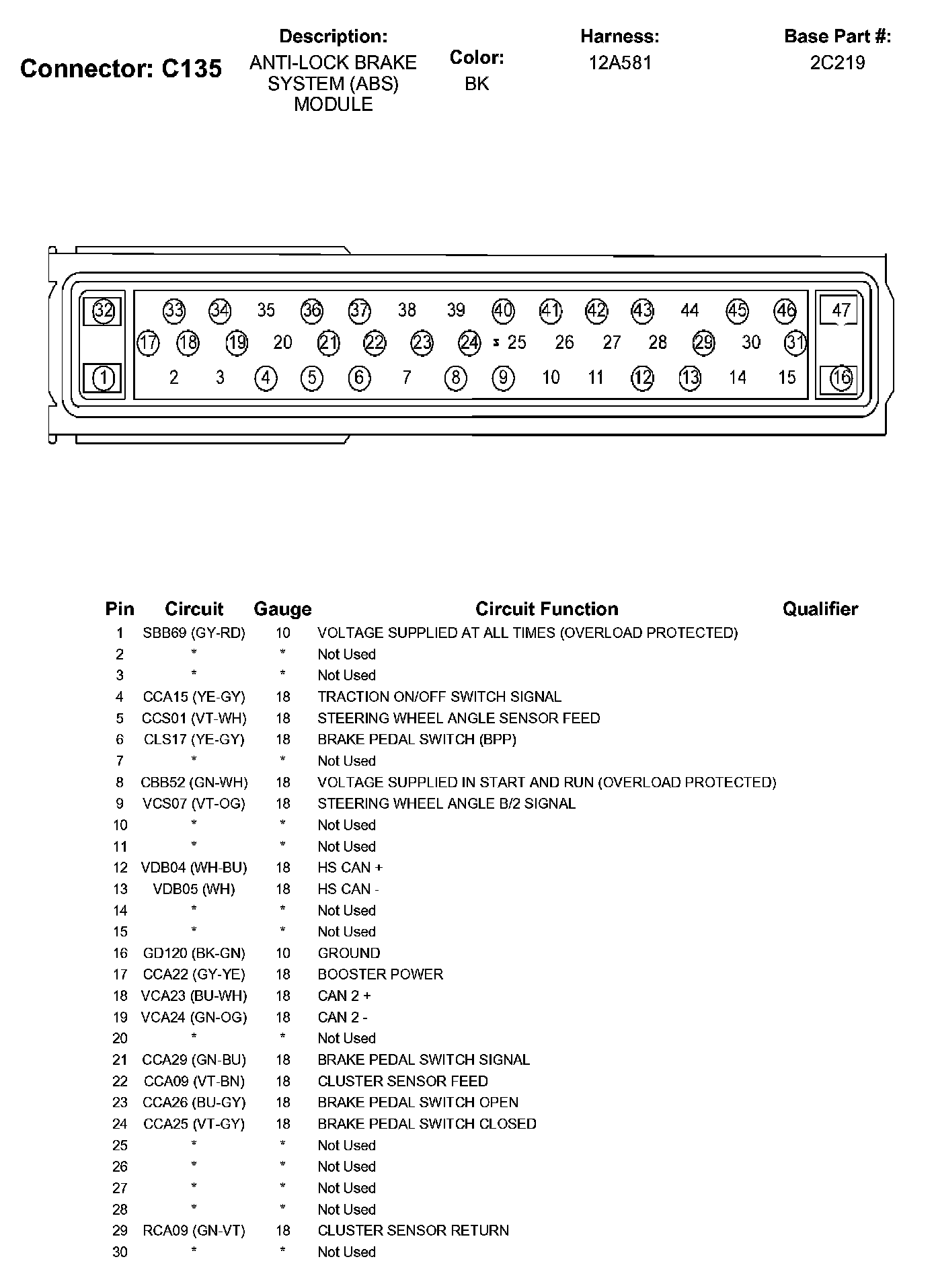

Electronic Brake Control Module

Part 1:



Part 2:
