Diagnostic Trouble Code Tests and Associated Procedures
Diagnostic Trouble Code Tests and Associated Procedures
Starting System

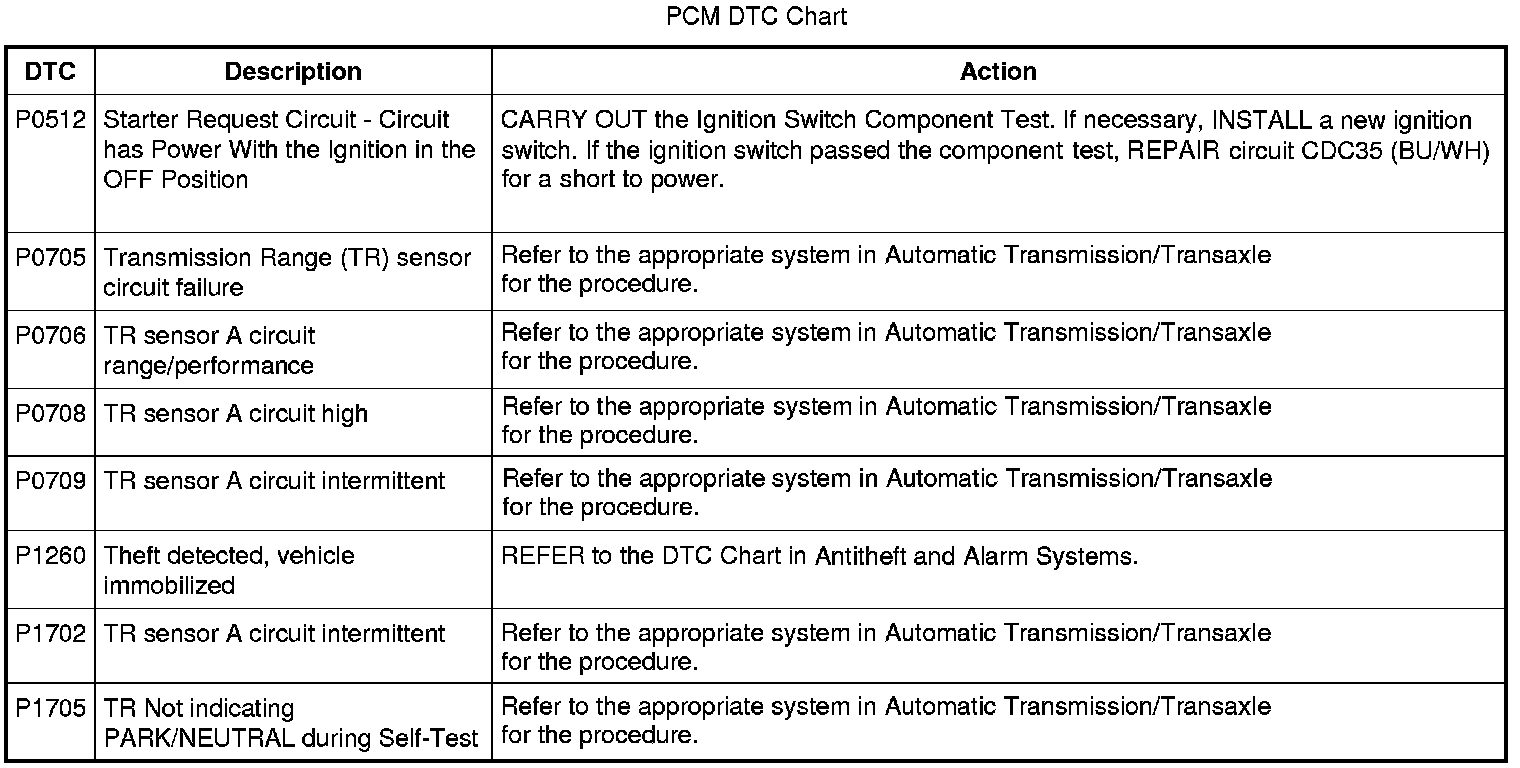

DTC Charts
P0512-P1705:
