Oil Pan, Engine

Install the remaining oil pan bolts.

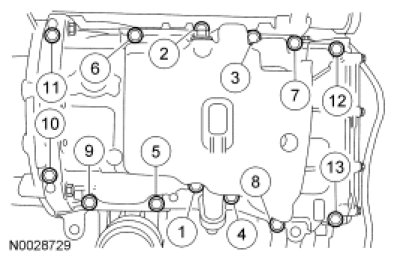

Tighten in the sequence shown to 25 Nm (18 lb-ft).
