Home >> Ford >> 2009 >> Escape 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Intake Manifold

Intake Manifold

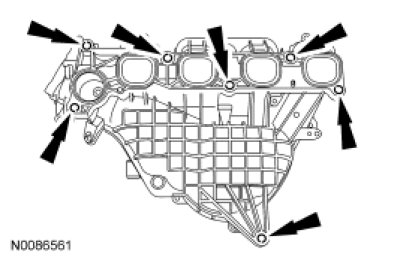

Install the intake manifold gasket, intake manifold and 7 bolts.
Tighten to 18 Nm (159 lb-in).
