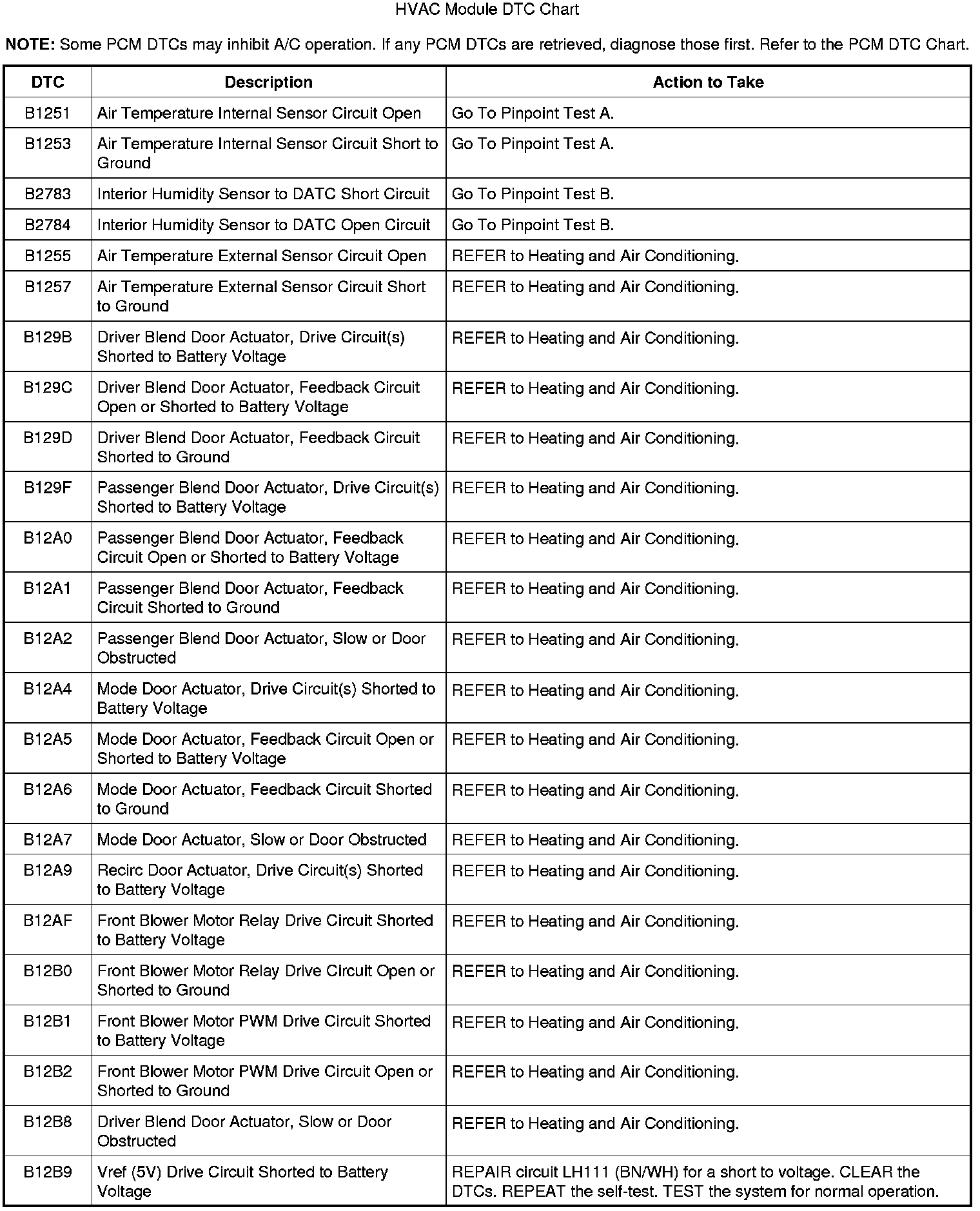

HVAC Module DTC Chart
HVAC Module DTC Chart
Climate Control System
DTC Charts
B12AF-B2784:

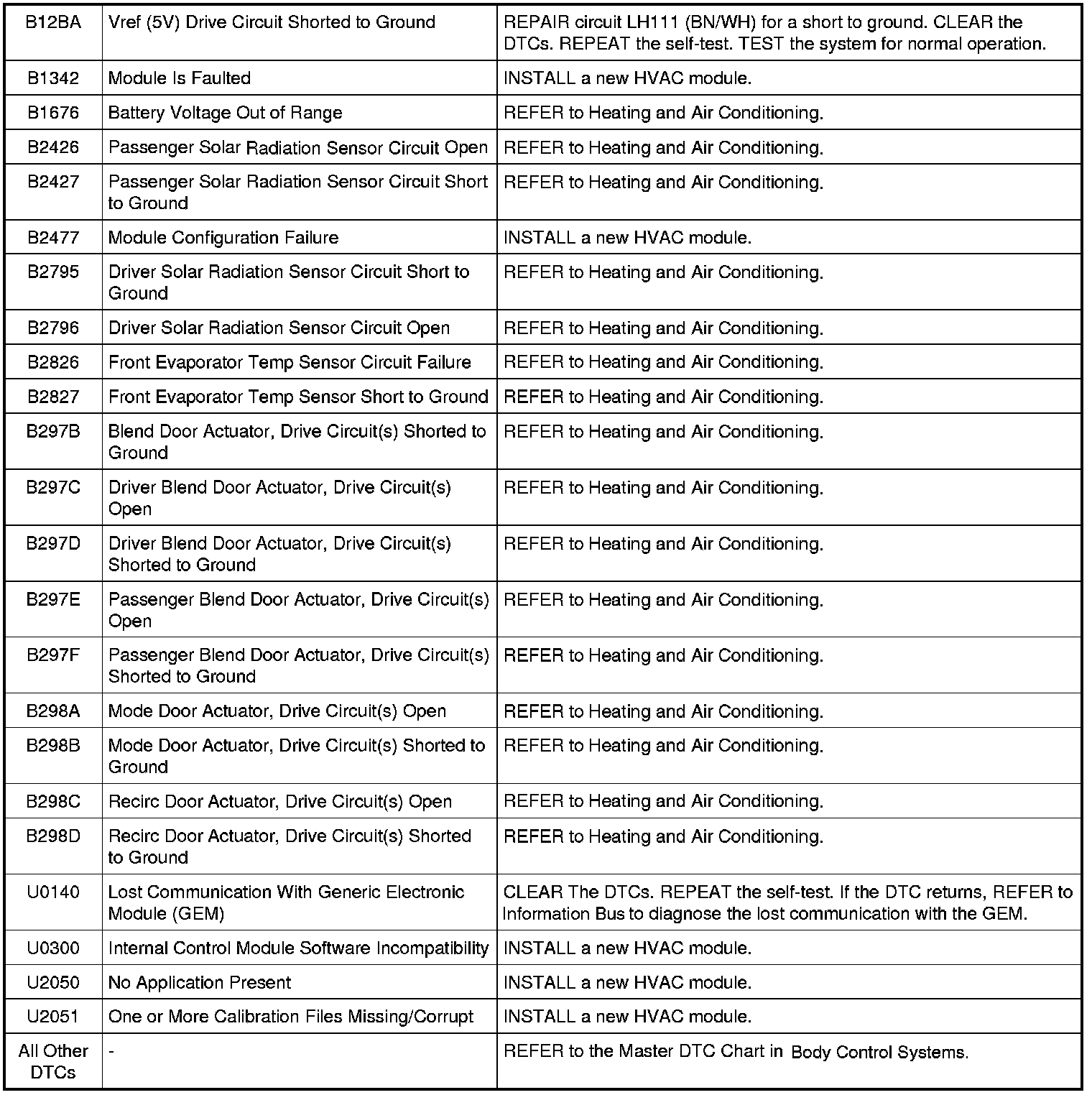

B12BA-B2827 / U0140-U2051:
