Water Pump

Install the coolant pump and the 8 bolts.

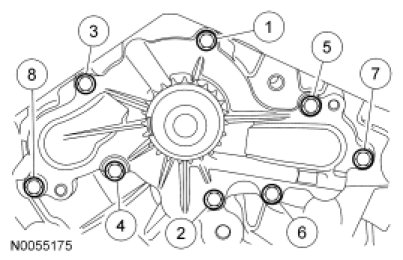

Tighten in the sequence shown to 10 Nm (89 lb-in).
