Ford
>>
2009
>>
Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>

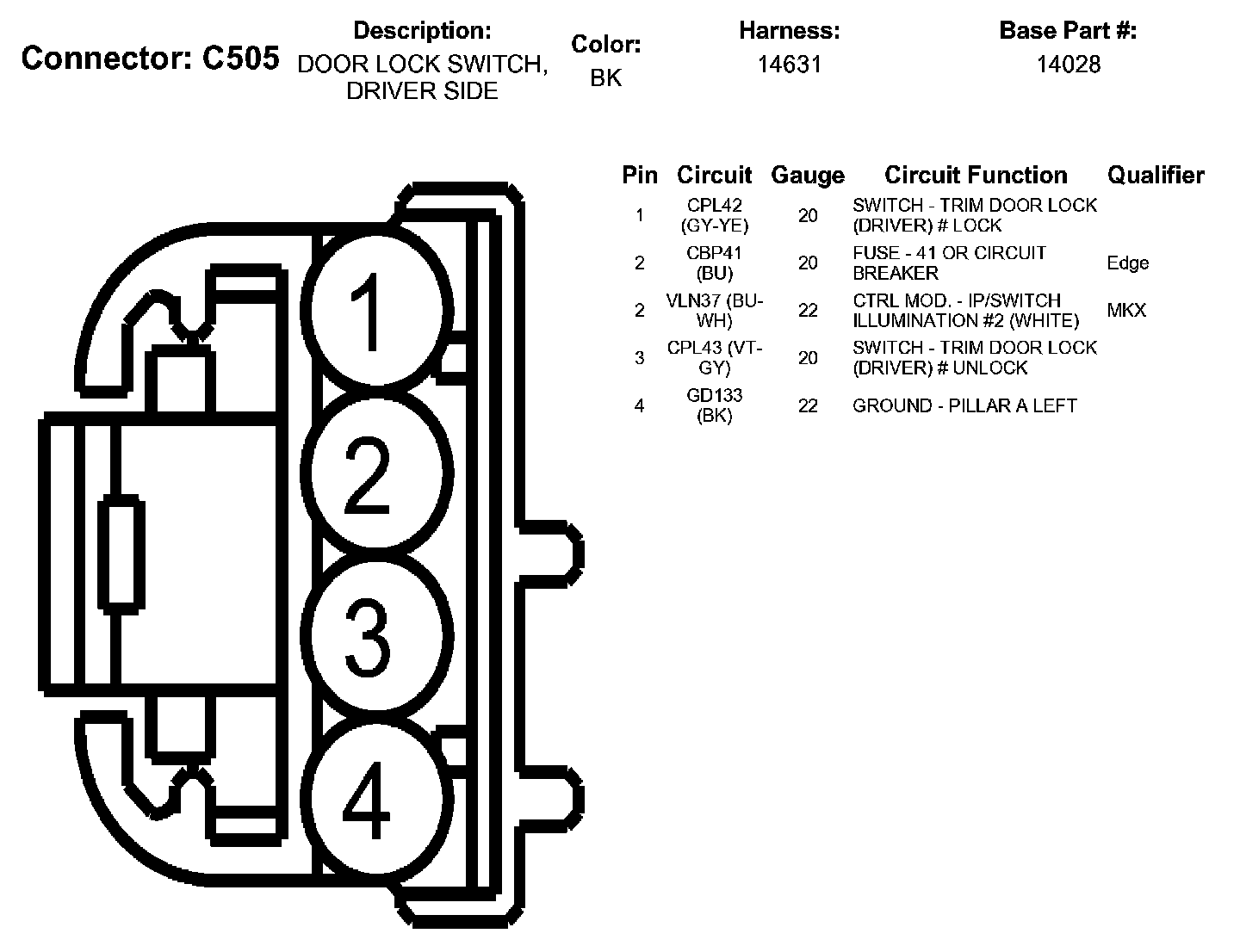

Door Lock Switch, Driver Side
Door Lock Switch, Driver Side
