Home >> Ford >> 2009 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Inline >> C313

C313

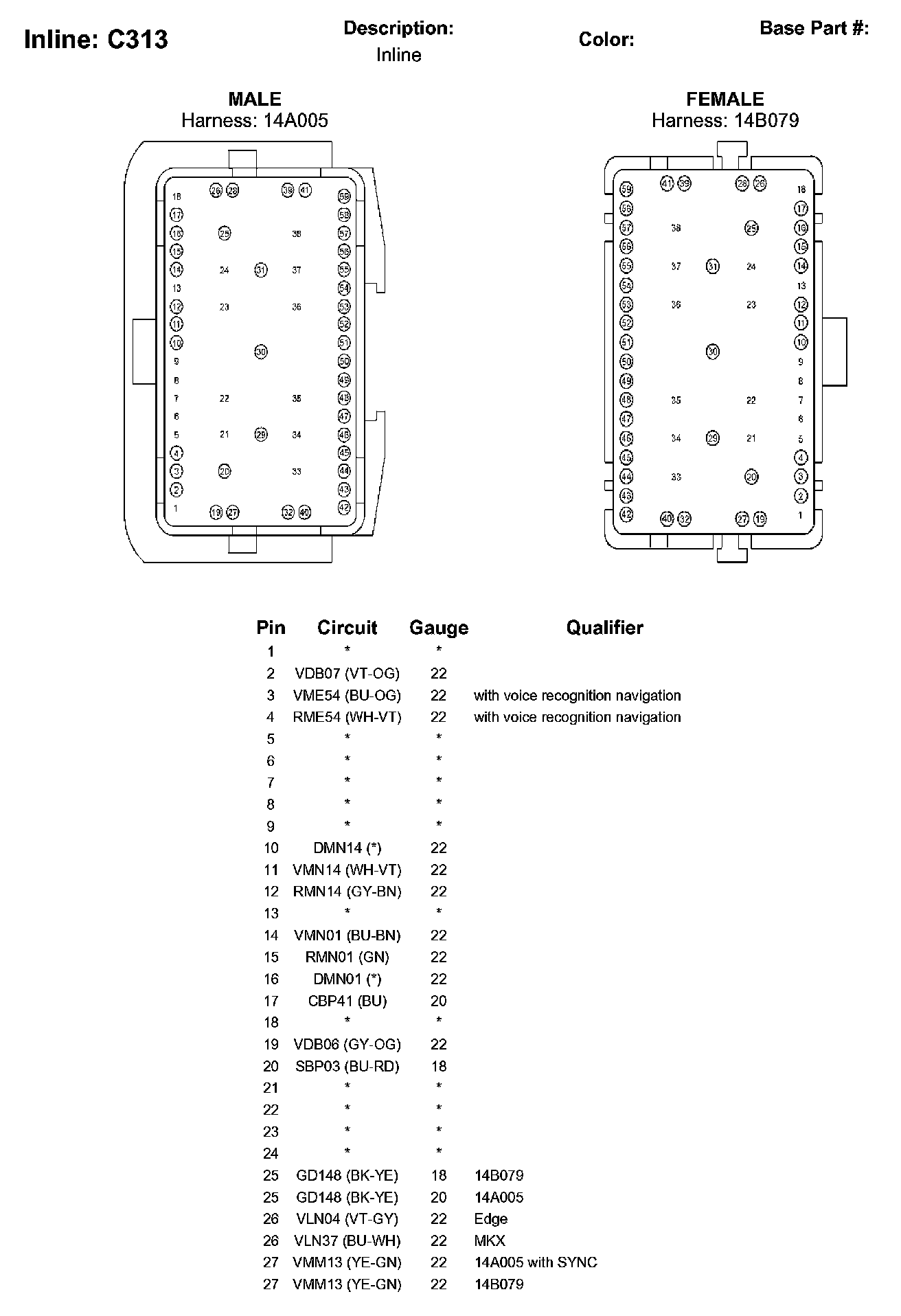

Part 1:

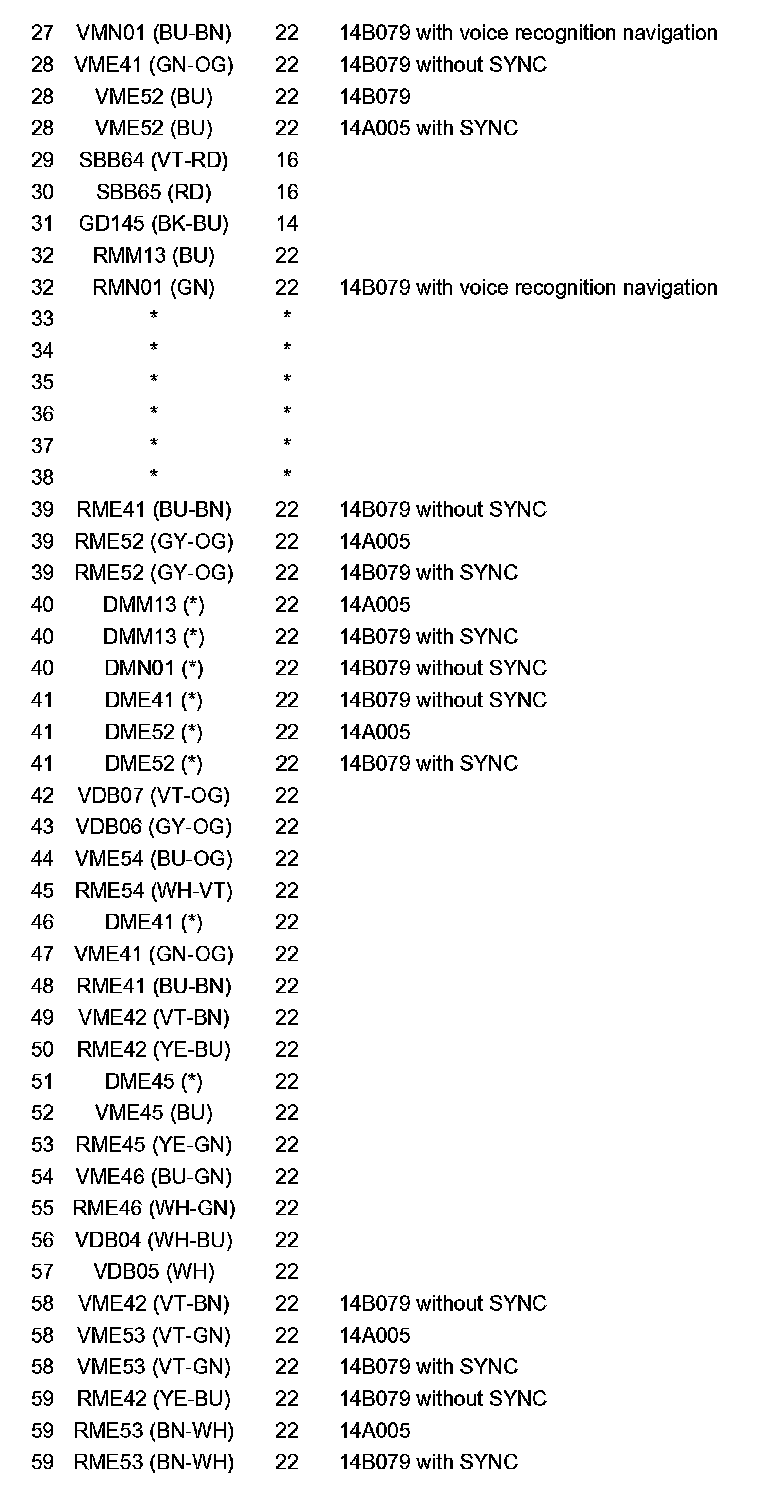

Part 2:
