Firing Order: Specifications

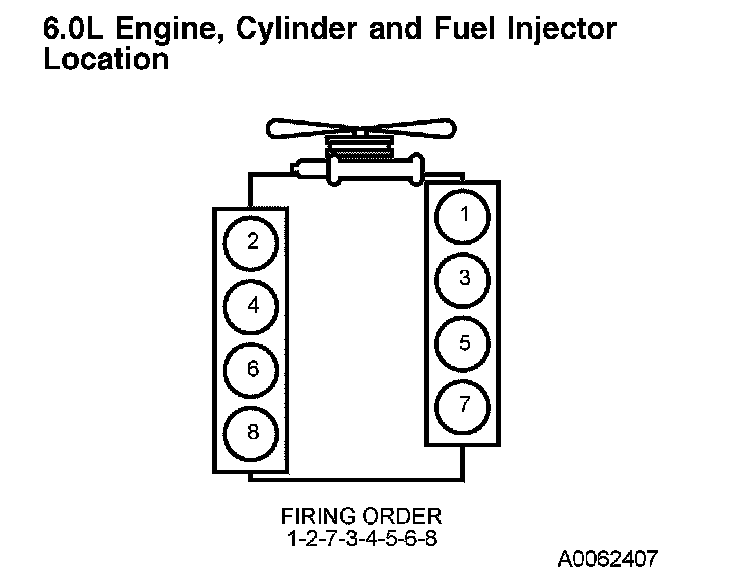

6.0L Engine, Cylinder And Fuel Injector Location:





Firing Order 1-2-7-3-4-5-6-8
