TorqShift
TorqShift
Transmission

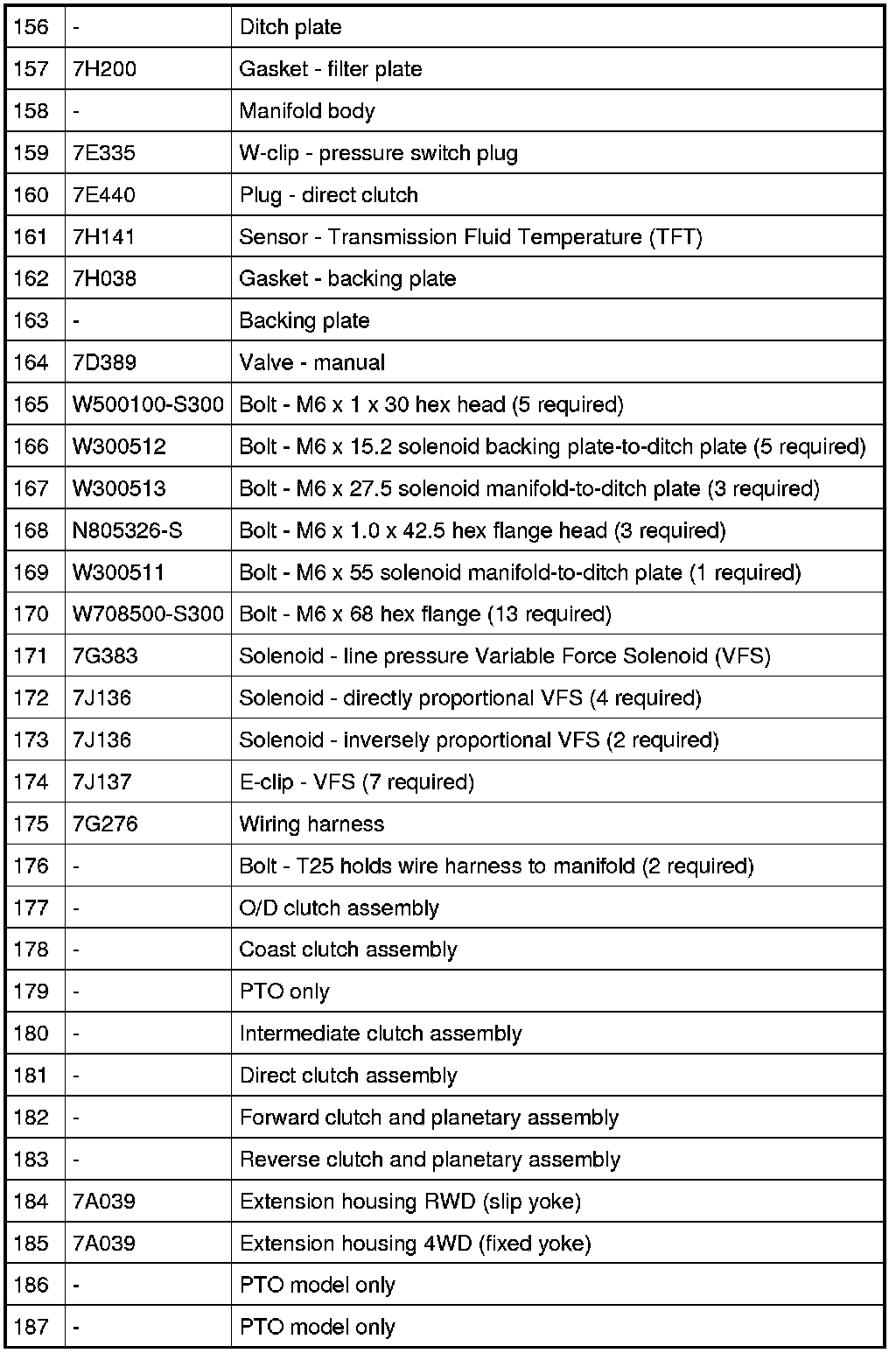

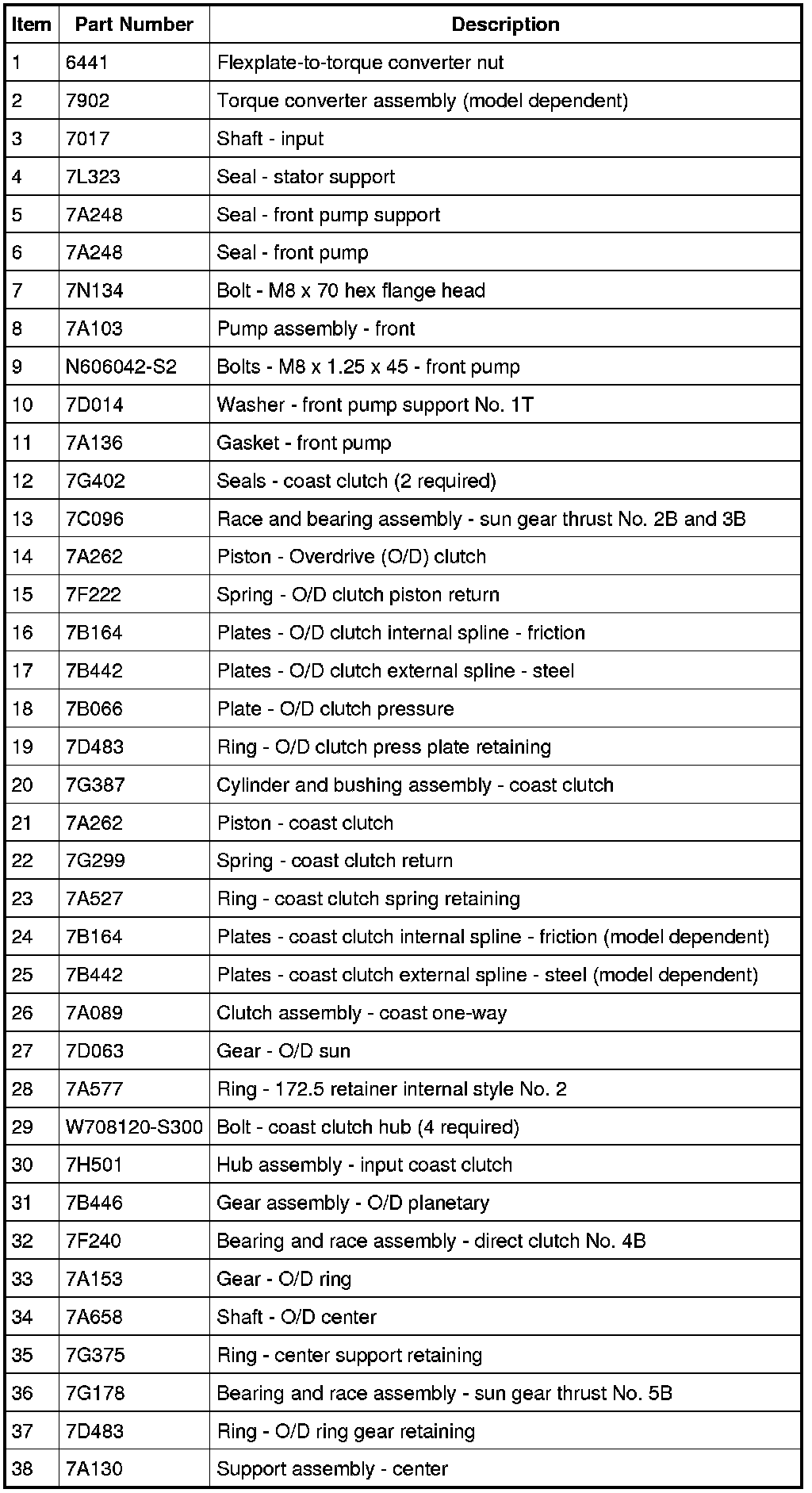

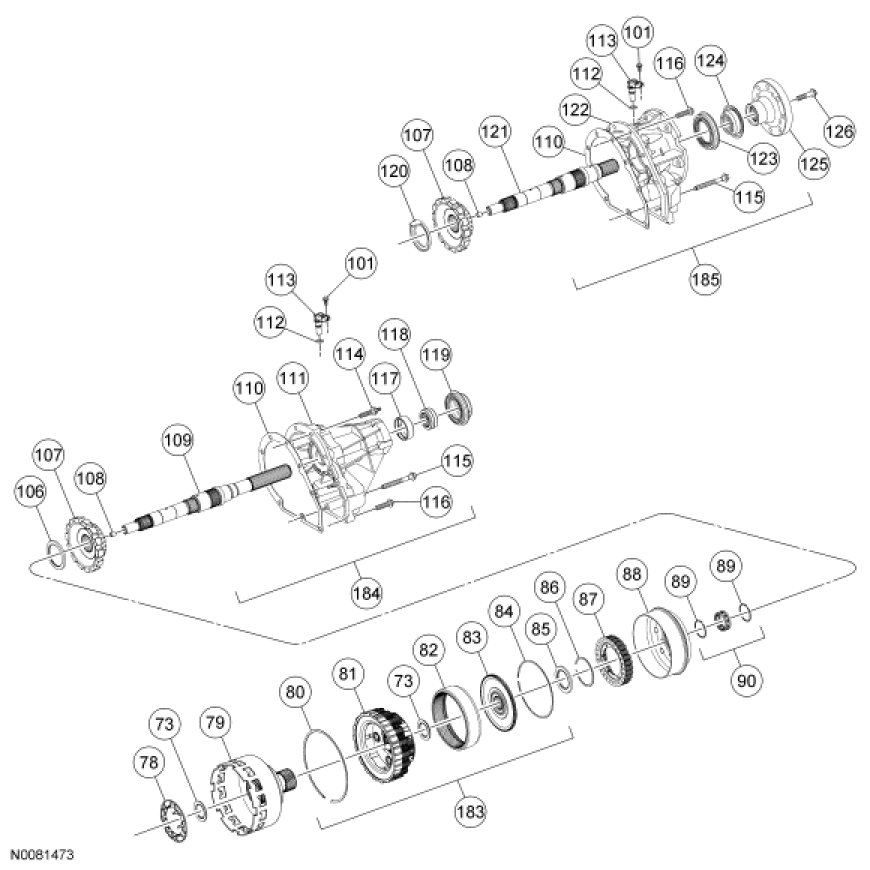

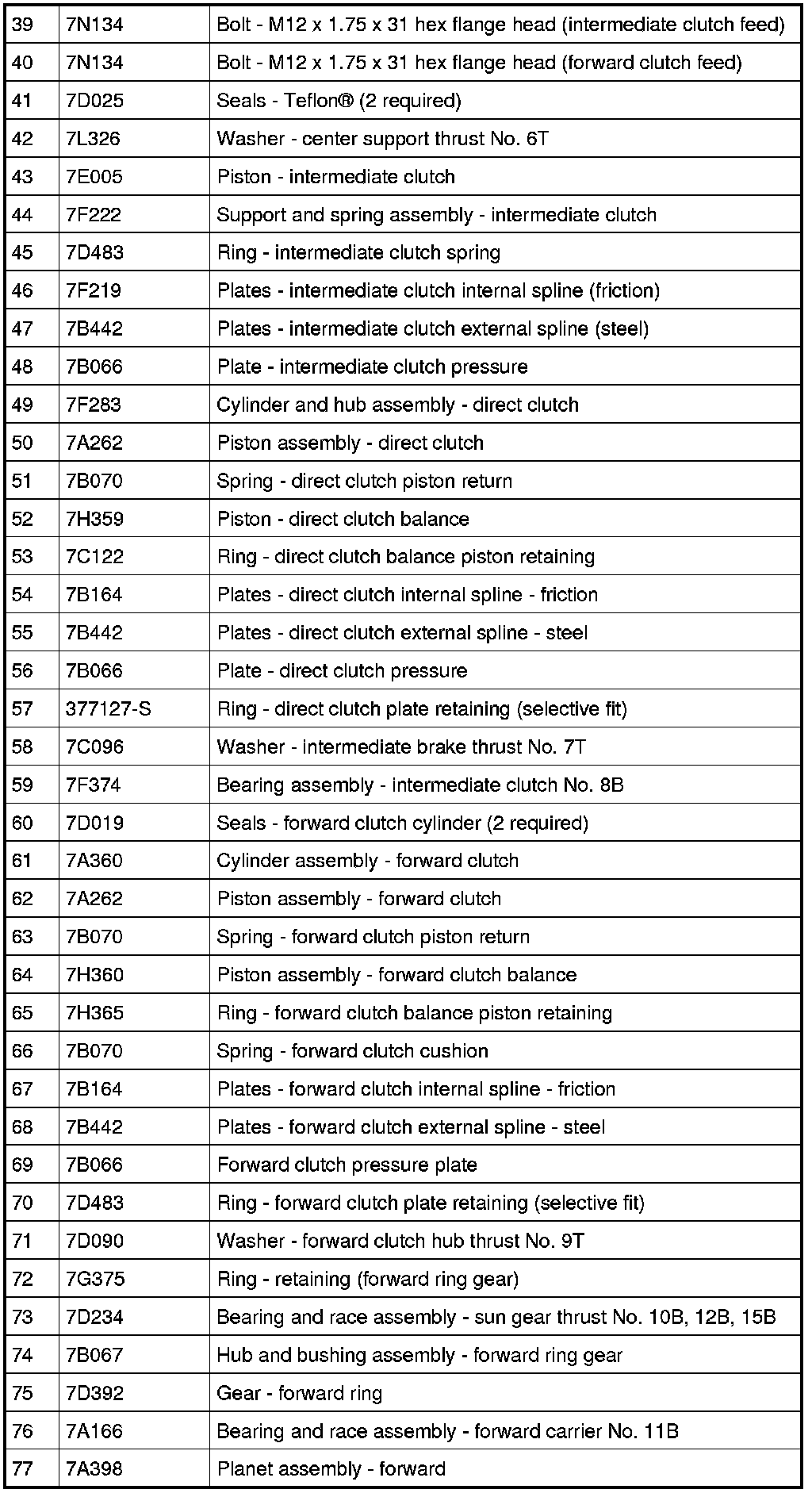

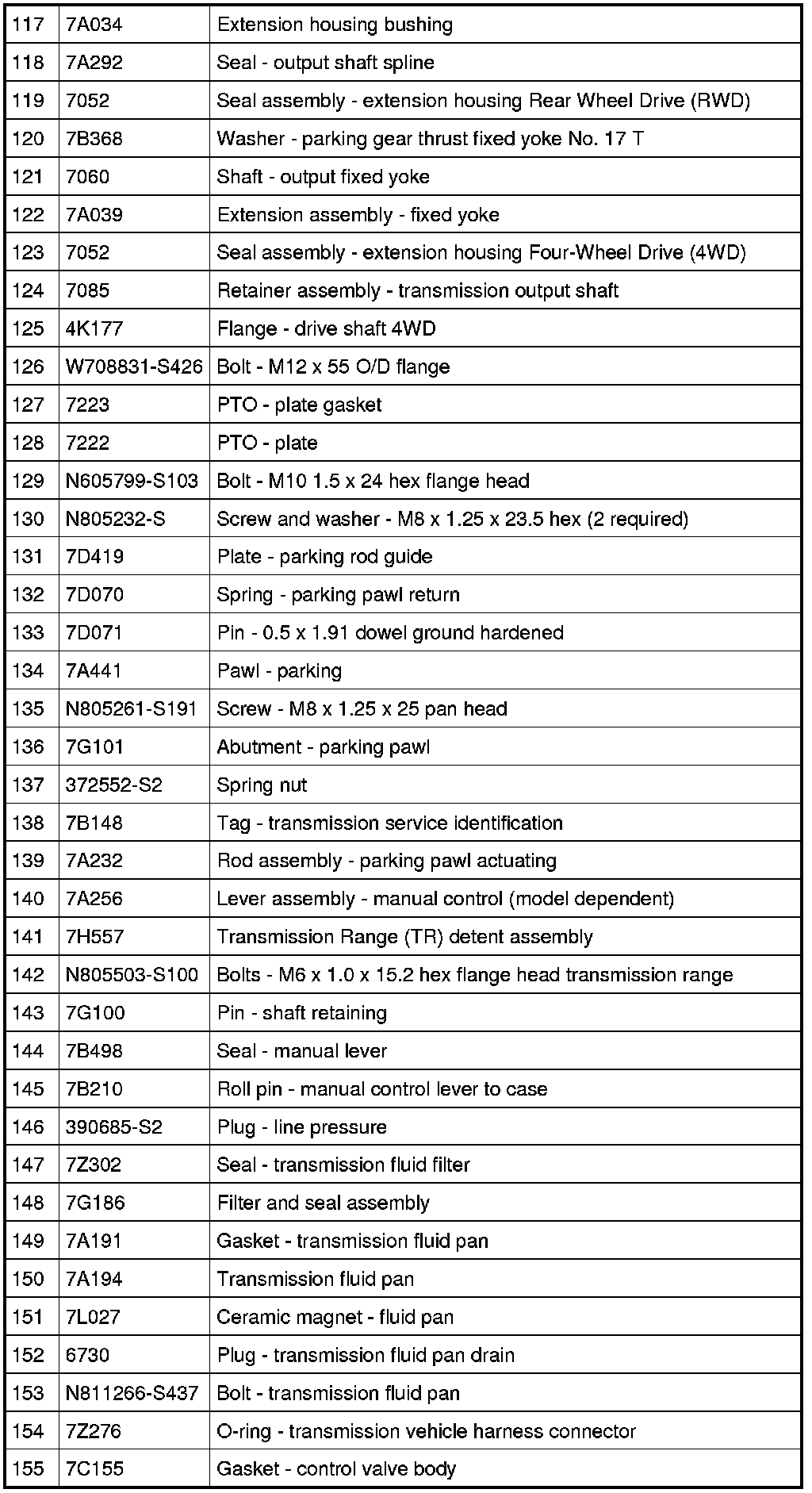

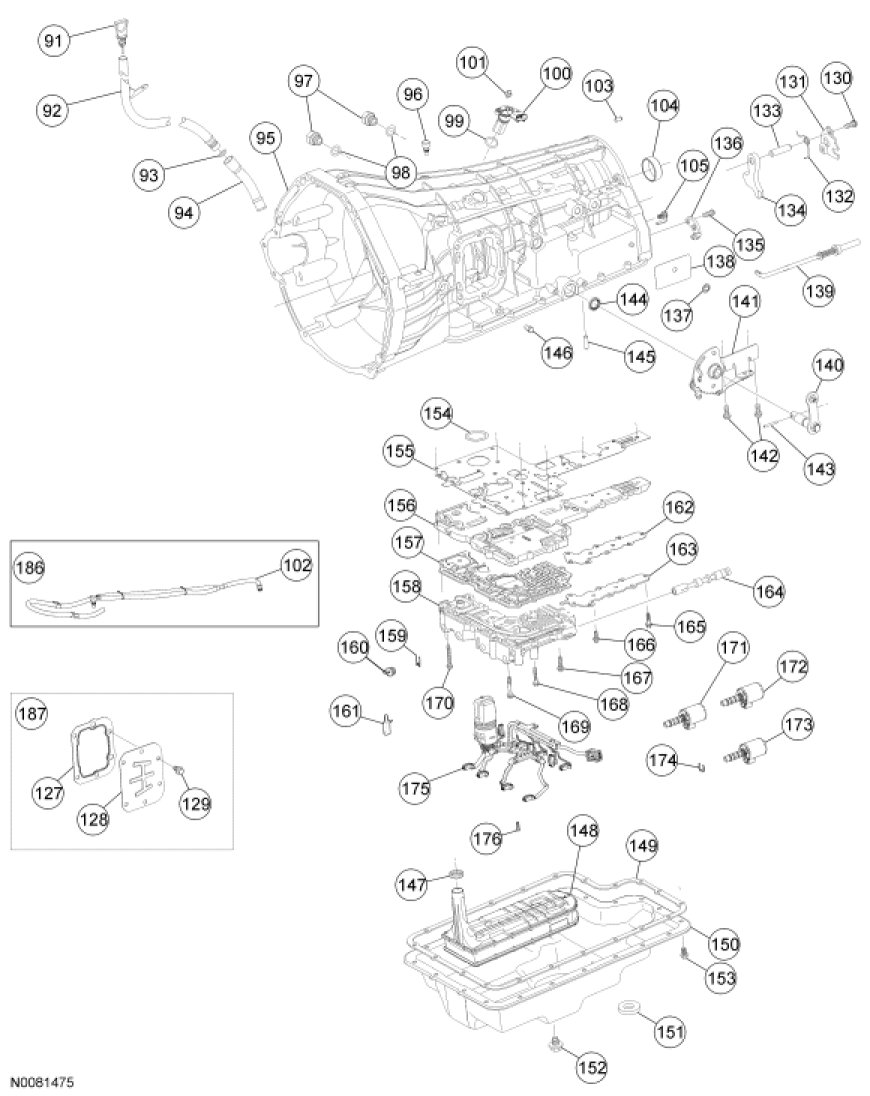

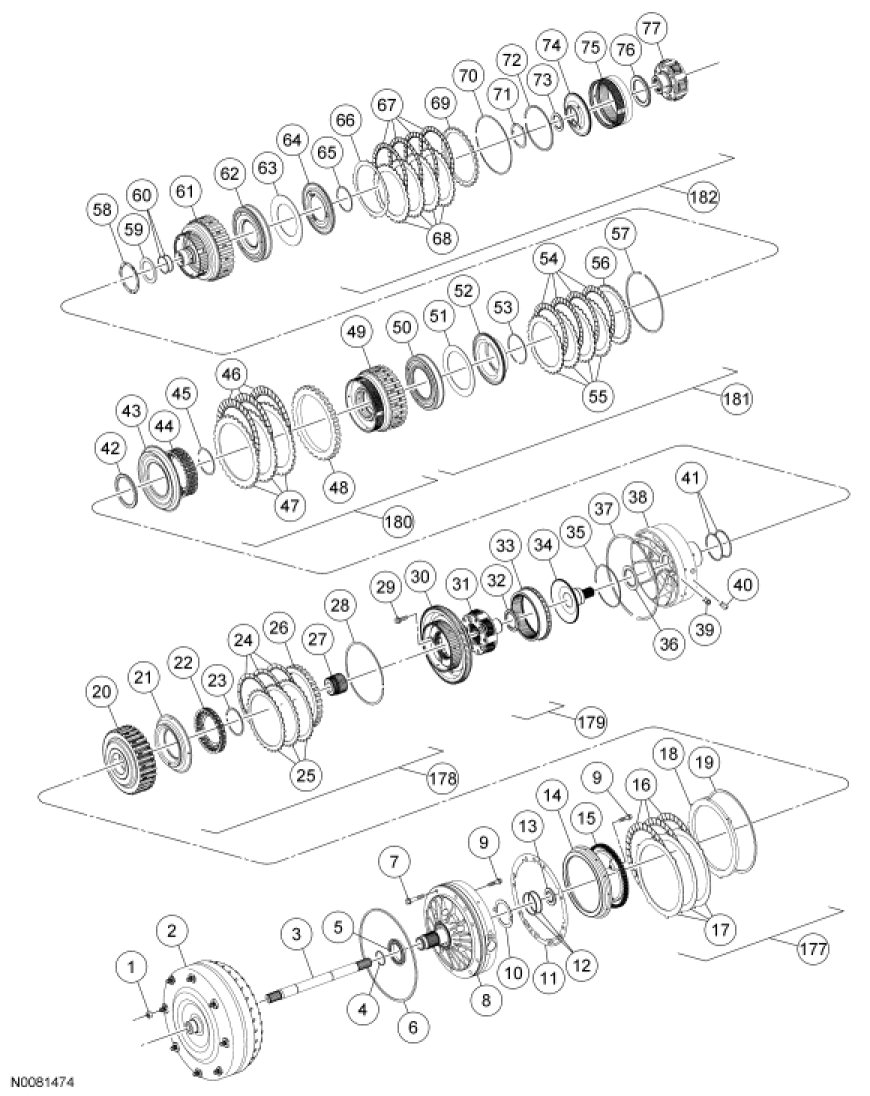

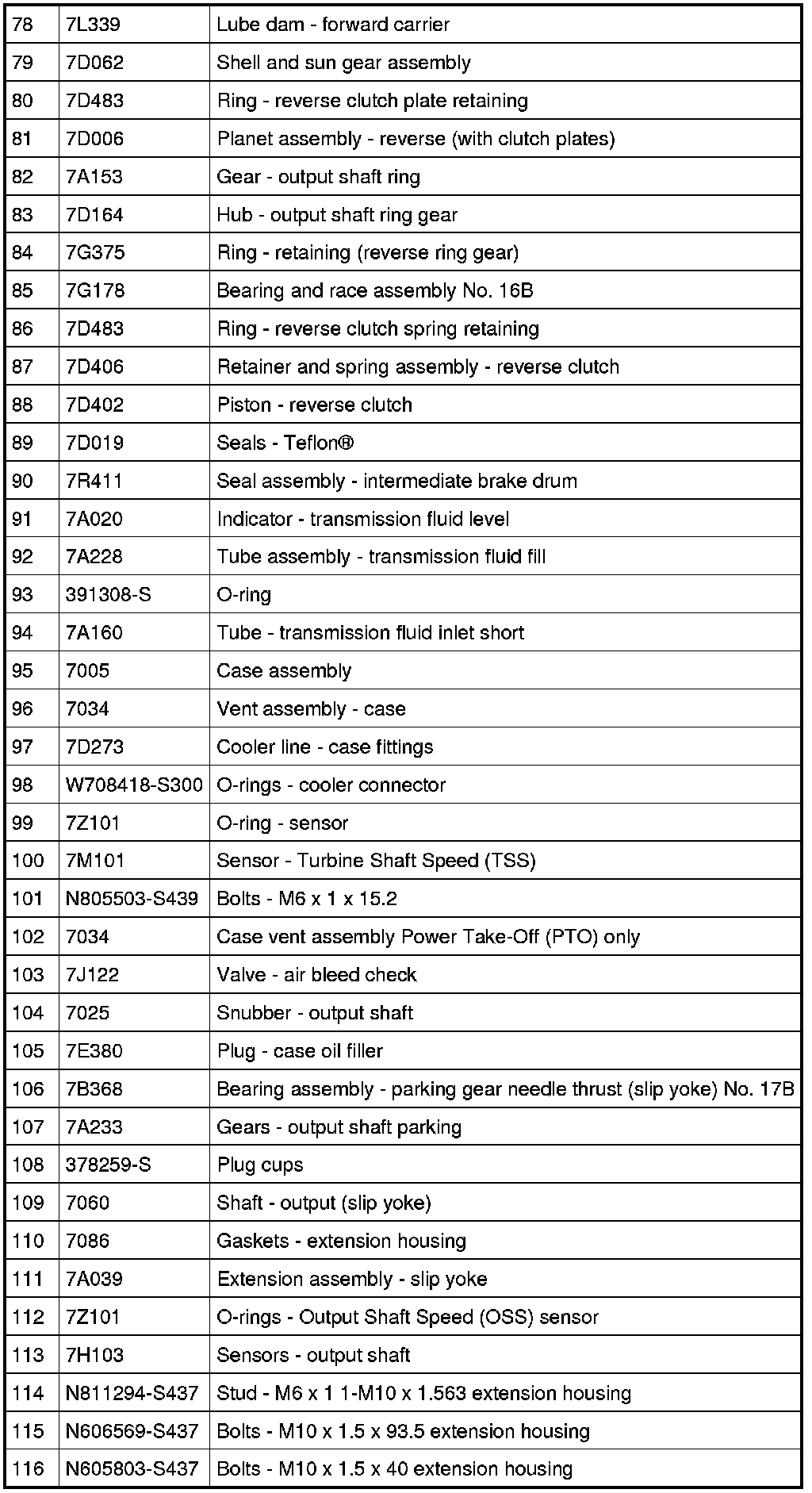

Transmission, Disassembled View
Transmission, Disassembled View (Part 1):
Transmission, Disassembled View (Part 2):
Transmission, Disassembled View (Part 3):
