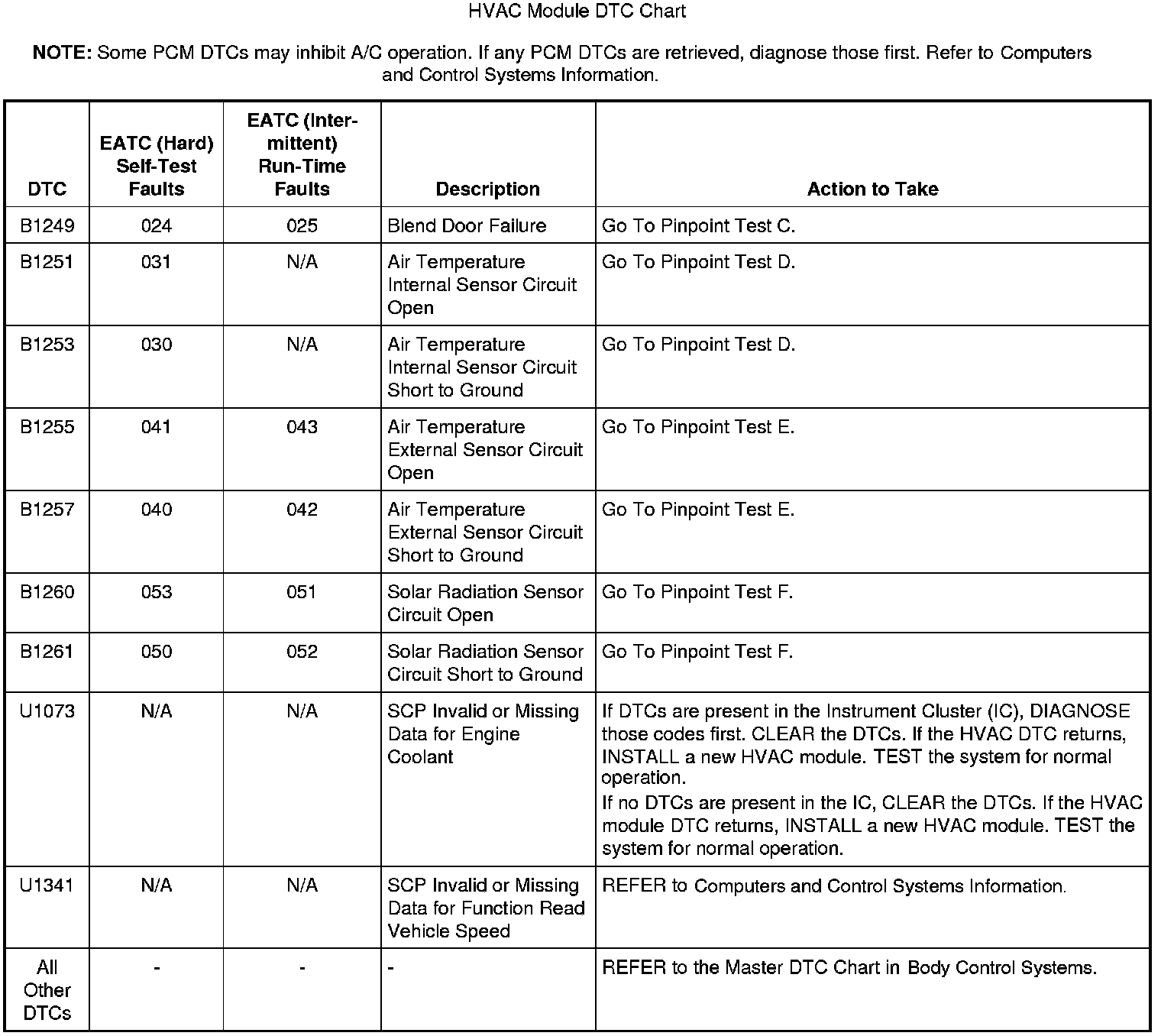

HVAC Module DTC Chart
HVAC Module DTC Chart
Climate Control System
HVAC Module DTC Chart
B1249-B1261 / U1073-U1341:
