Home >> Ford >> 2008 >> Taurus AWD V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Battery Junction Box

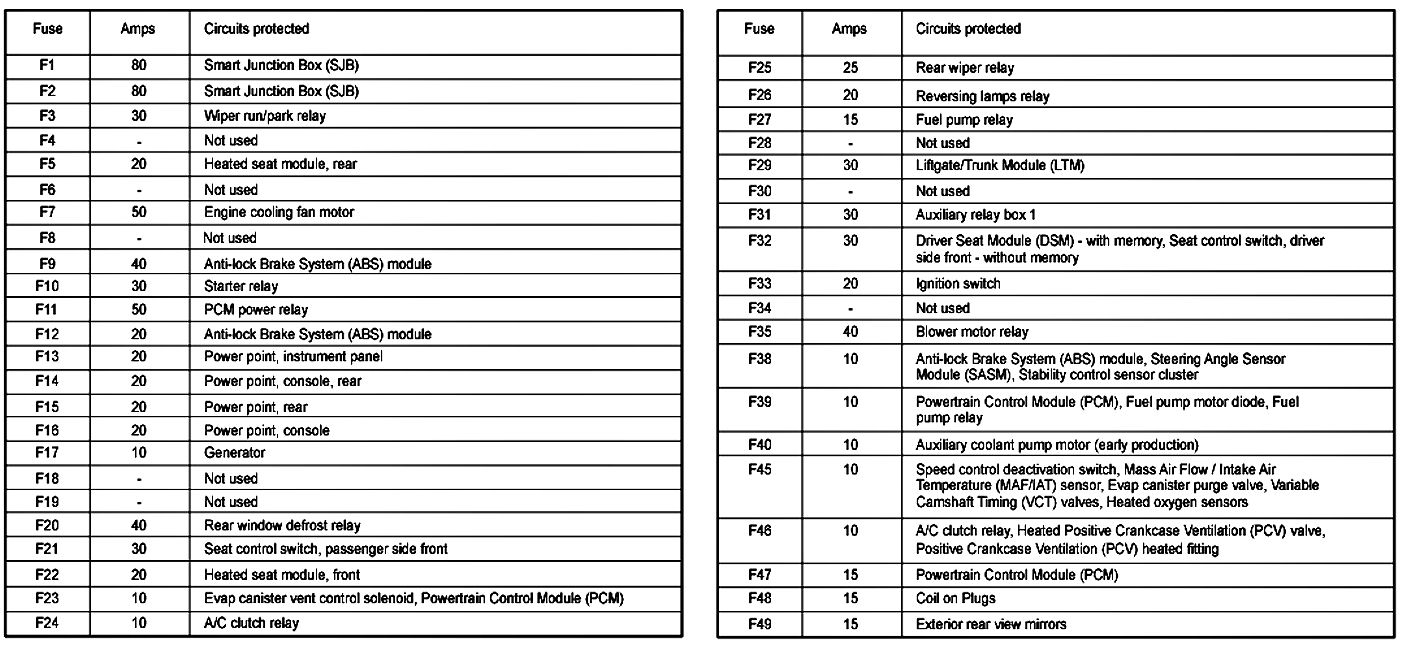

Battery Junction Box













Note: The Battery Junction Box is located in the engine compartment.
