Drive Belt: Diagrams

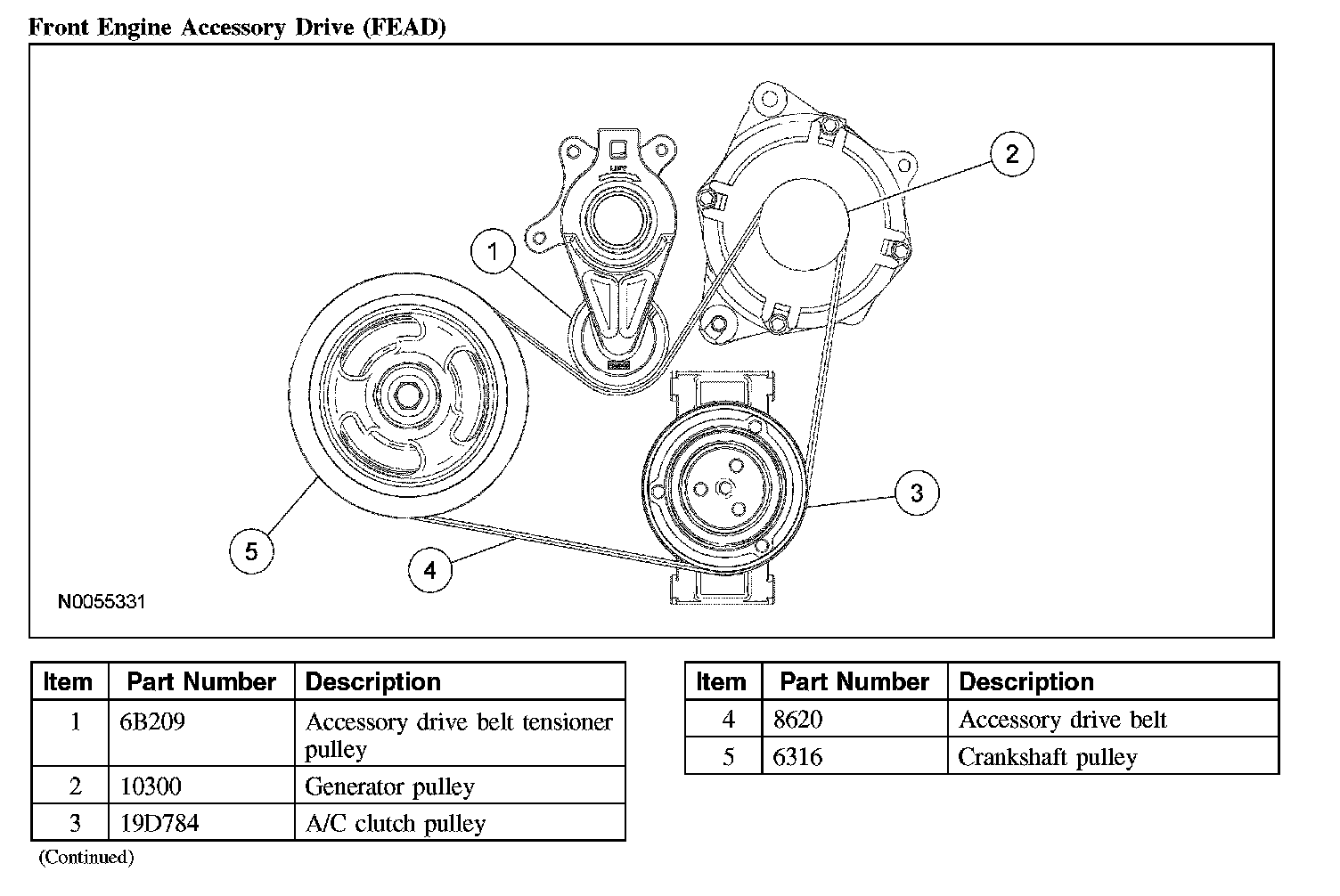

Front Engine Accessory Drive (FEAD)
Front Engine Accessory Drive (FEAD):

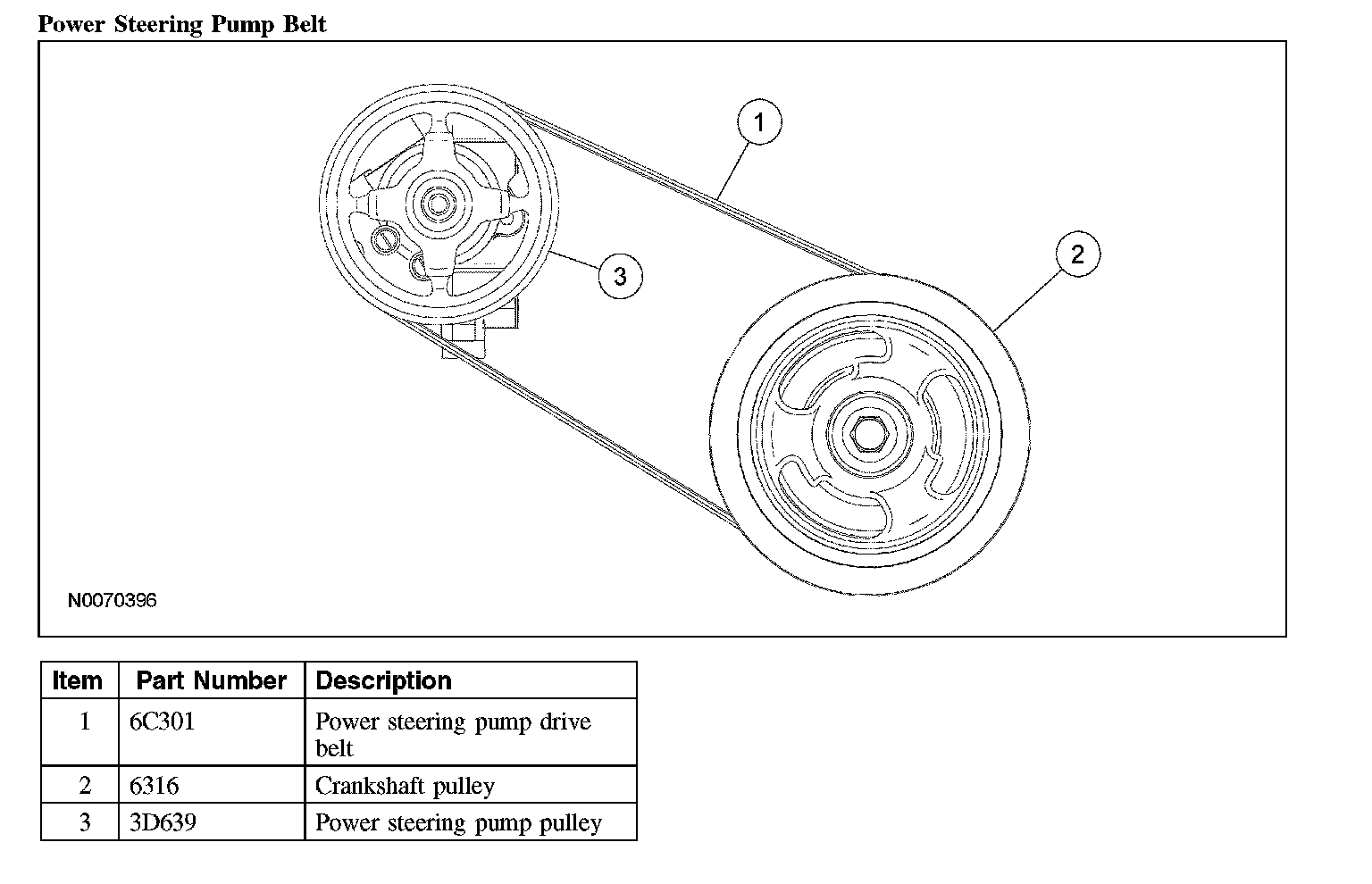

Power Steering Pump Belt
Power Steering Pump Belt:
