Ford
>>
2008
>>
Taurus AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Relay Box
>>
Auxiliary Relay Box 2
Auxiliary Relay Box 2

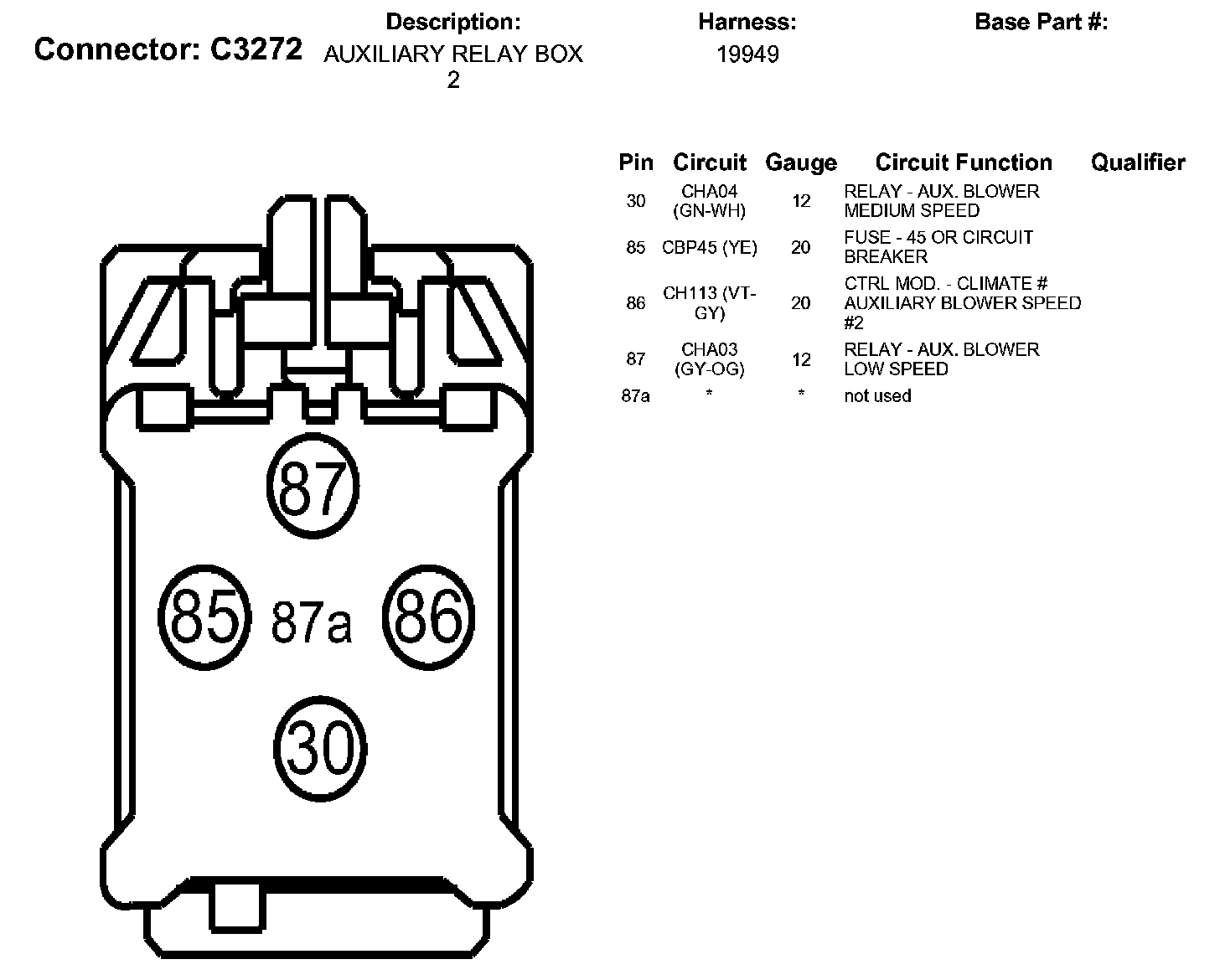

C3272:
