Home >> Ford >> 2008 >> Taurus AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C212

C212

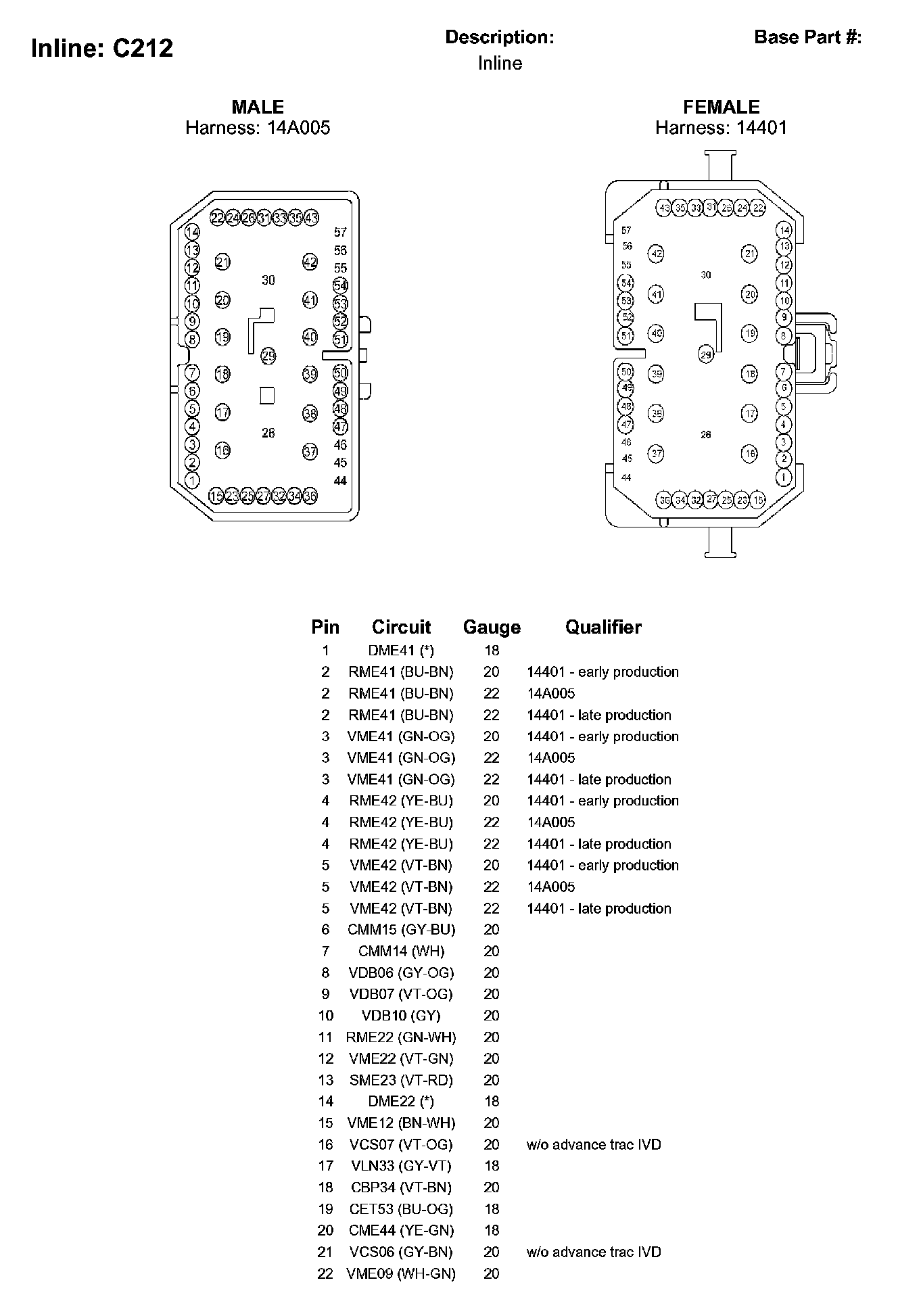

C212 (Part 1):

C212 (Part 2):
