Test N: The Smart Unlock Does Not Operate Correctly

PINPOINT TEST N: THE SMART UNLOCK DOES NOT OPERATE CORRECTLY

Normal Operation
The SJB automatically unlocks all the doors after the doors are locked with a door lock control switch if the key is in the ignition lock cylinder and one of the front doors is ajar.

This pinpoint test is intended to diagnose the following:
- Key-in-ignition switch
- Door ajar switch input
- SJB

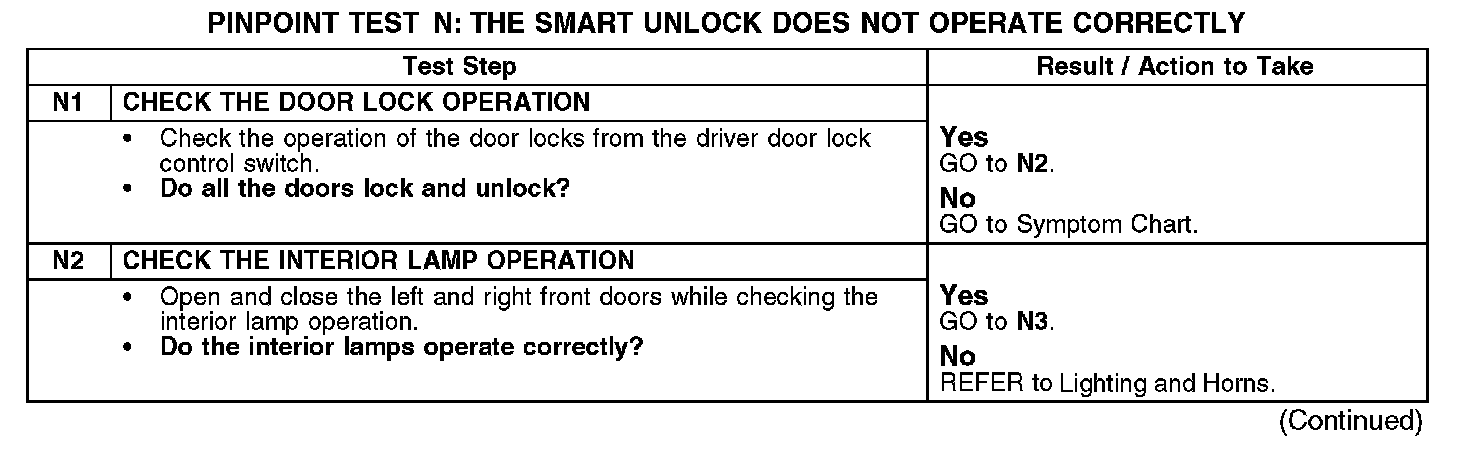

N1-N2:

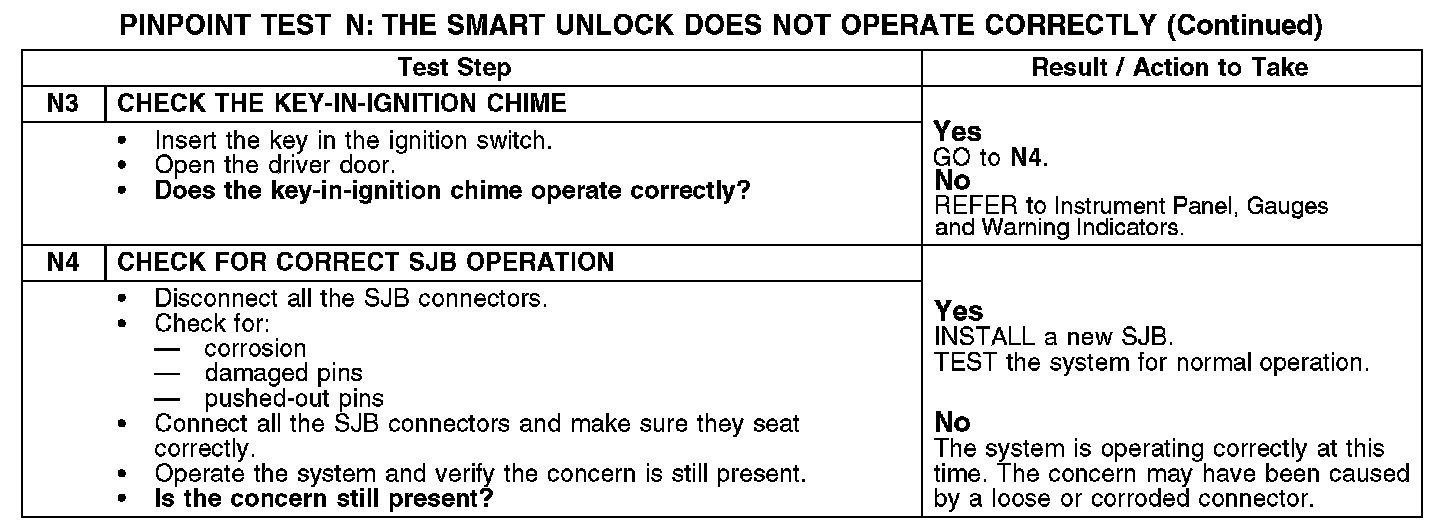

N3-N4:
