Timing Chain

Timing Chain

Removal
1. Remove the engine front cover.

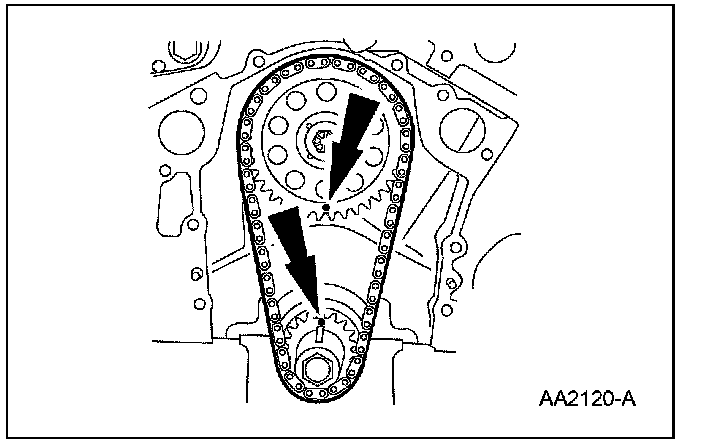

2. Rotate the crankshaft and align the timing marks.

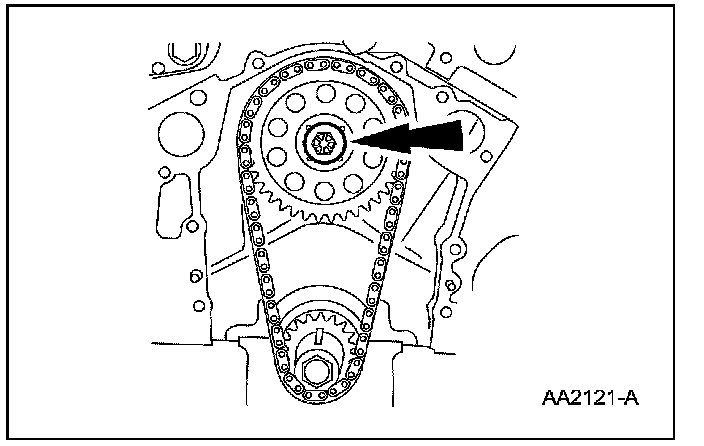

3. Remove the bolt.

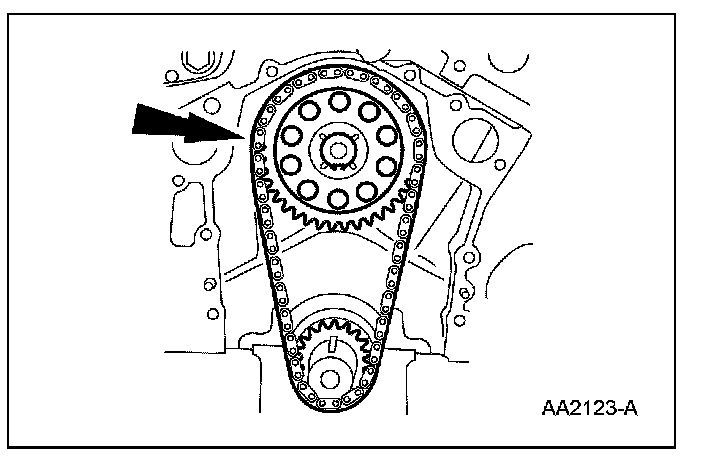

4. Remove the timing chain, the camshaft sprocket and the crankshaft sprocket as an assembly.





Installation

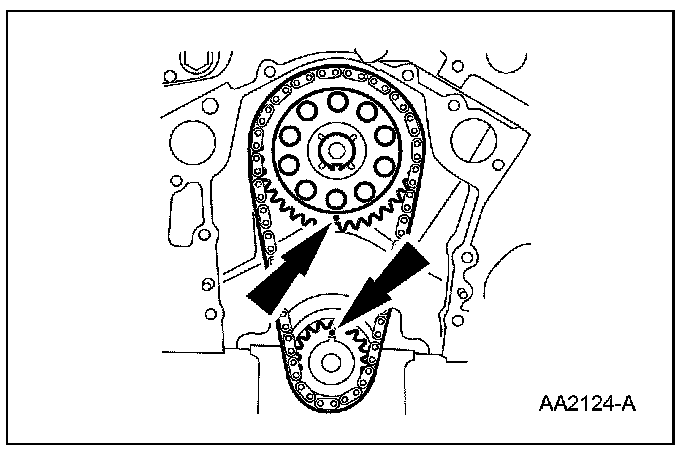

1. Align the timing marks.





2. Install the timing chain, the camshaft sprocket and the crankshaft sprocket as an assembly.

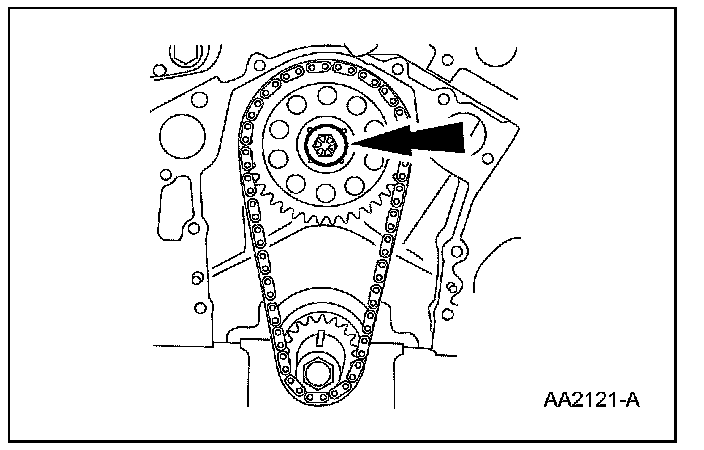

3. Install the bolt.
^ Tighten to 63 Nm (46 lb-ft).





4. Install the engine front cover.
