Home >> Ford >> 2008 >> Ranger 2WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Switch

Ignition Switch

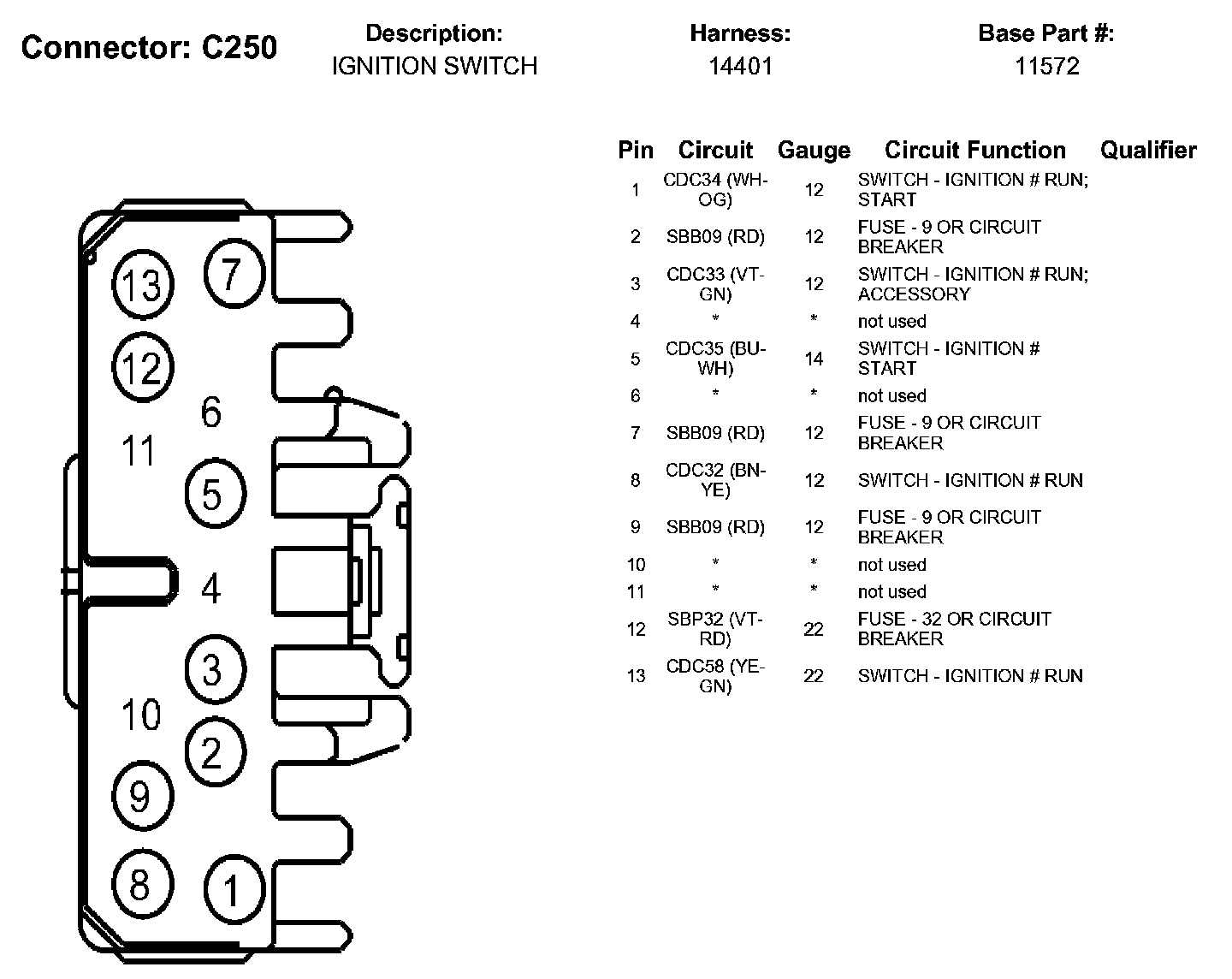

C250:
