Power Mirror Switch: Service and Repair

EXTERIOR MIRROR CONTROL SWITCH

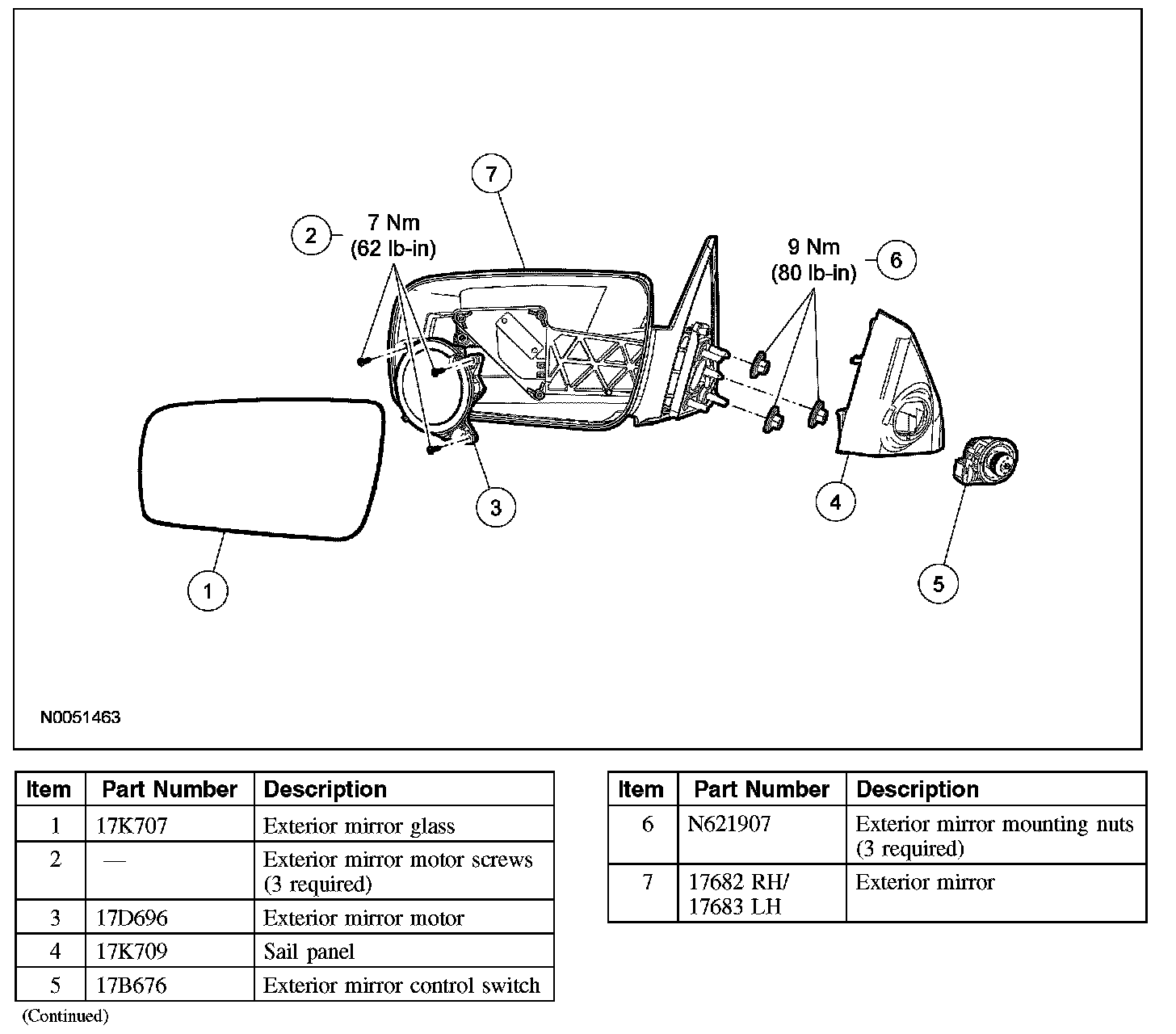

Exploded View







Removal and Installation
1. Remove the sail panel.
- Disconnect the electrical connector.

2. Remove the exterior mirror control switch from the sail panel.
3. To install, reverse the removal procedure.
