Home >> Ford >> 2008 >> Mustang V8-4.6L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams

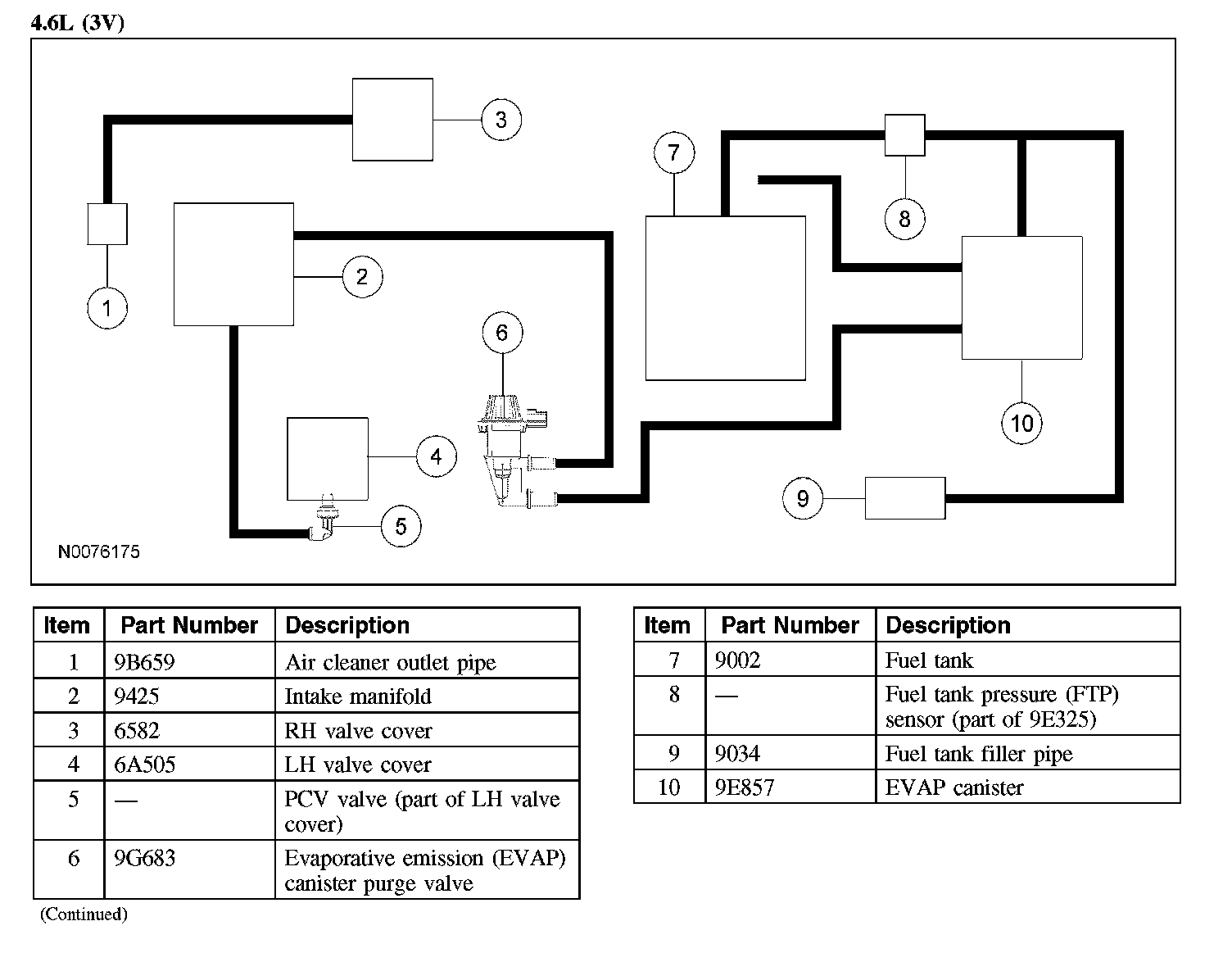

Emission Control Systems: Diagrams

4.6L (3V):
