Home >> Ford >> 2008 >> Mustang V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Transmission Mode Switch, A/T

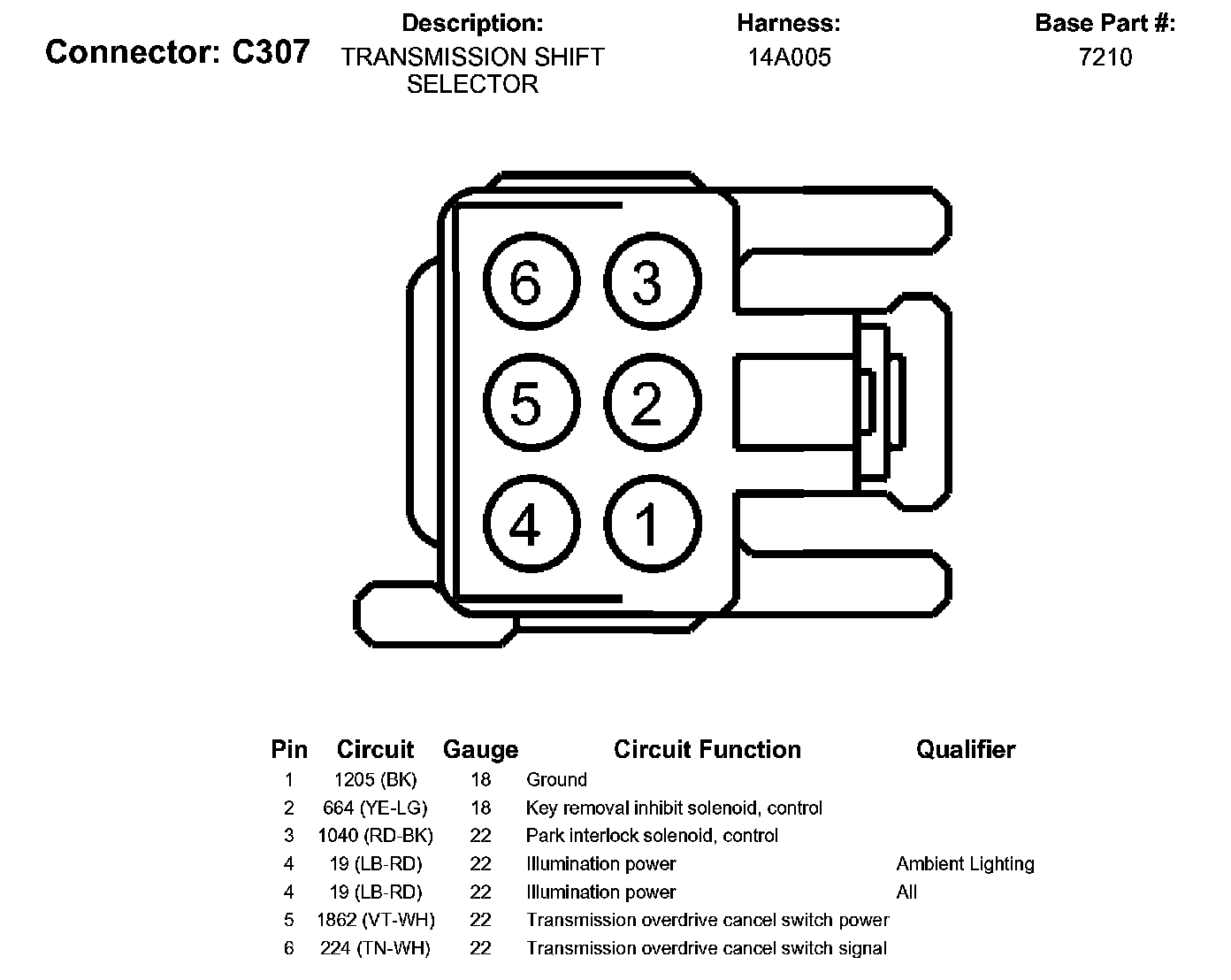

Transmission Mode Switch, A/T

C307:
