Solenoid Operation Chart

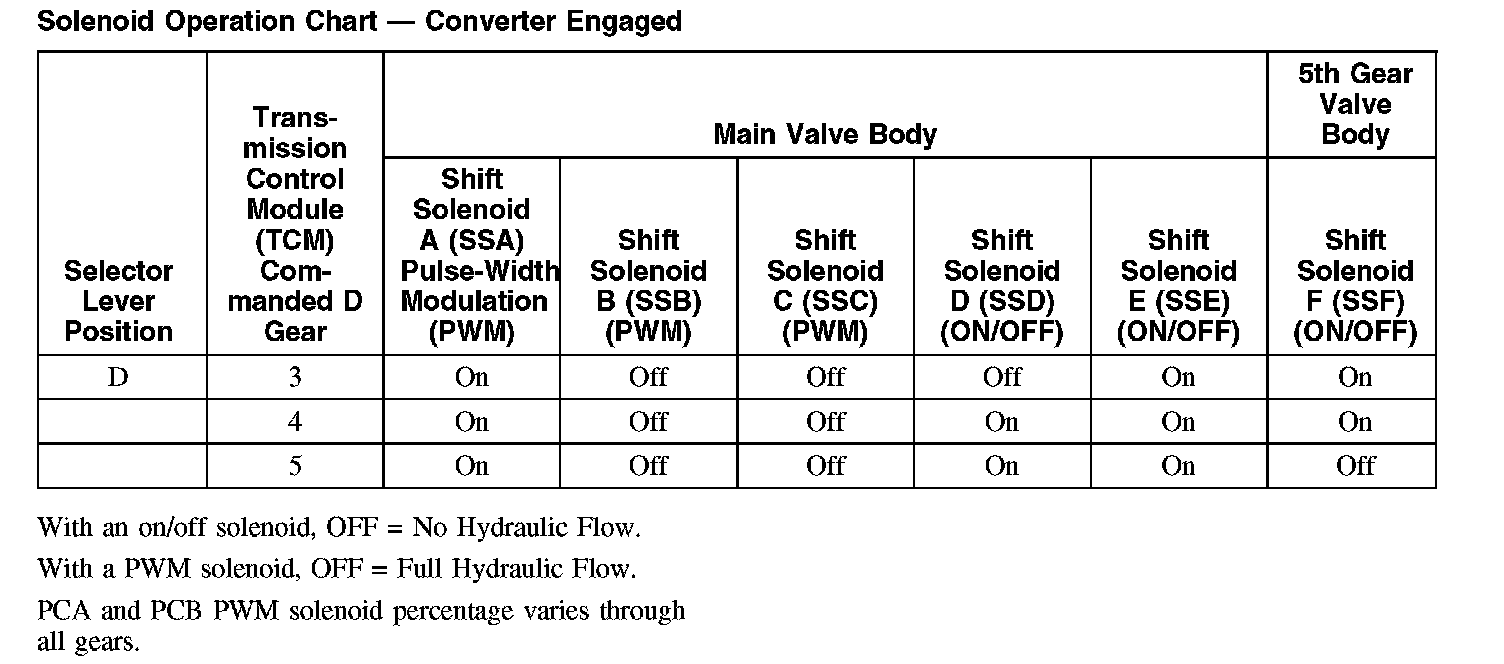

Solenoid Operation Chart - Converter Engaged

Solenoid Operation Chart - Converter Engaged:





Solenoid Operation Chart - Converter Disengaged

Solenoid Operation Chart - Converter Disengaged (Part 1):

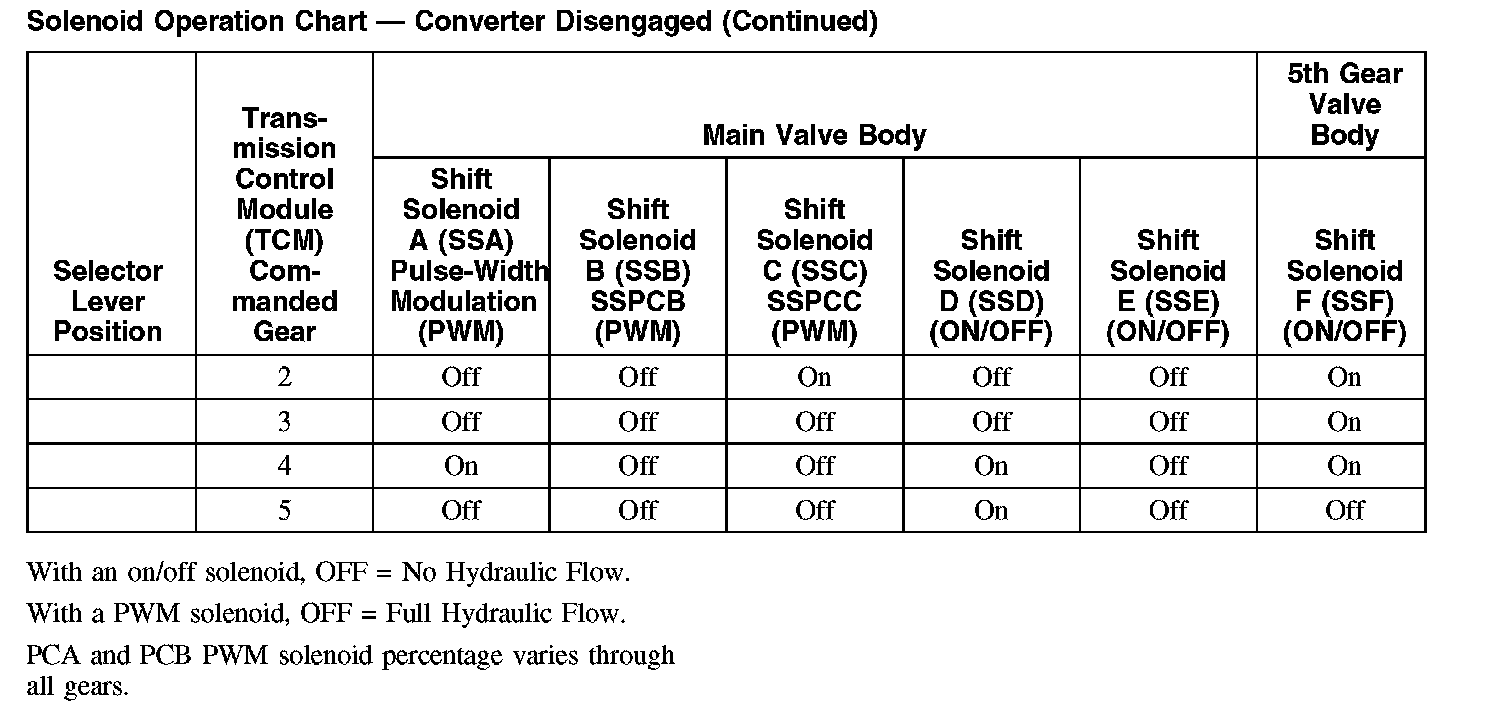

Solenoid Operation Chart - Converter Disengaged (Part 2):
