Oil Separator: Service and Repair

CRANKCASE VENT OIL SEPARATOR

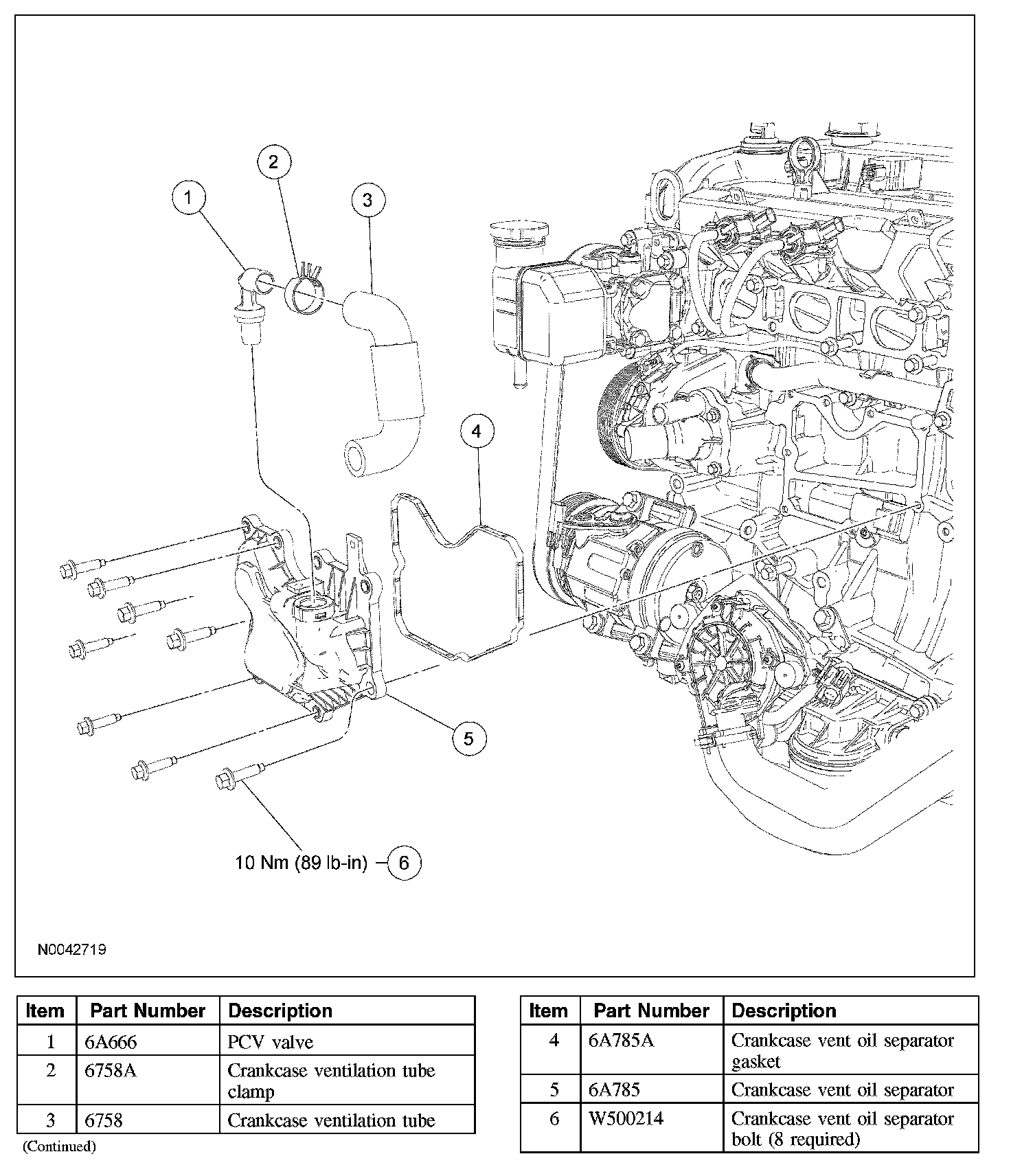

Exploded View







Removal and Installation
1. Remove the intake manifold. Intake Manifold
2. Remove the 8 bolts and the crankcase vent oil separator and gasket.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
- Clean the engine block mating surface.
