Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR

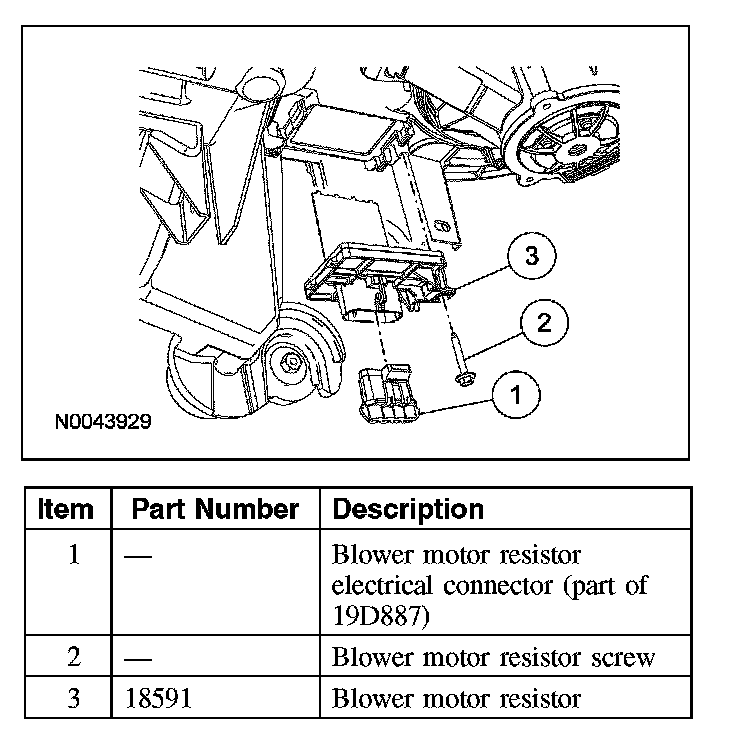

Removal and Installation
1. Disconnect the blower motor resistor electrical connector.
2. Remove the blower motor resistor screw.
3. Remove the blower motor resistor.
4. To install, reverse the removal procedure.
