Home >> Ford >> 2008 >> Fusion AWD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> Power Window Motor, Right Front

Power Window Motor, Right Front

C608:

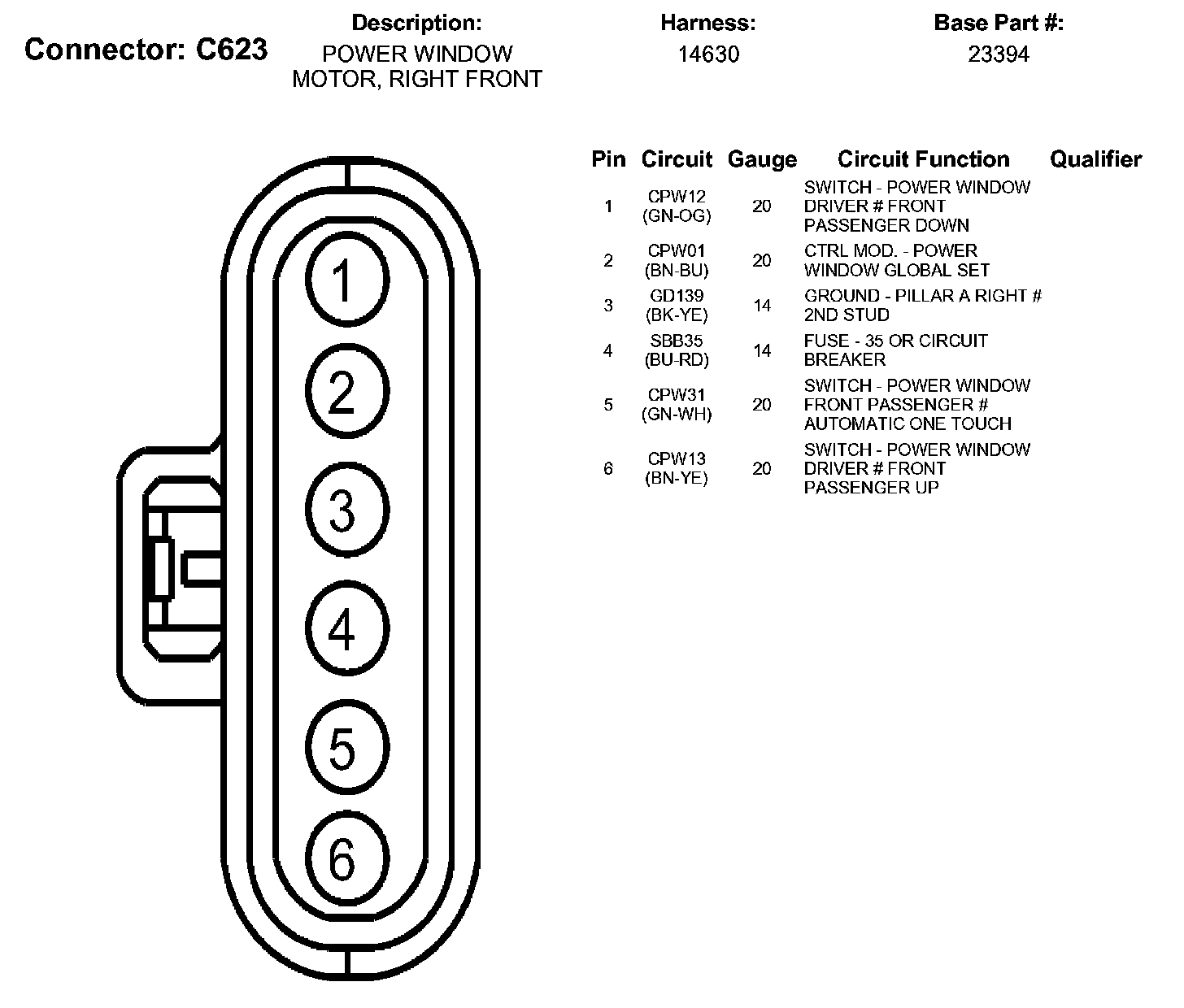

C623:
