Ford
>>
2008
>>
Fusion AWD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch

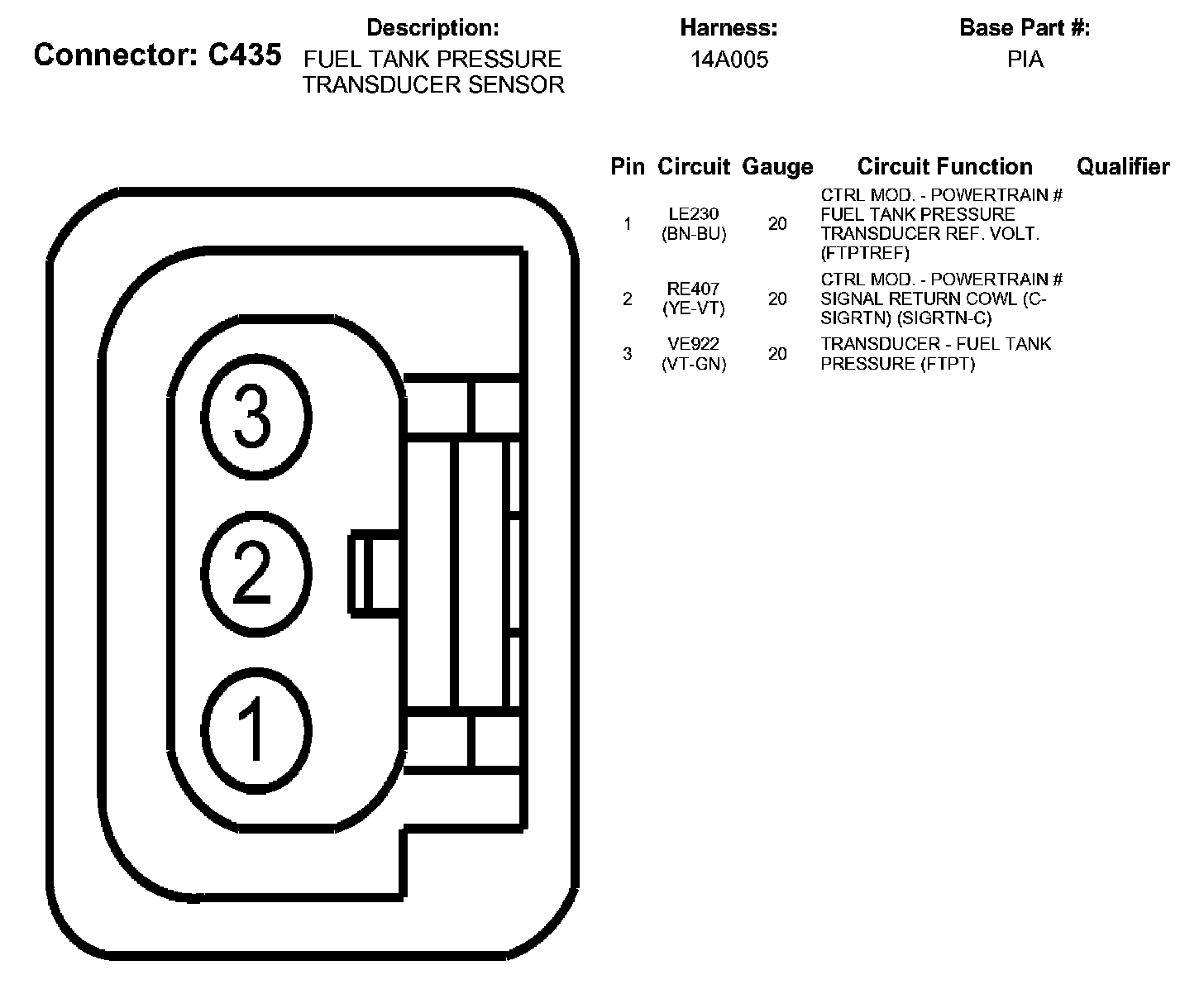

C435:
