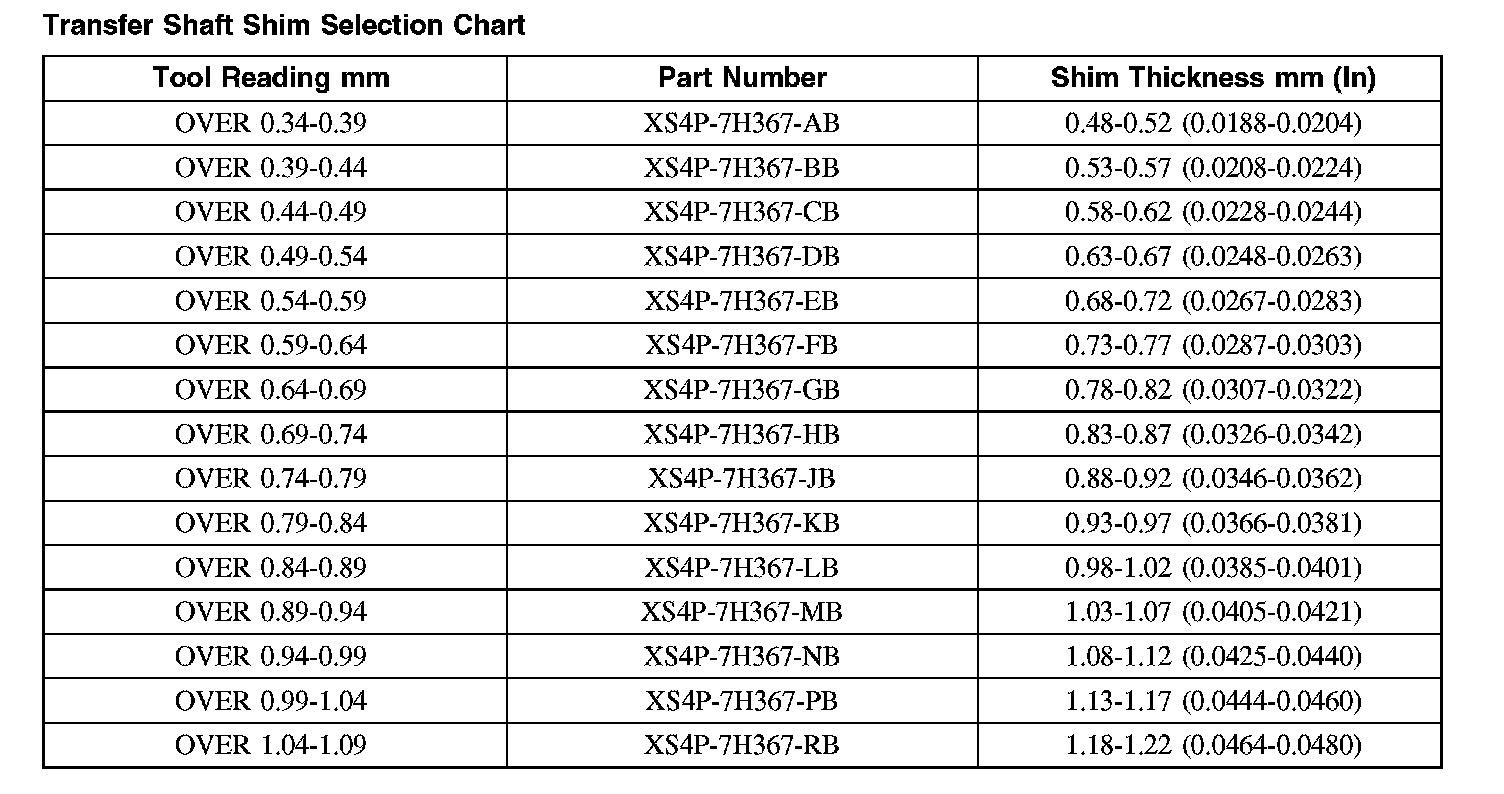

Transfer Shaft Shim Selection Chart

Transfer Shaft Shim Selection Chart

Transfer Shaft Shim Selection Chart (Part 1):




Transfer Shaft Shim Selection Chart (Part 2):
