Home >> Ford >> 2008 >> F 150 4WD V6-4.2L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

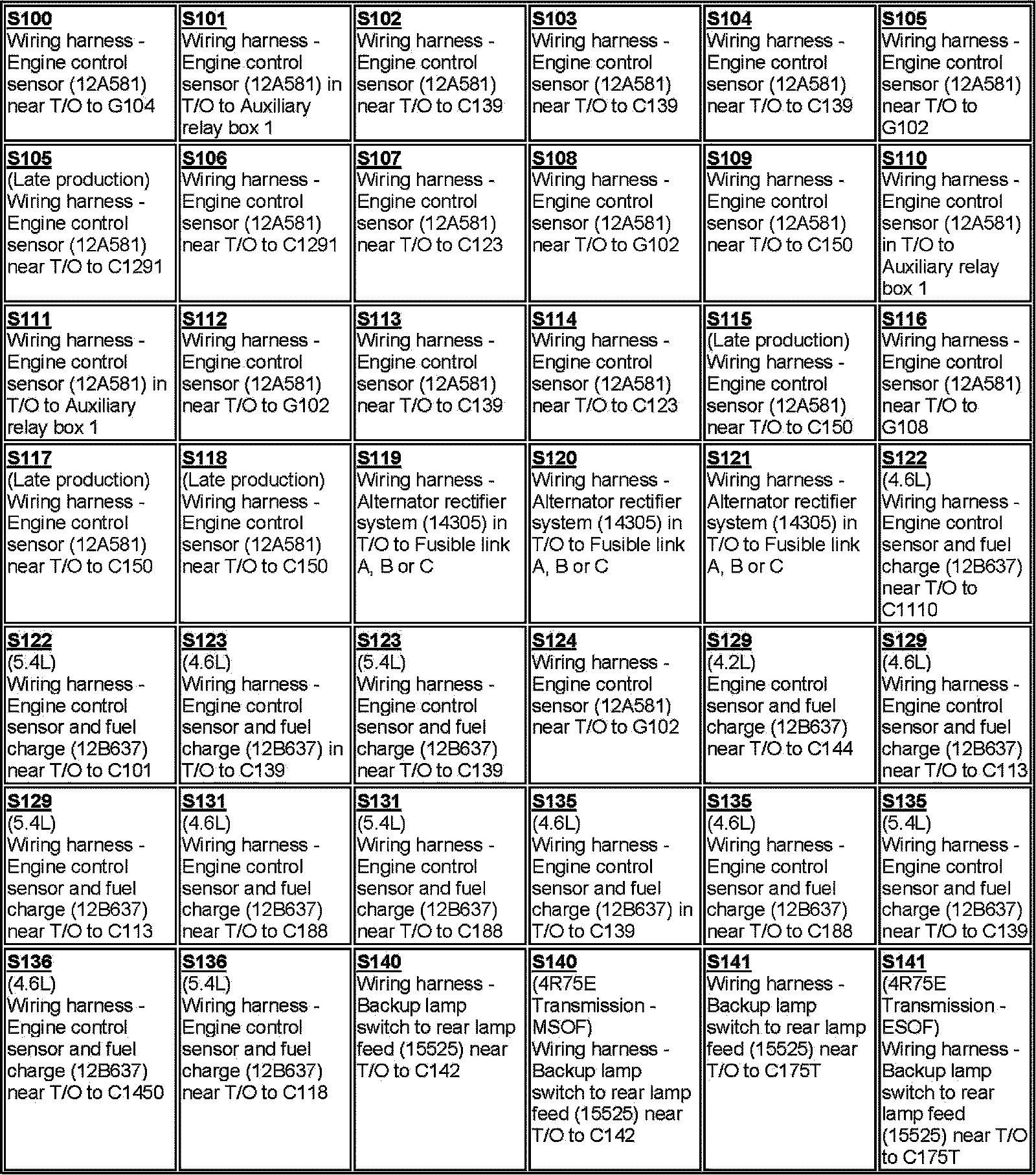

S100-S141:

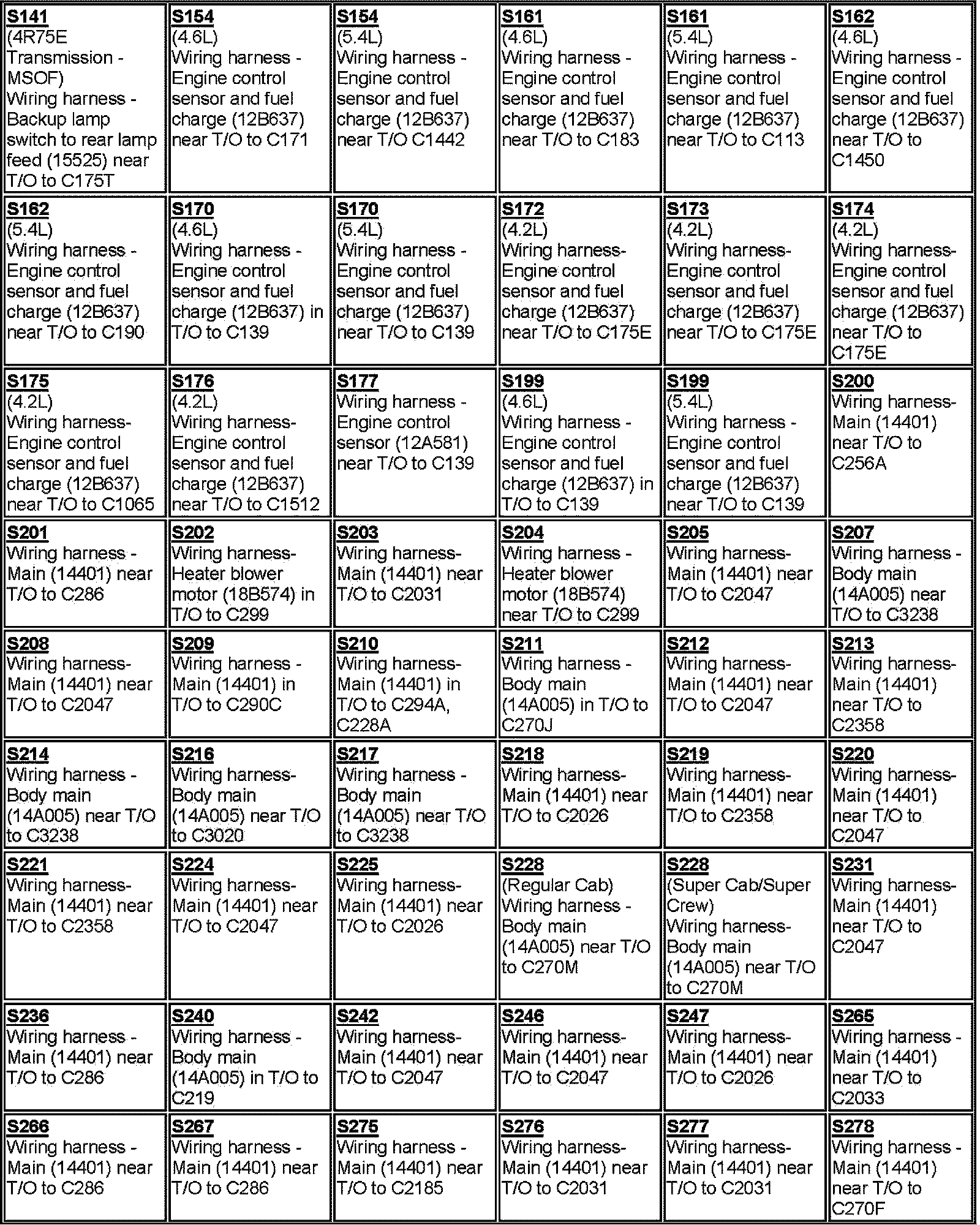

S141-S278:

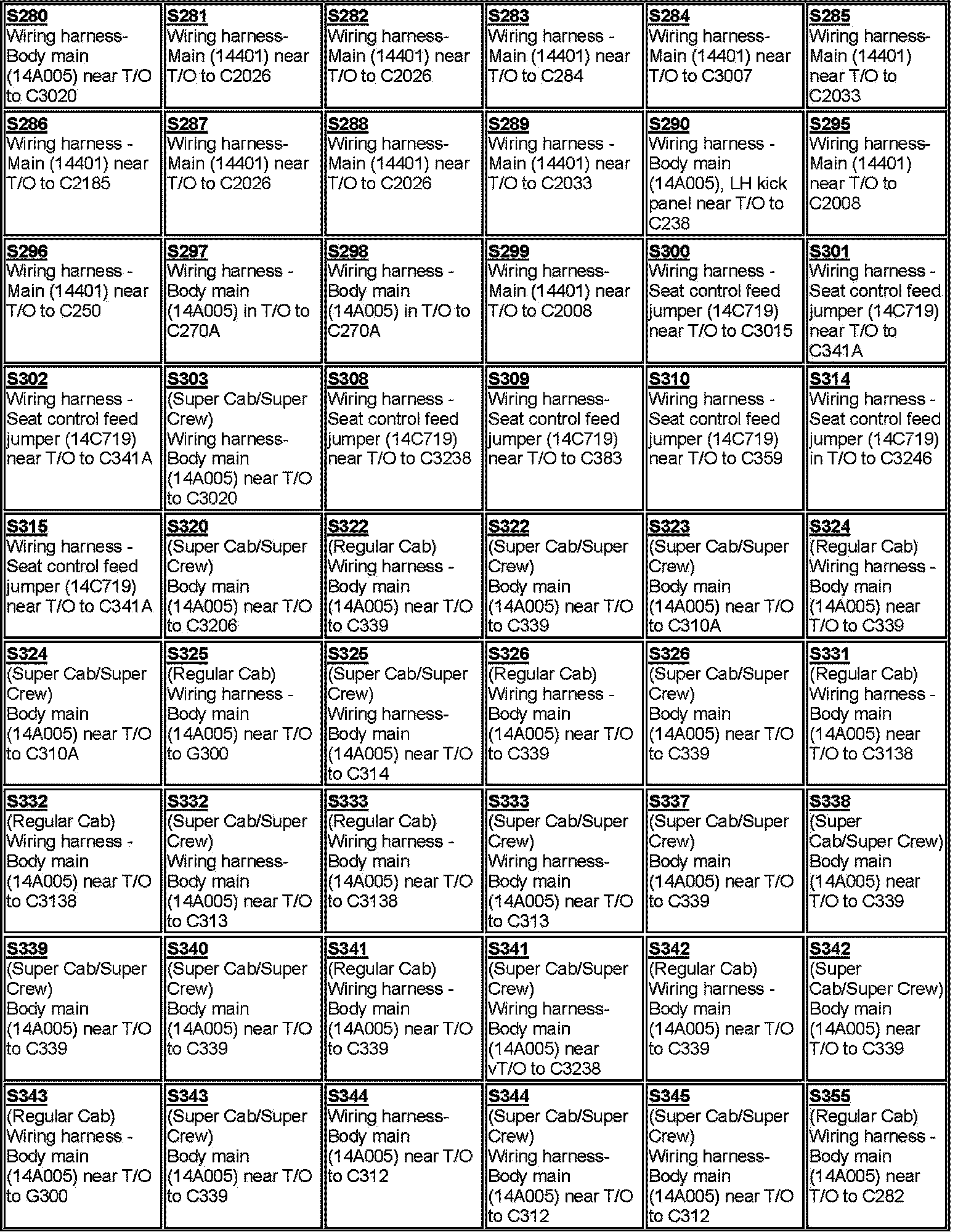

S280-S355:

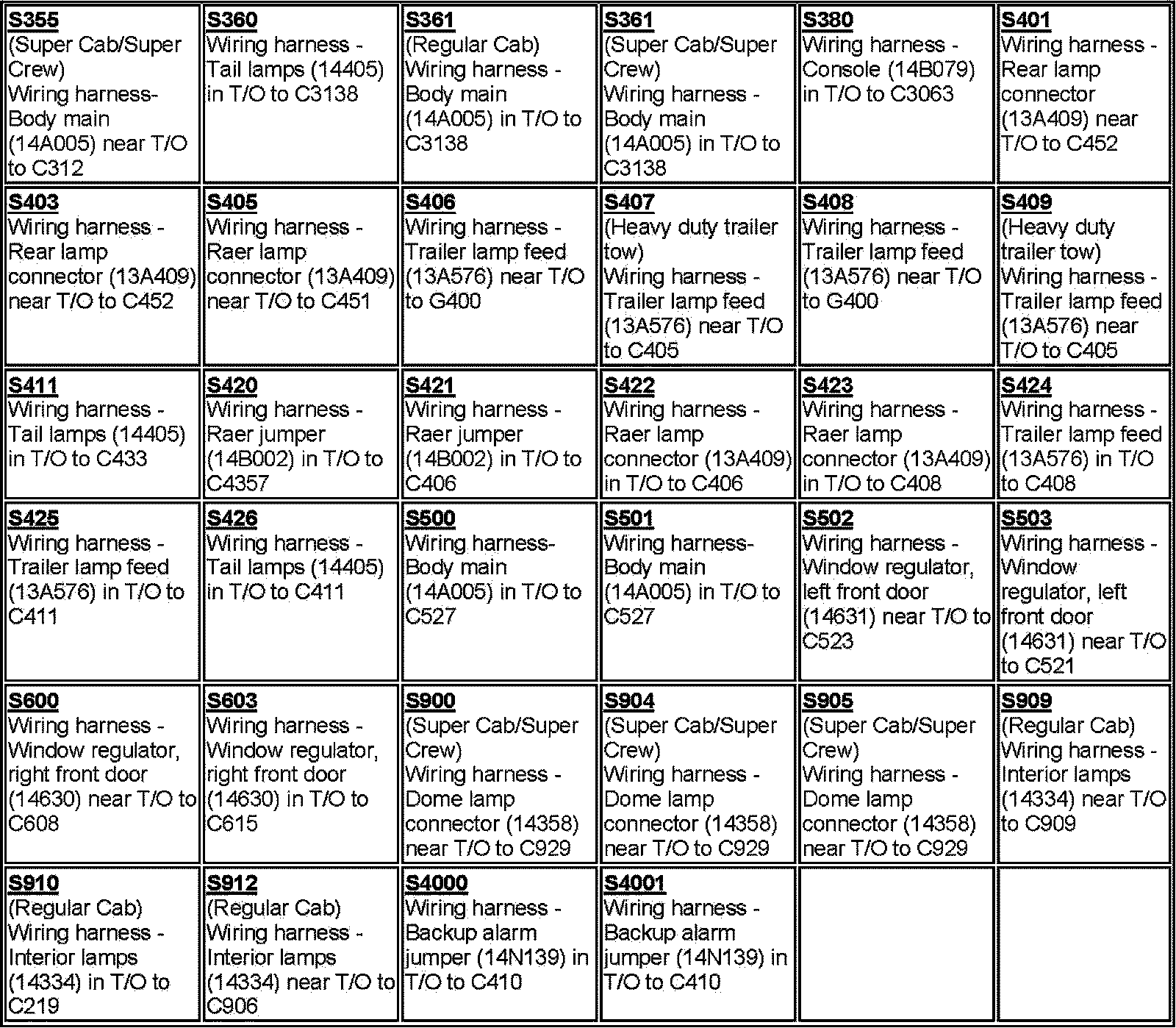

S355-S4001:
