Home >> Ford >> 2008 >> F 150 2WD V6-4.2L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Heated Seat Module, Driver Side Front

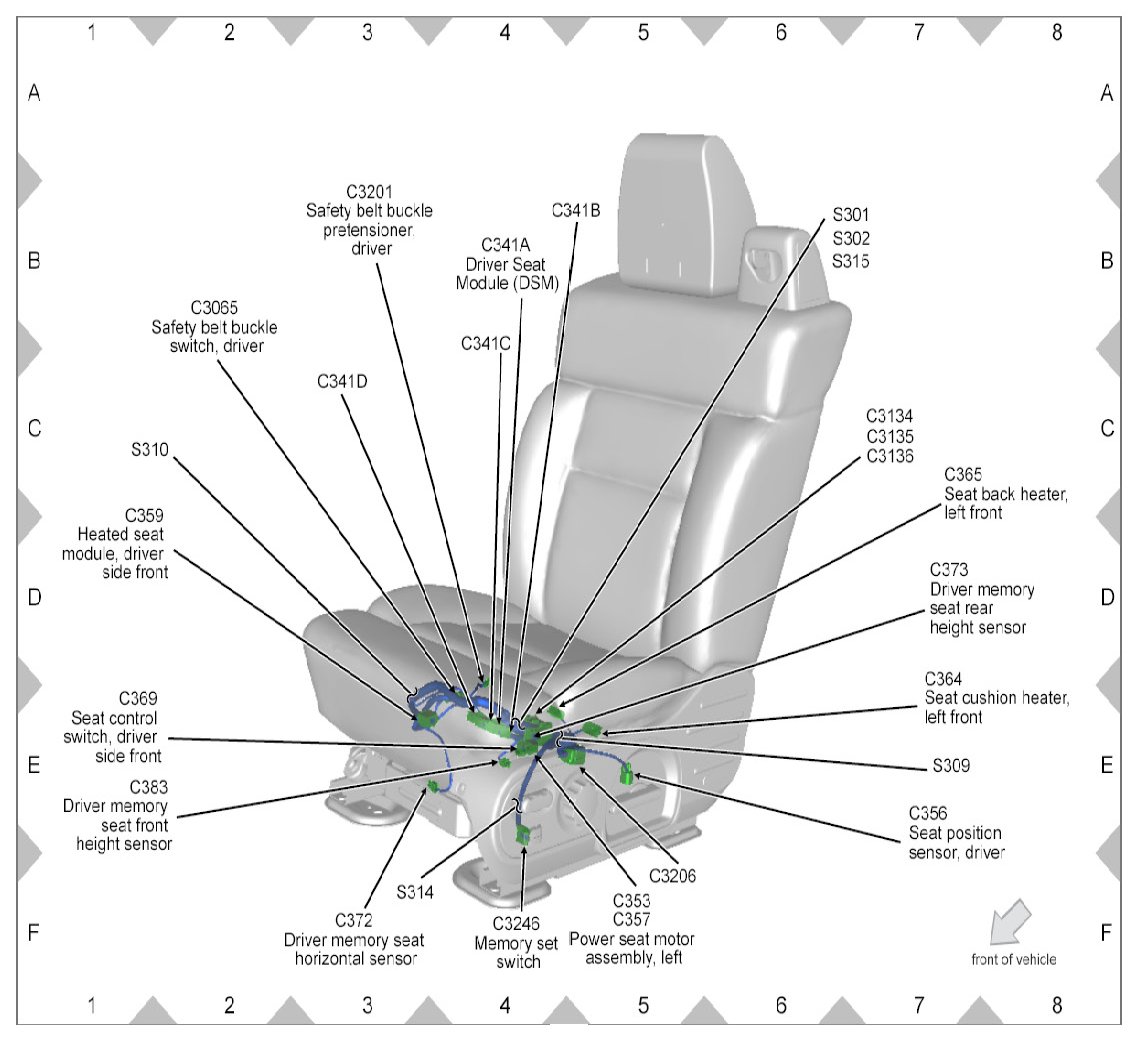

Heated Seat Module, Driver Side Front

View 151-28:
