LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2008
>>
Explorer 2WD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Connector
Trailer Connector
C439:

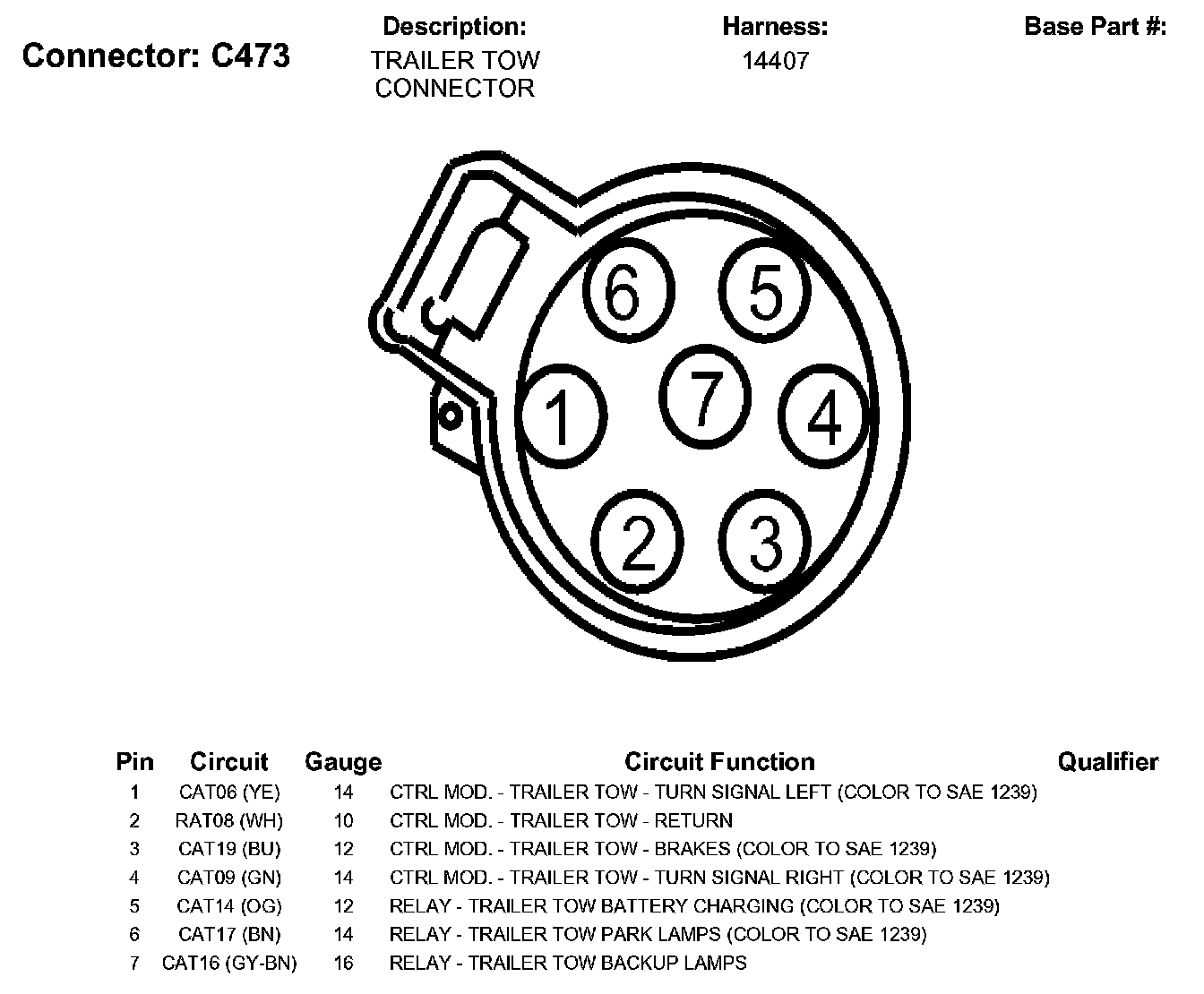

C473:
