Home
>>
Ford
>>
2008
>>
Explorer 2WD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>

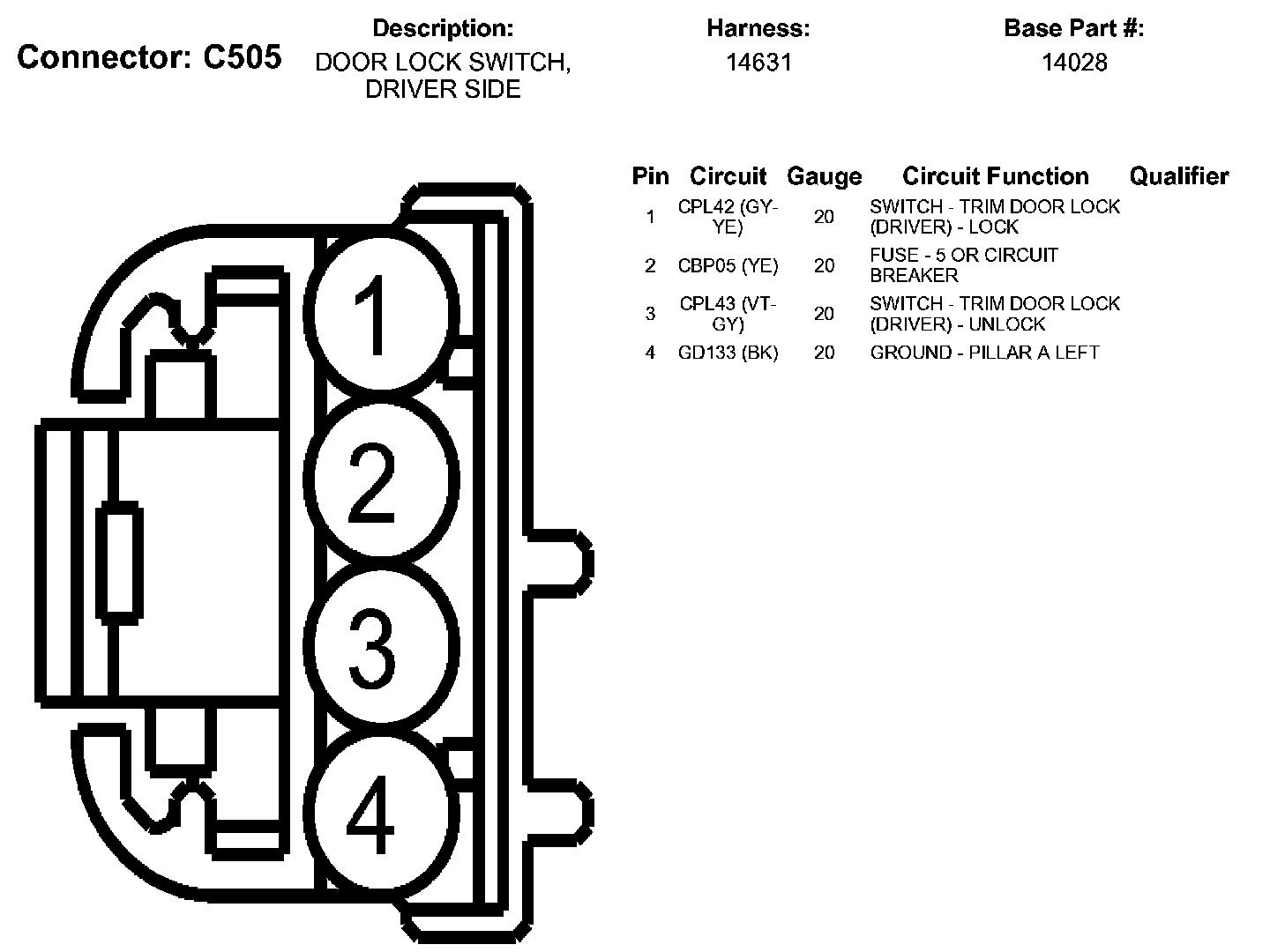

Door Lock Switch, Driver Side
Door Lock Switch, Driver Side
C505:
