Home >> Ford >> 2008 >> Explorer 2WD V6-4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shift Interlock, A/T

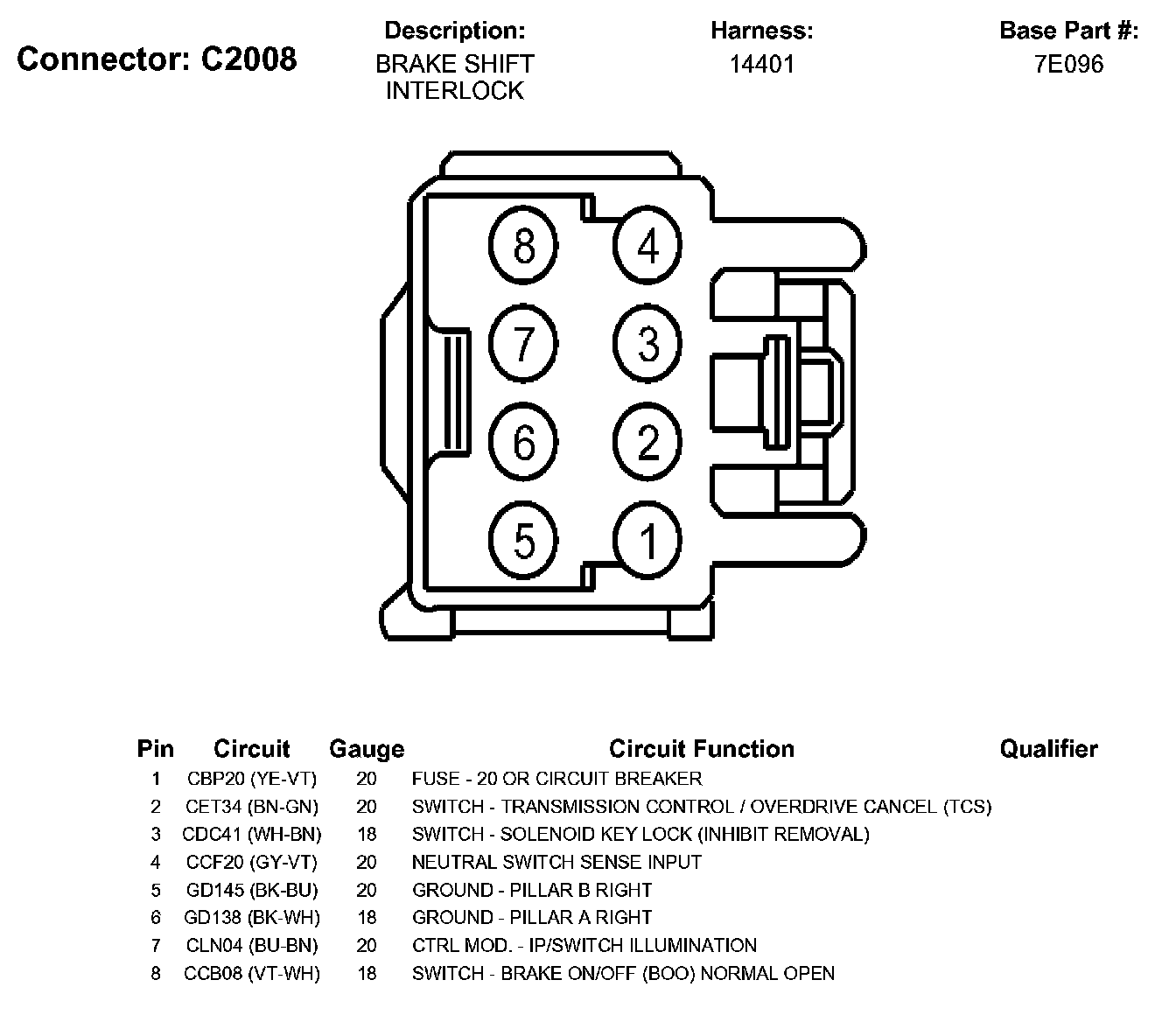

Shift Interlock, A/T

C2008:
