Grille: Service and Repair

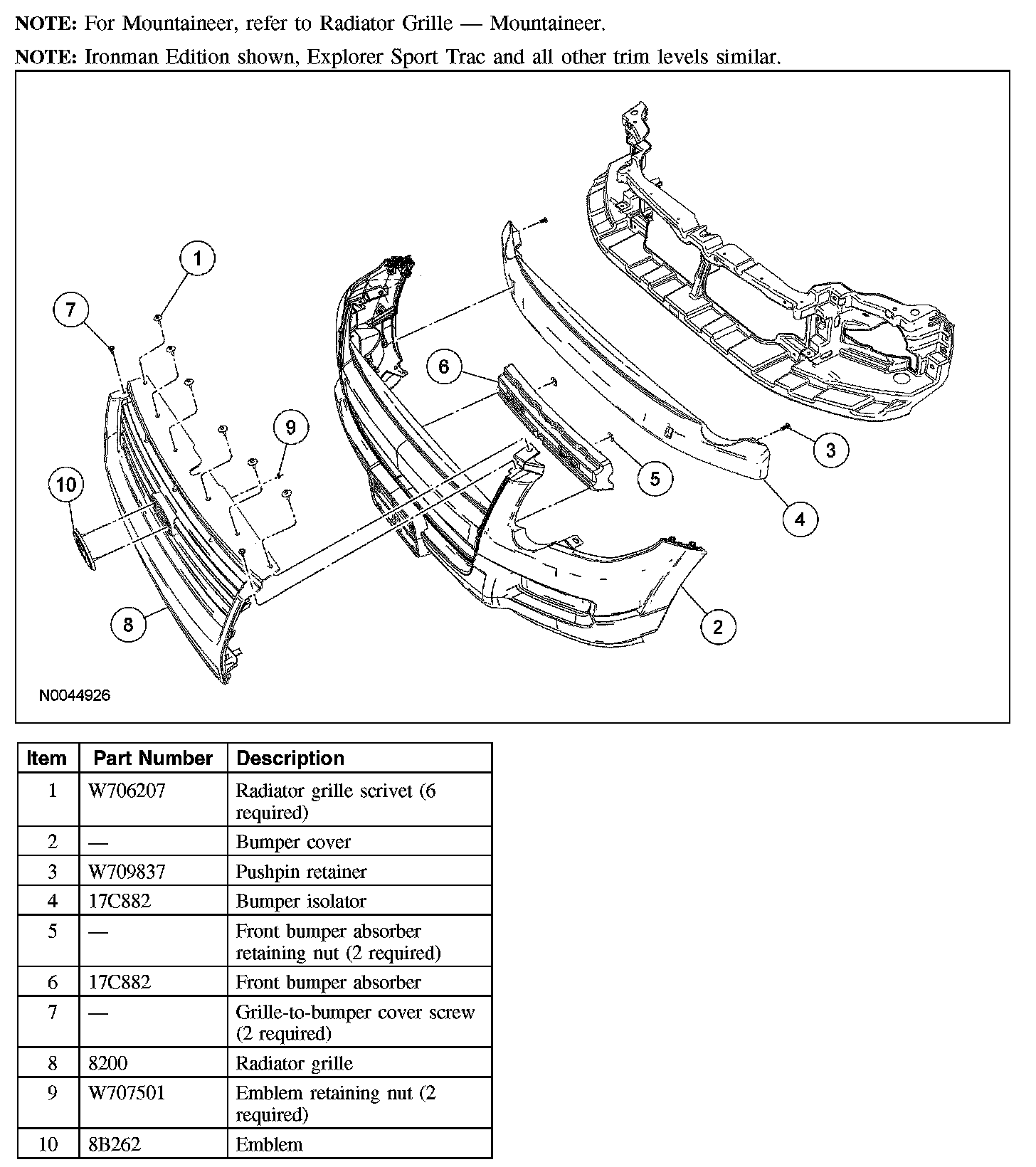

RADIATOR GRILLE







Removal and Installation
1. Remove the front bumper cover.
2. Remove the 2 grille-to-bumper cover screws.







3. Remove the front bumper isolator and absorber.
1. Remove the 2 pushpins.
2. Remove the 2 nuts.







4. Remove the 4 scrivets.







5. Carefully release the 14 clips and remove the grille assembly from the bumper cover.
6. To install, reverse the removal procedure.
