Ford
>>
2008
>>
Escape 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>

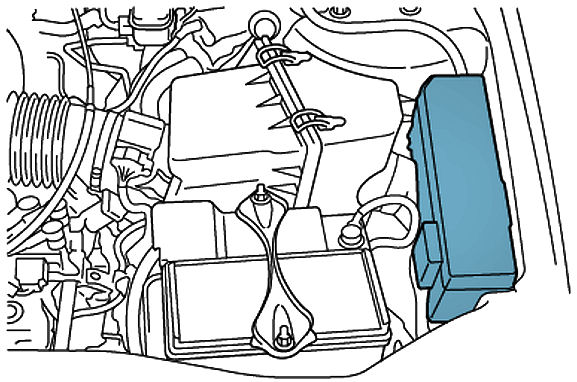

Locations
>>

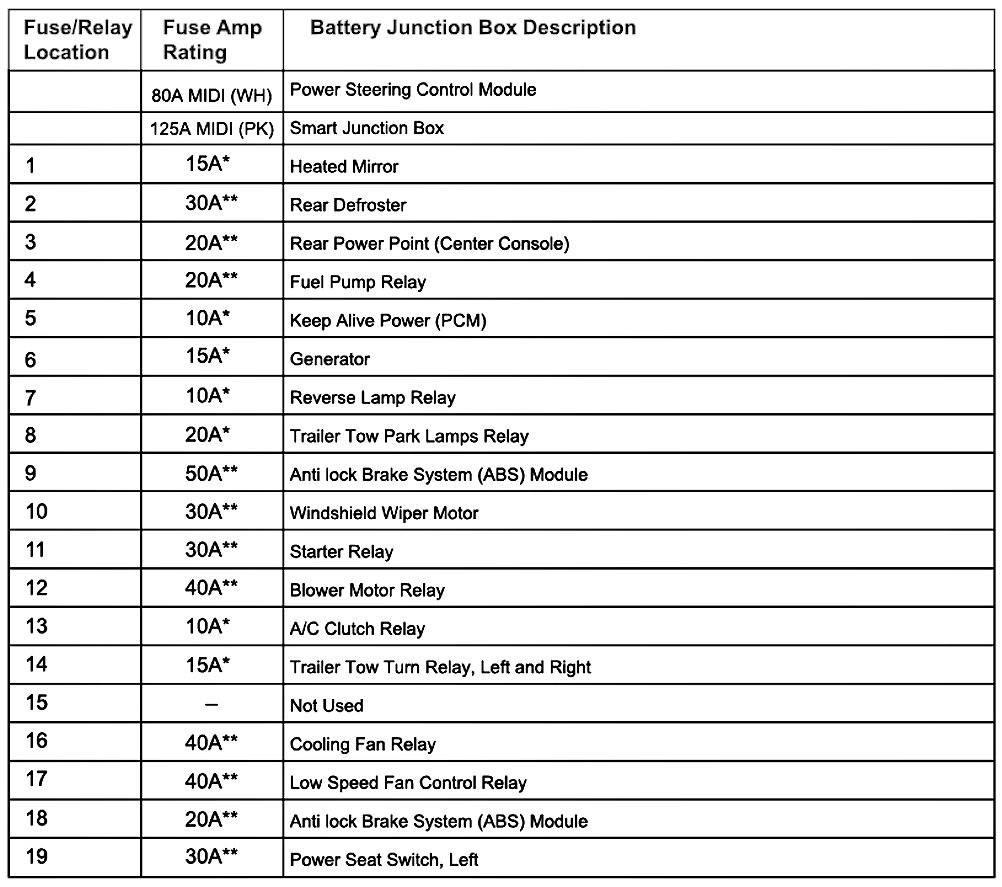

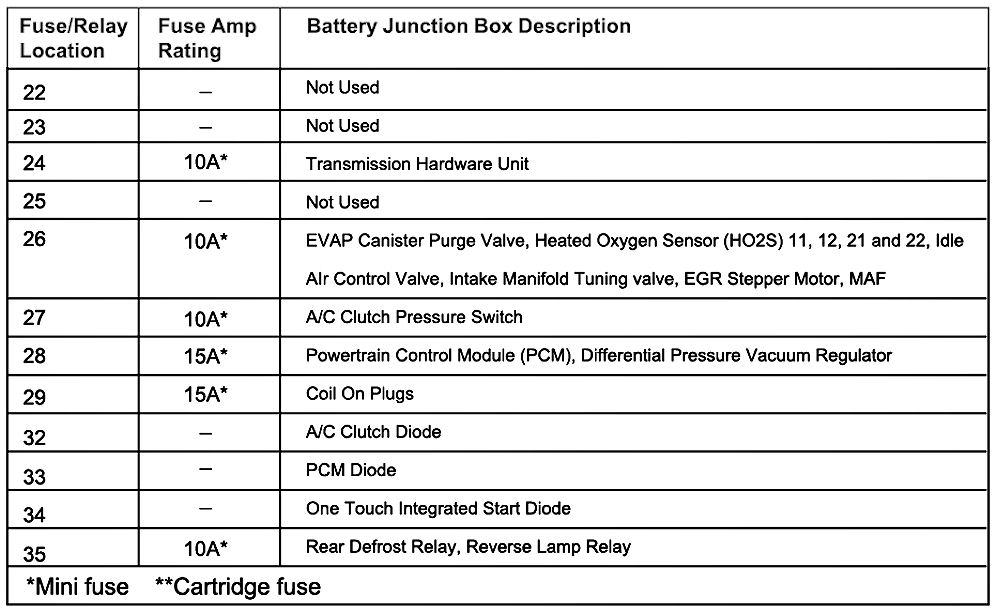

Battery Junction Box

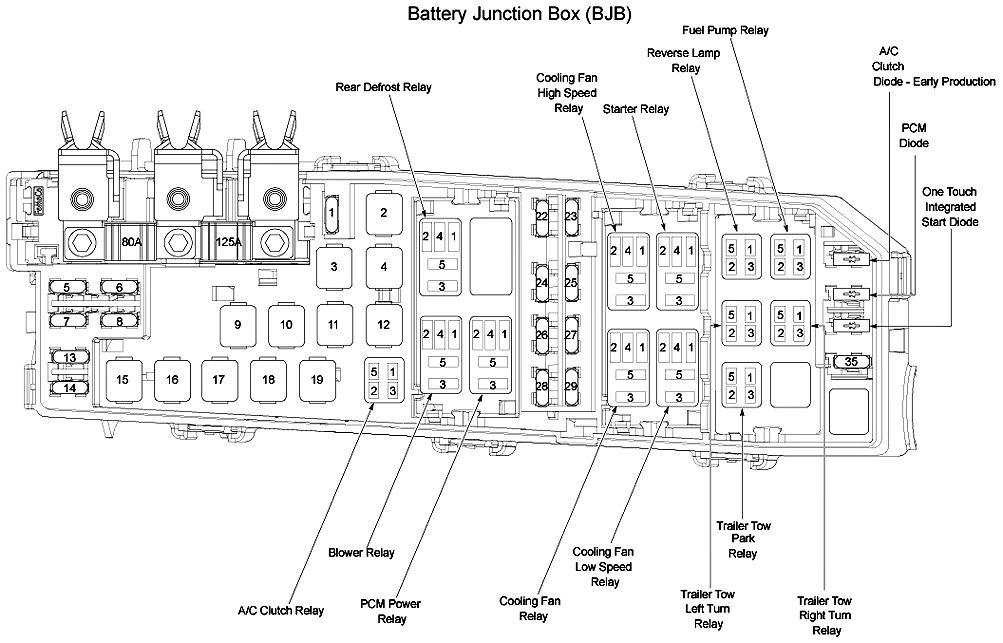

Battery Junction Box
