Clutch Hydraulic System
Clutch Hydraulic System
Clutch Controls - Exploded View

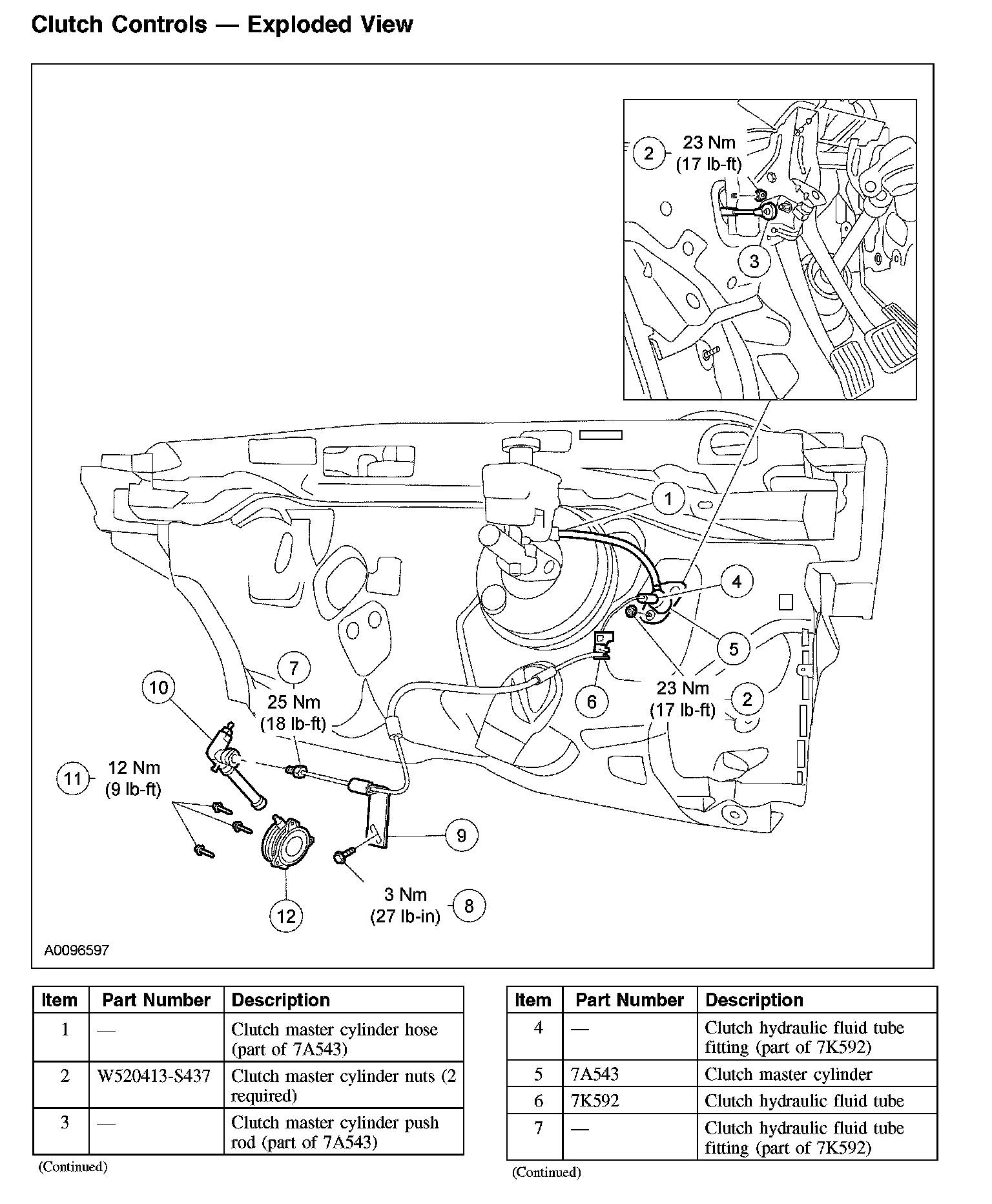

Clutch Controls - Exploded View (Part 1):
Clutch Controls - Exploded View (Part 2):
