Home >> Ford >> 2008 >> Escape 2WD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Master Window Adjust Switch

Master Window Adjust Switch

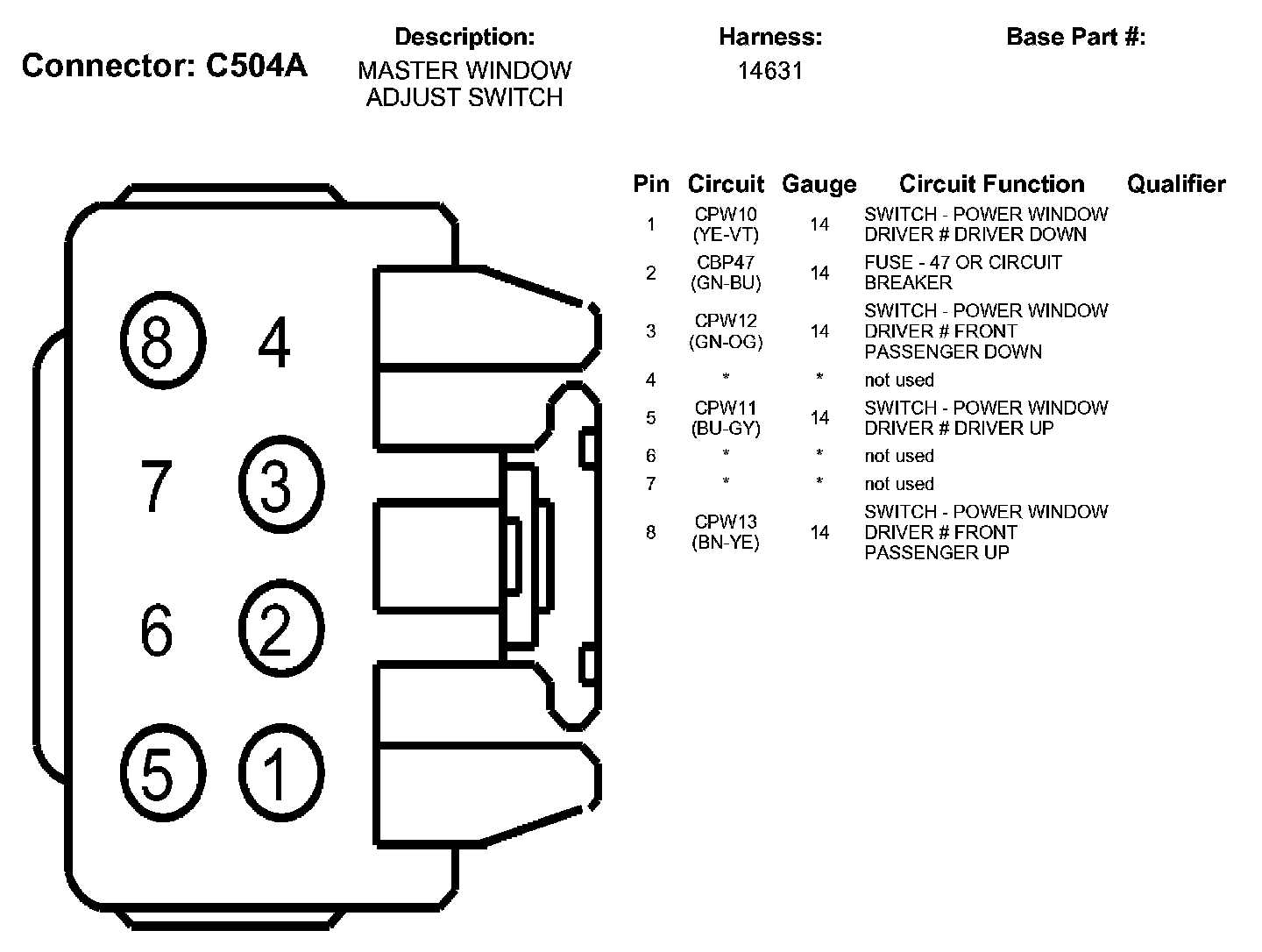

C504A:

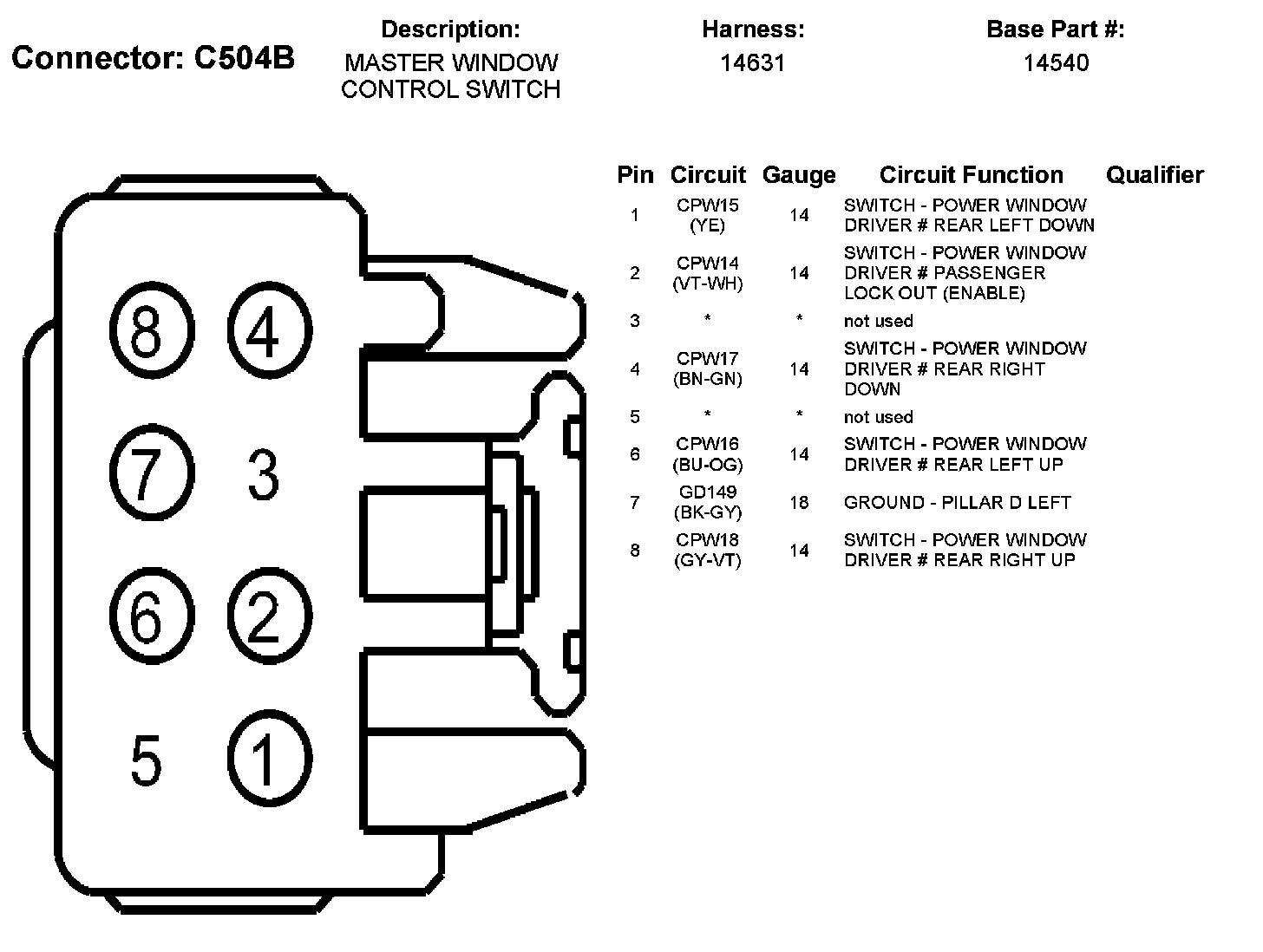

C504B:
