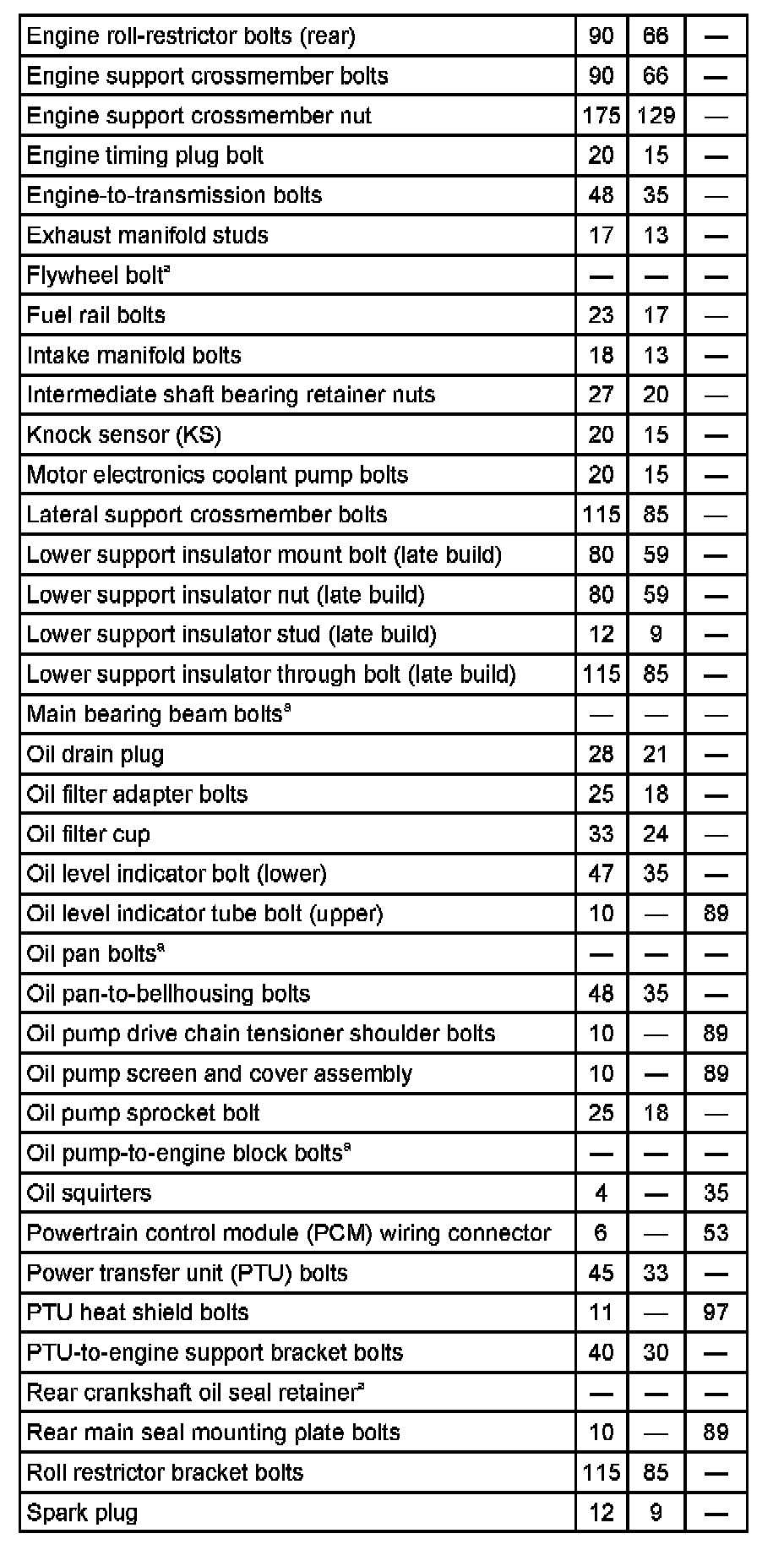

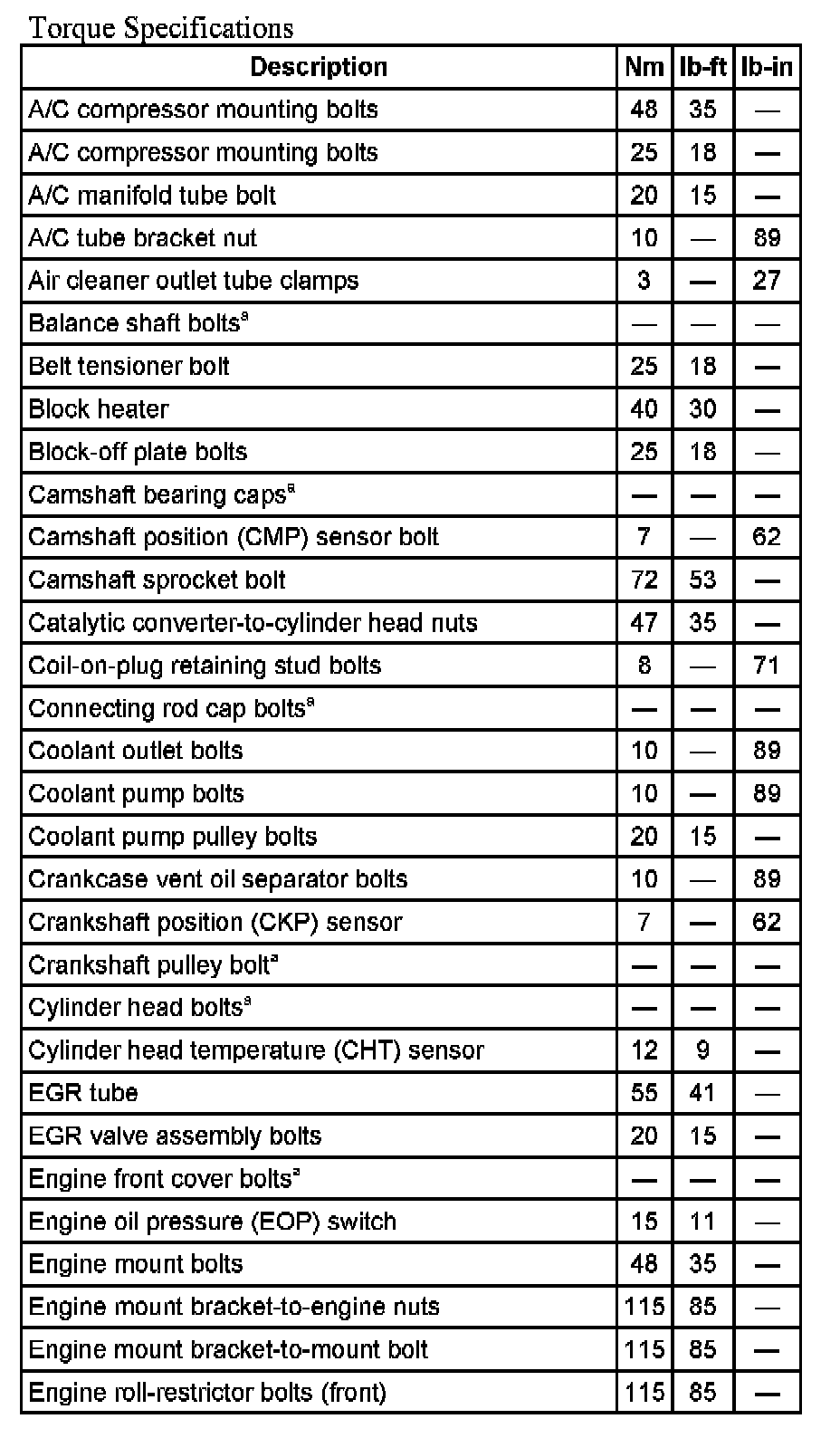

Torque Specifications

Torque Specifications














a = See procedure for specification.

Cylinder Head Bolts
The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

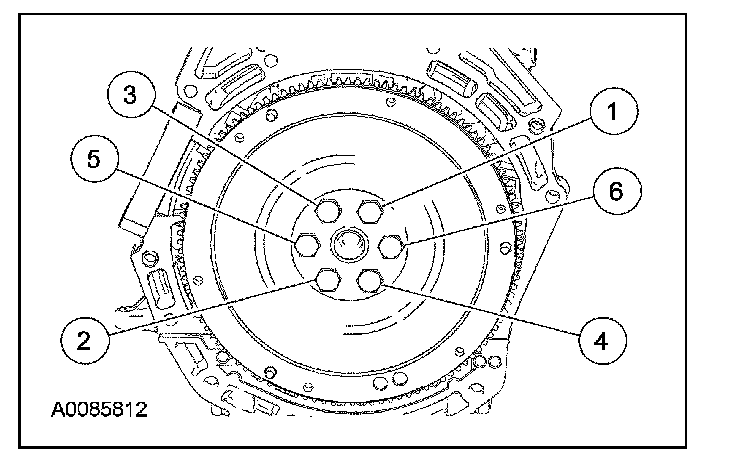

Flexplate Bolts





NOTE: Special bolts are used for installation. Do not use standard bolts.

First pass 50 Nm (37 lb-ft).
Second pass 80 Nm (59 lb-ft).
Final pass 112 Nm (83 lb-ft).
