Tests TU: Calculated Torque Error
Tests TU: Calculated Torque Error
PINPOINT TEST TU: CALCULATED TORQUE ERROR

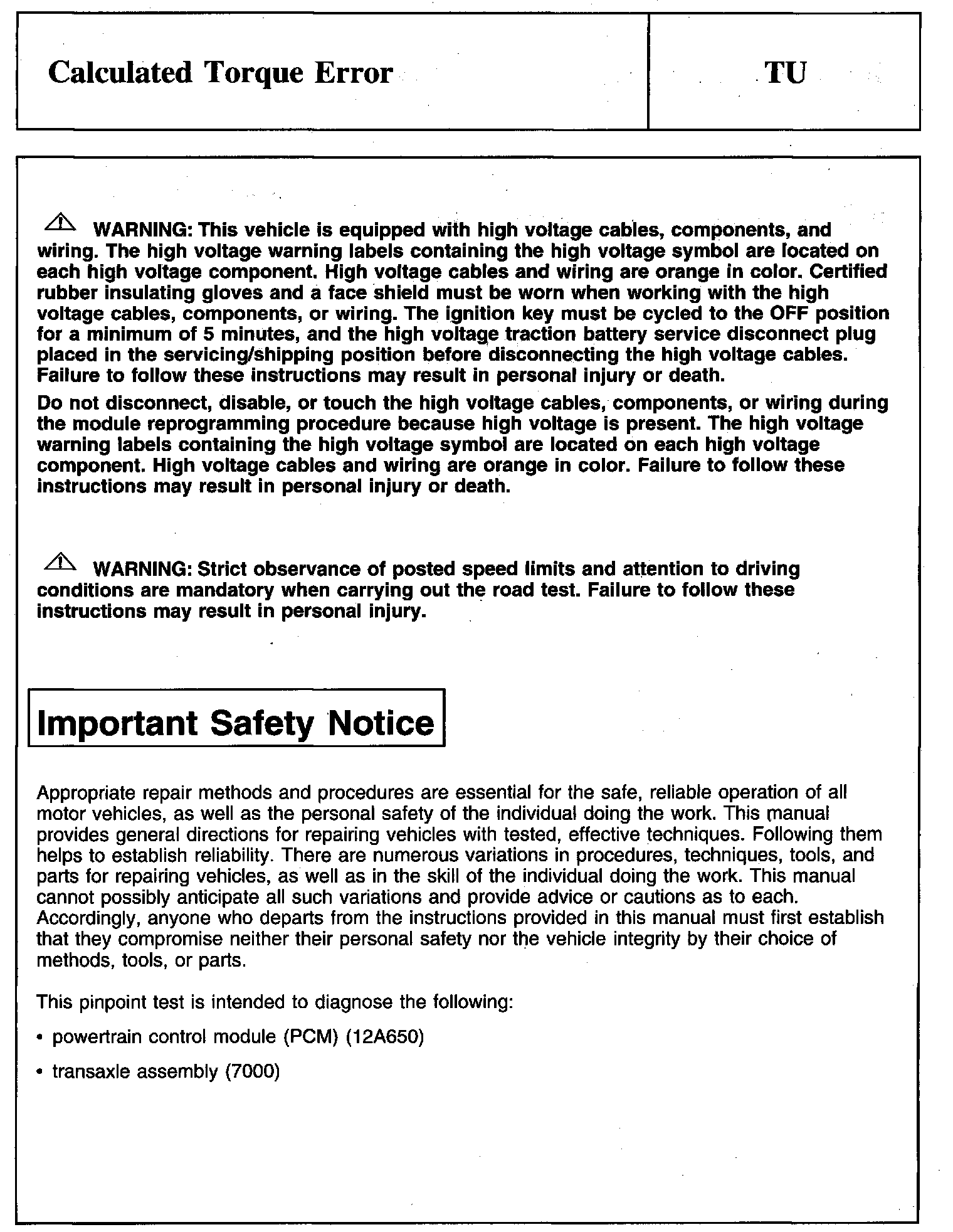

Warnings And Important Safety Notice:

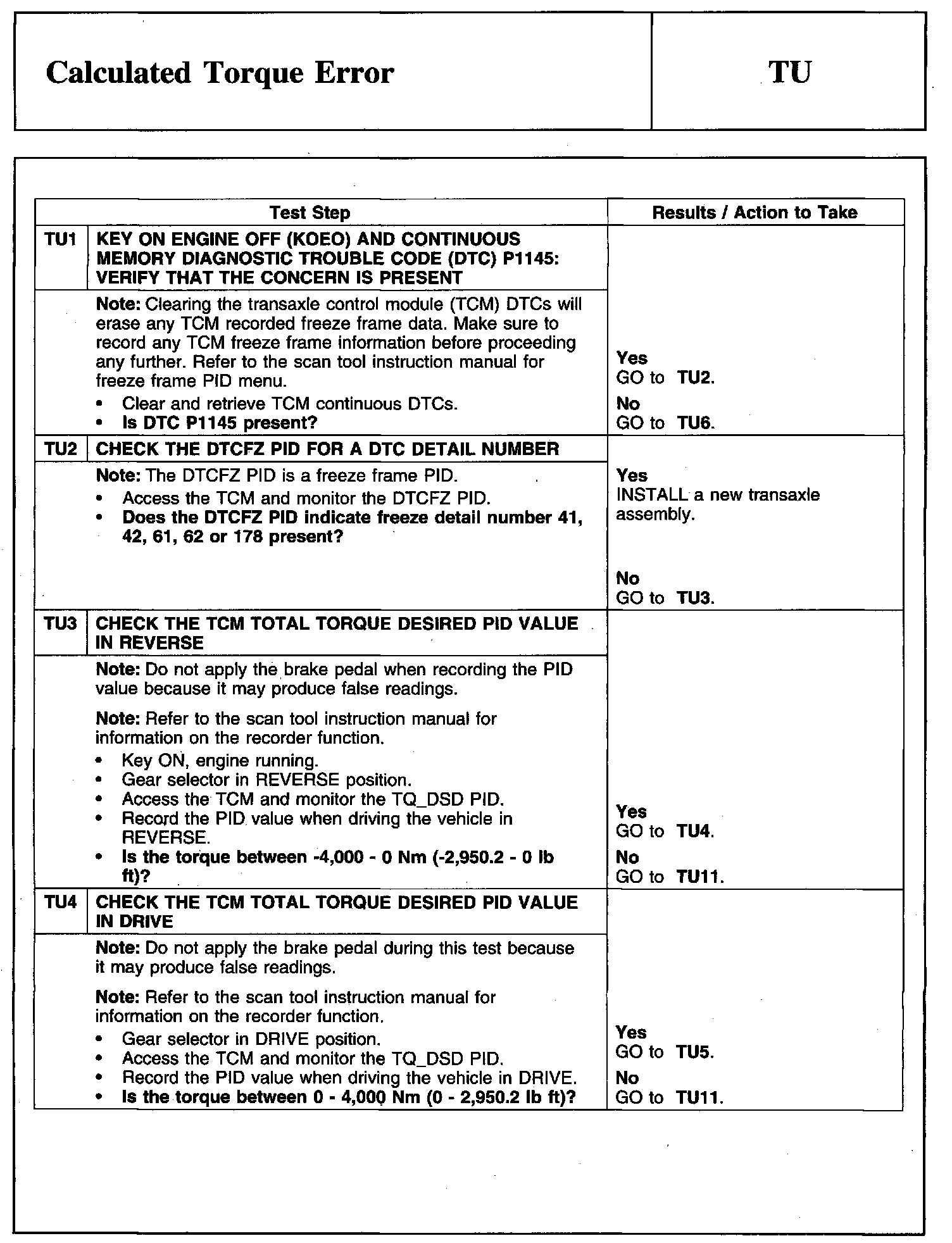

TU1-TU4:

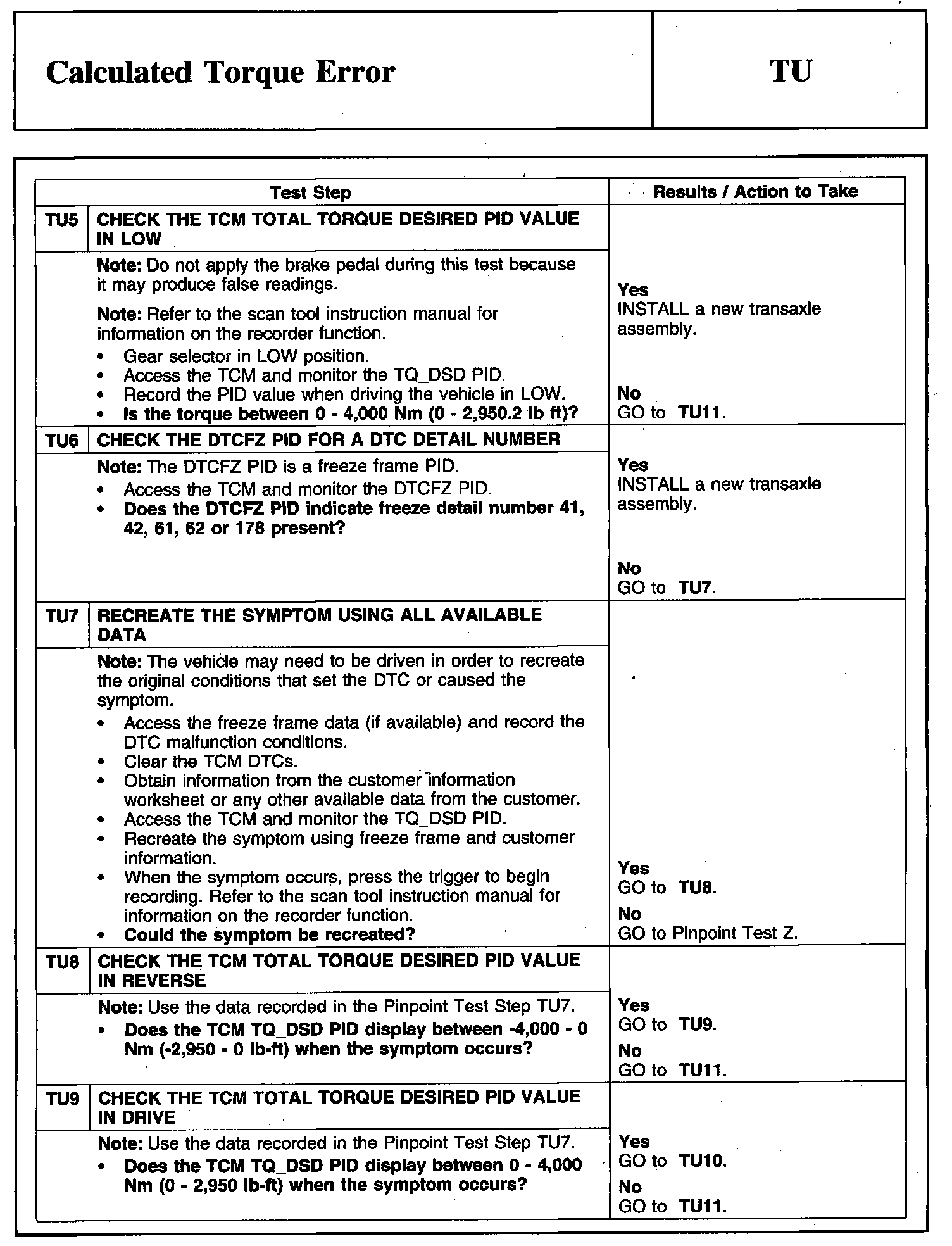

TU5-TU9:

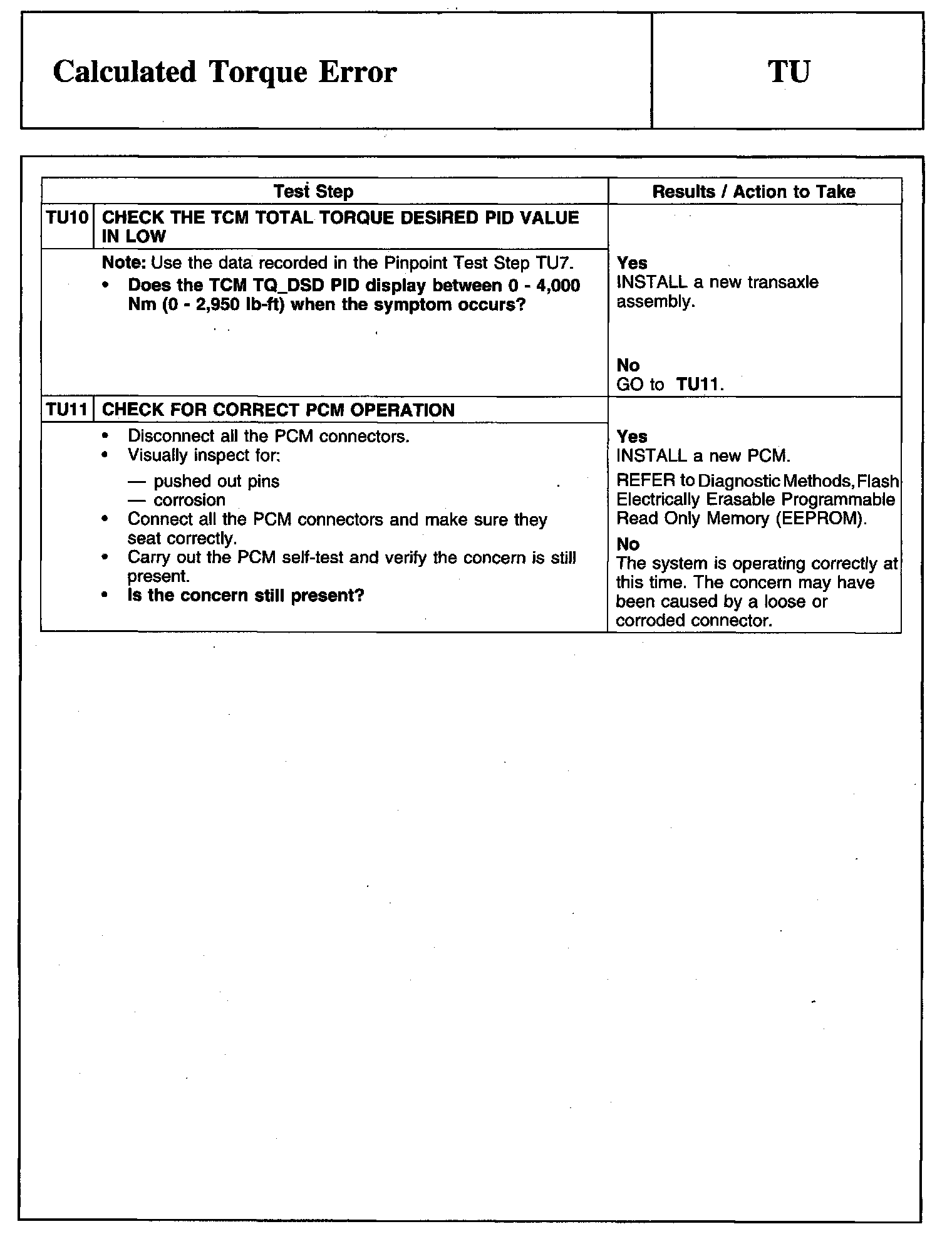

TU10-TU11:
