Oil Filter, Engine

Engine Lubrication Components - Exploded View

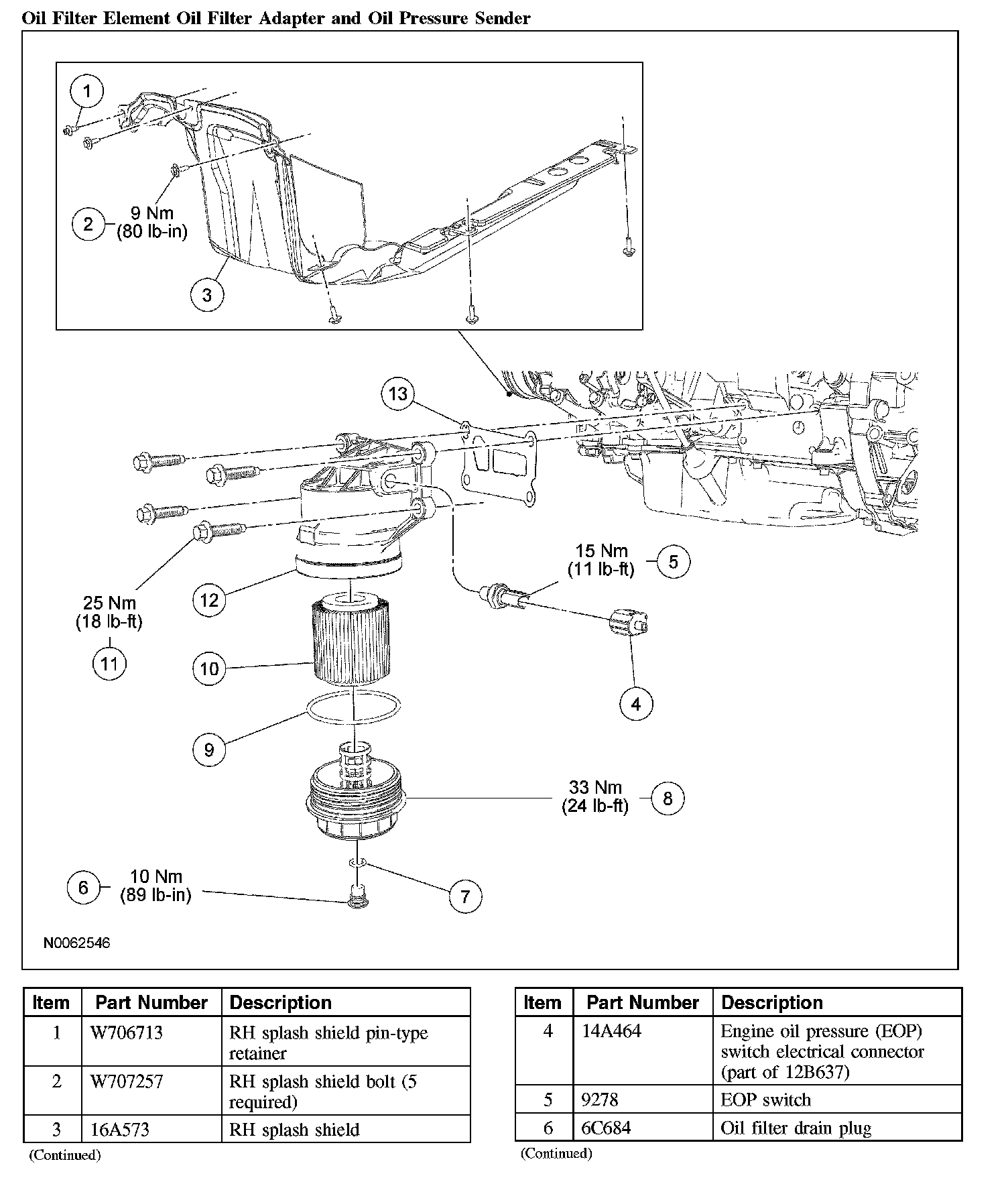

Oil Filter Element Oil Filter Adapter and Oil Pressure Sender (Part 1):

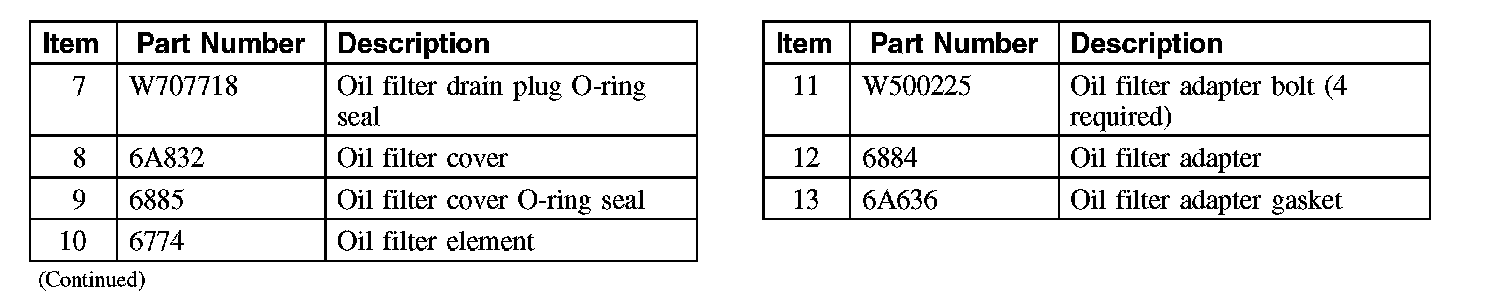

Oil Filter Element Oil Filter Adapter and Oil Pressure Sender (Part 2):
