Escape 2WD L4-2.3L VIN H Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Flywheel
Flywheel

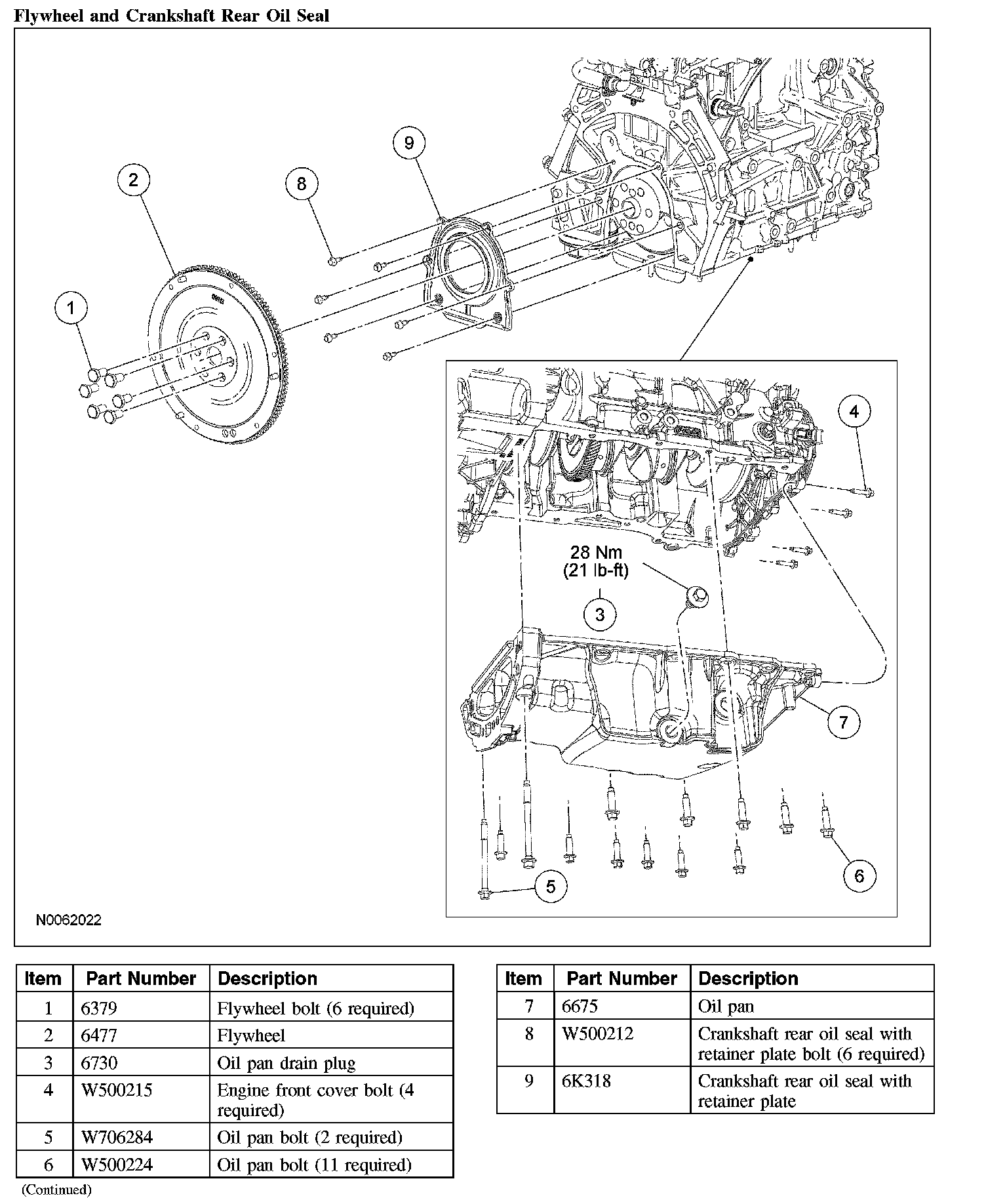

Lower End Components - Exploded View
Flywheel and Crankshaft Rear Oil Seal:
