Smart Junction Box (SJB)

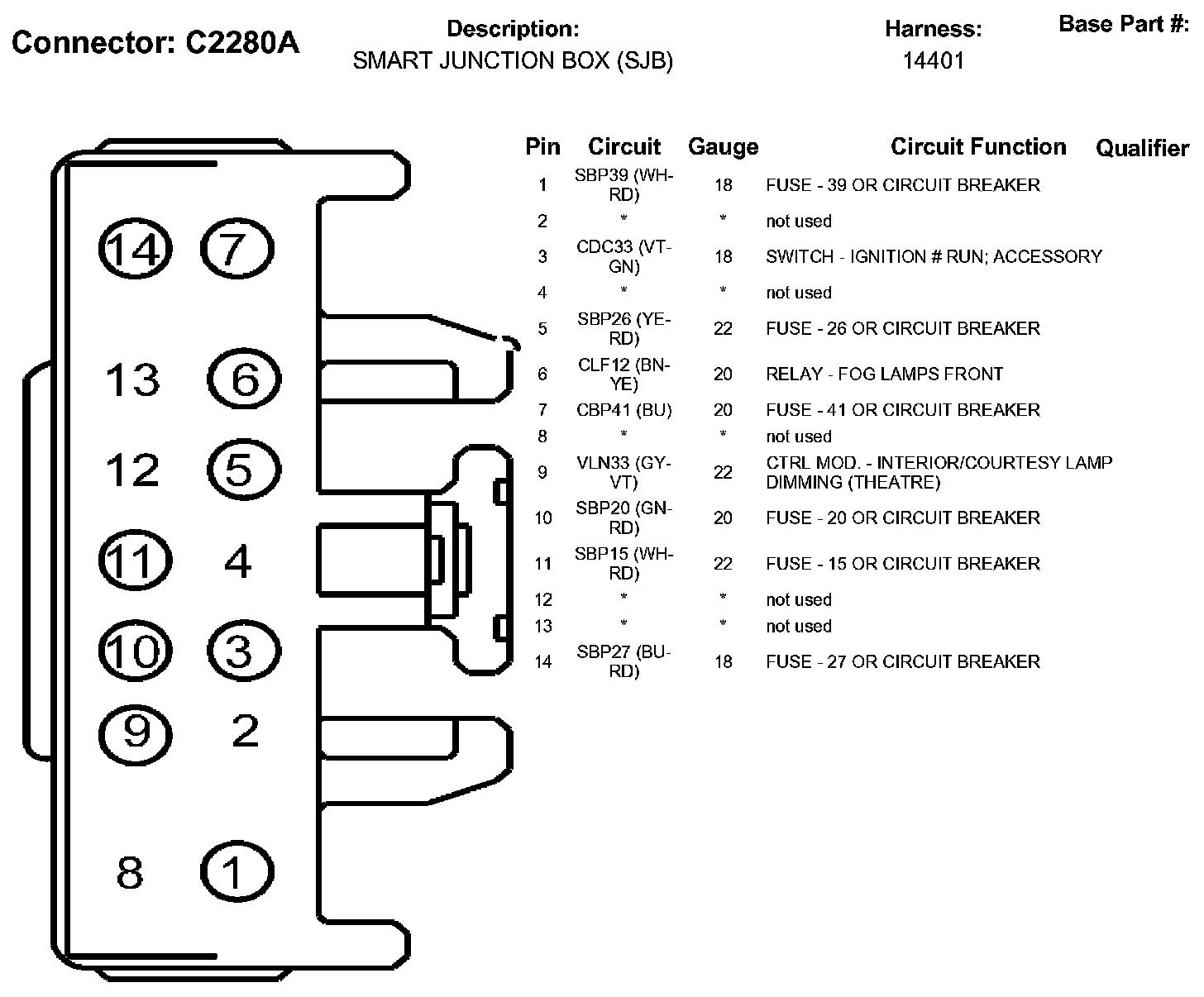

C2280A:

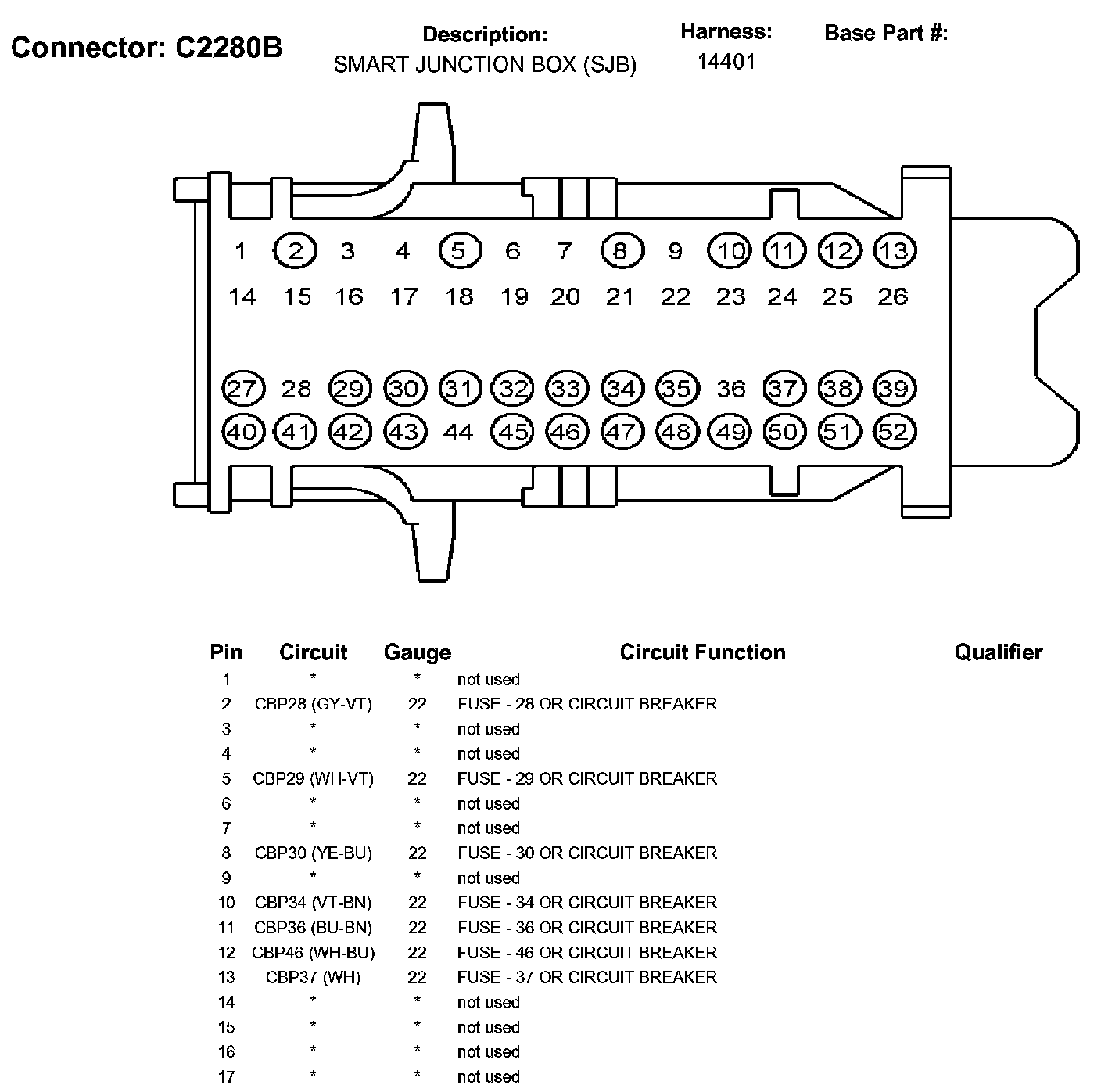

C2280B (Part 1):

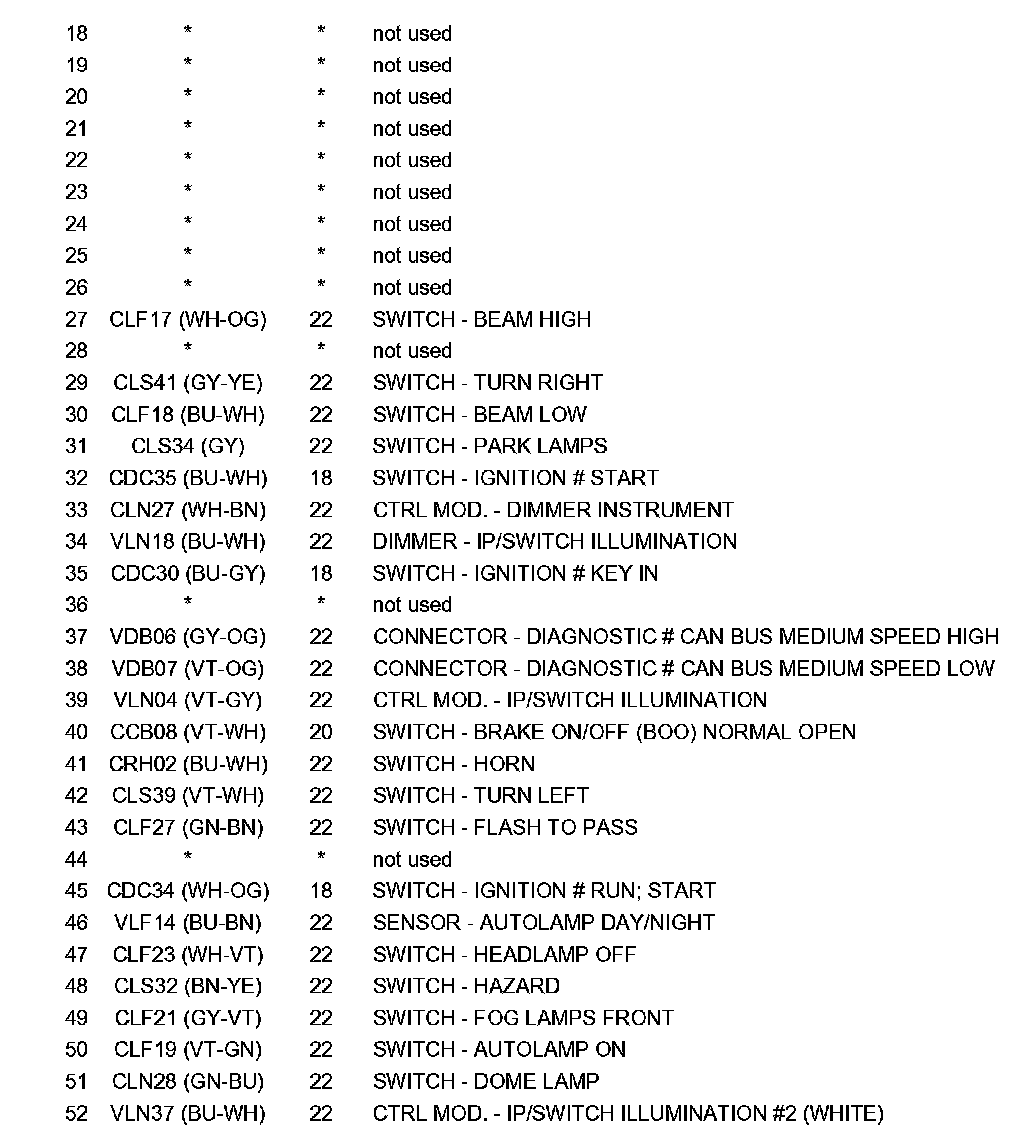

C2280B (Part 2):

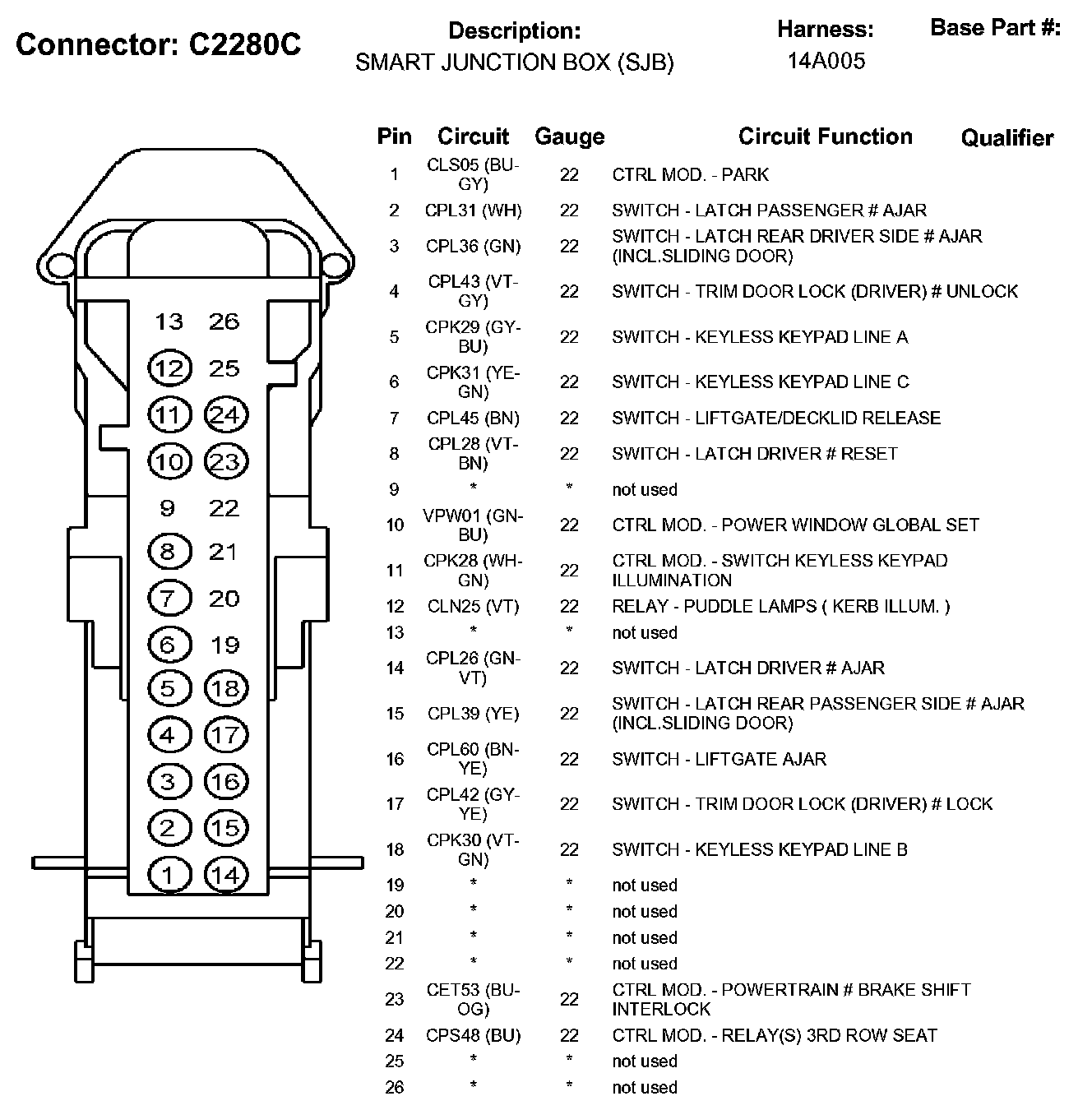

C2280C:

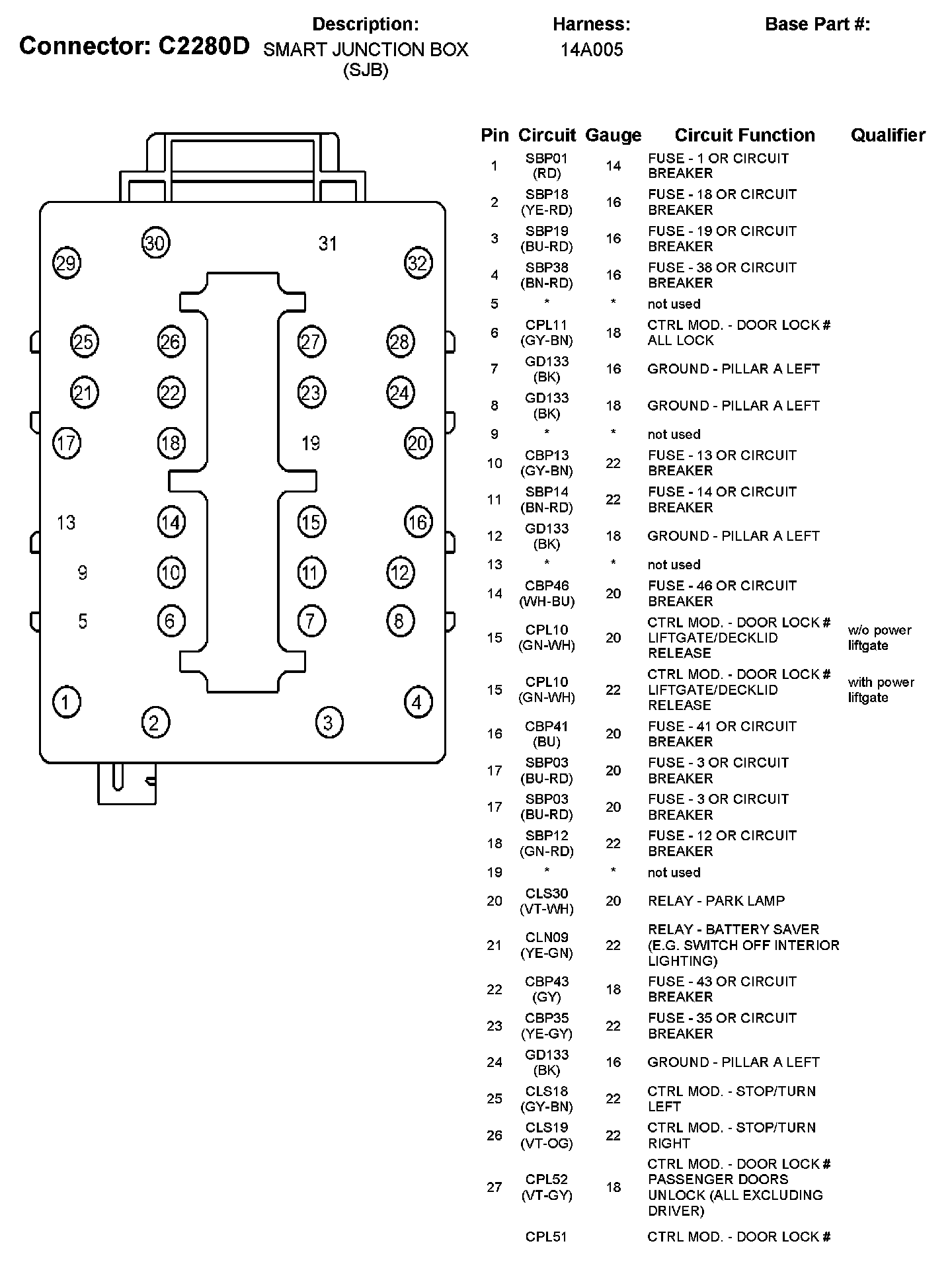

C2280D (Part 1):
C2280D (Part 2):

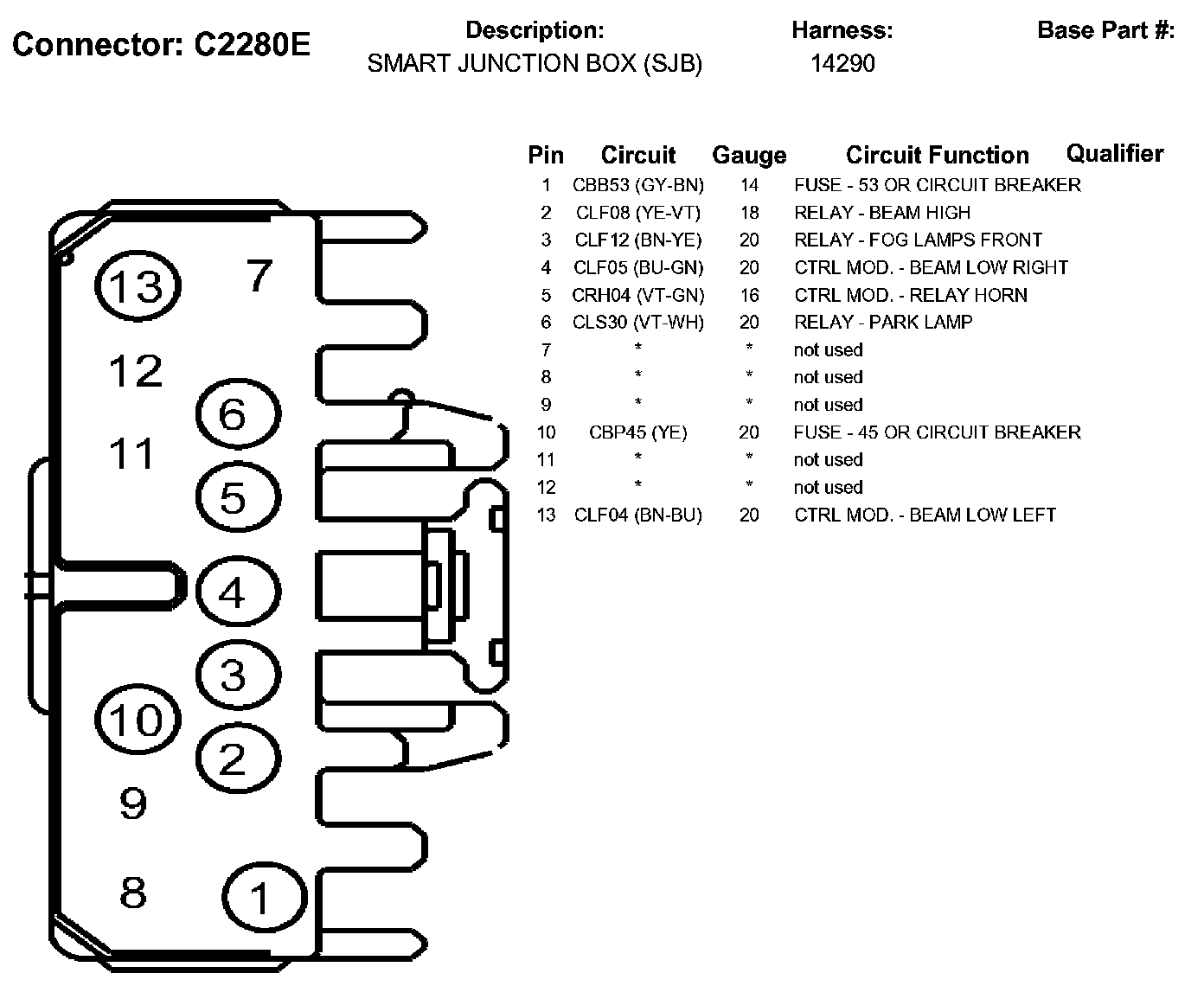

C2280E:

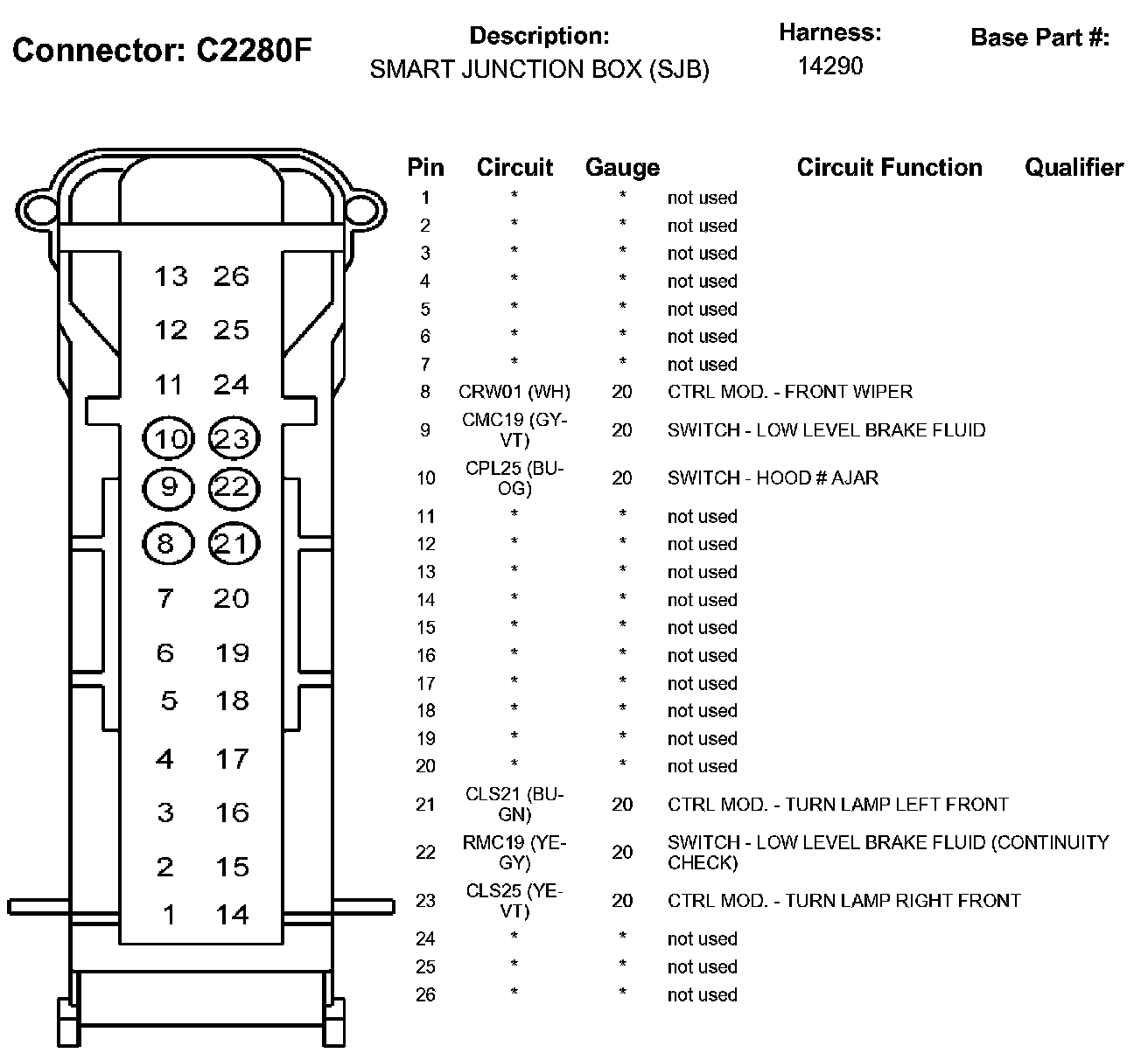

C2280F:
C2280G:
