Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

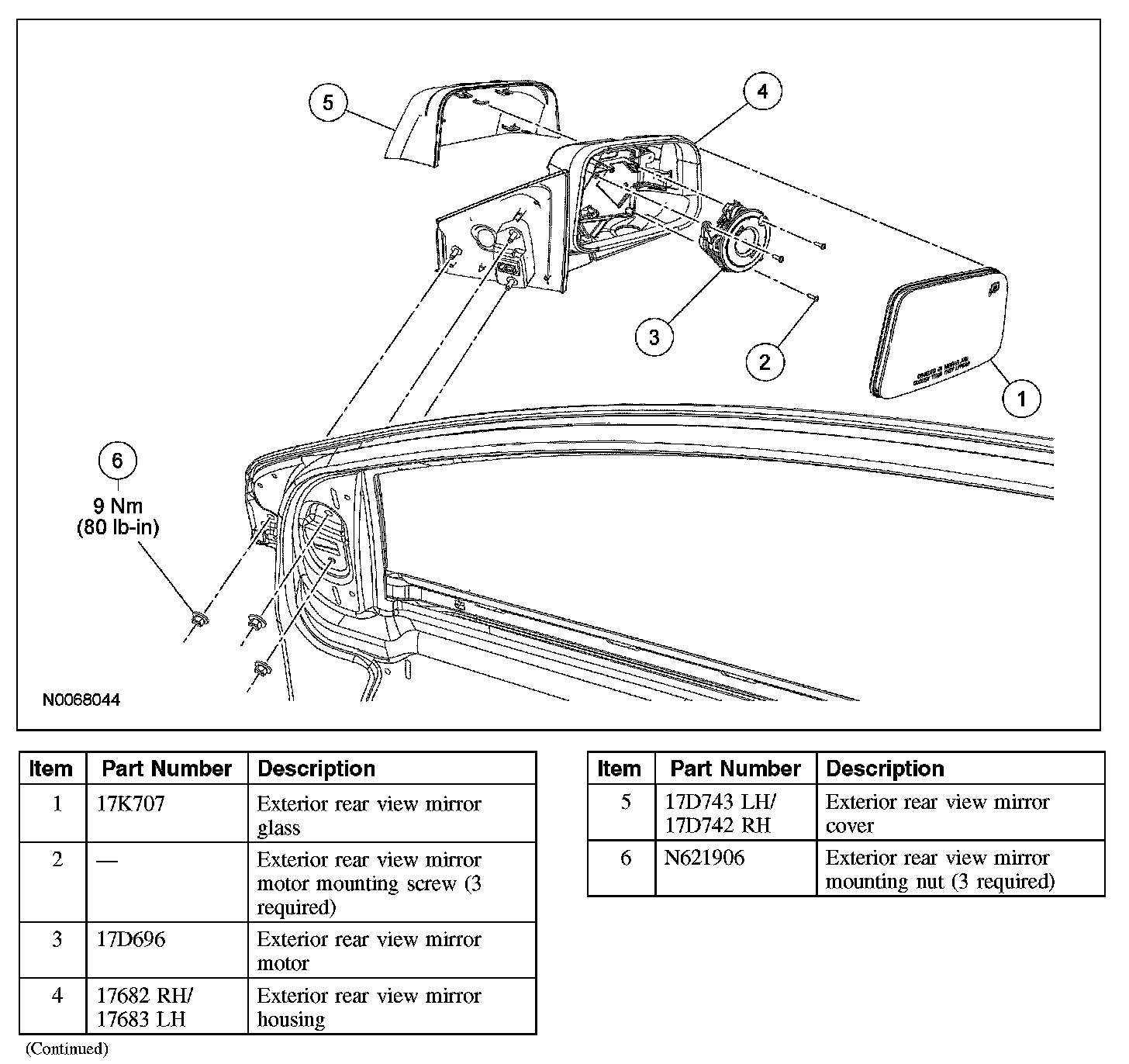

Exploded View







Removal and Installation
1. Remove the exterior rear view mirror glass.
2. Remove the 3 exterior rear view mirror motor screws.







3. Disconnect the exterior rear view mirror motor electrical connector.
4. Remove the exterior rear view mirror motor.
5. To install, reverse the removal procedure.
