Tests AS: Loss of Communication With The Fuel Injection Control Module (FICM)
PINPOINT TEST AS: LOSS OF COMMUNICATION WITH THE FUEL INJECTOR CONTROL MODULE (FICM)

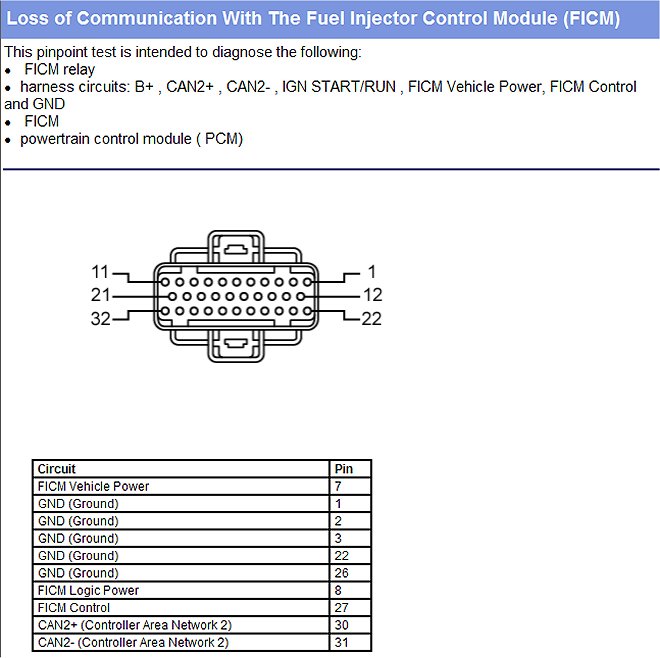

Pinpoint Test AS: Introduction:

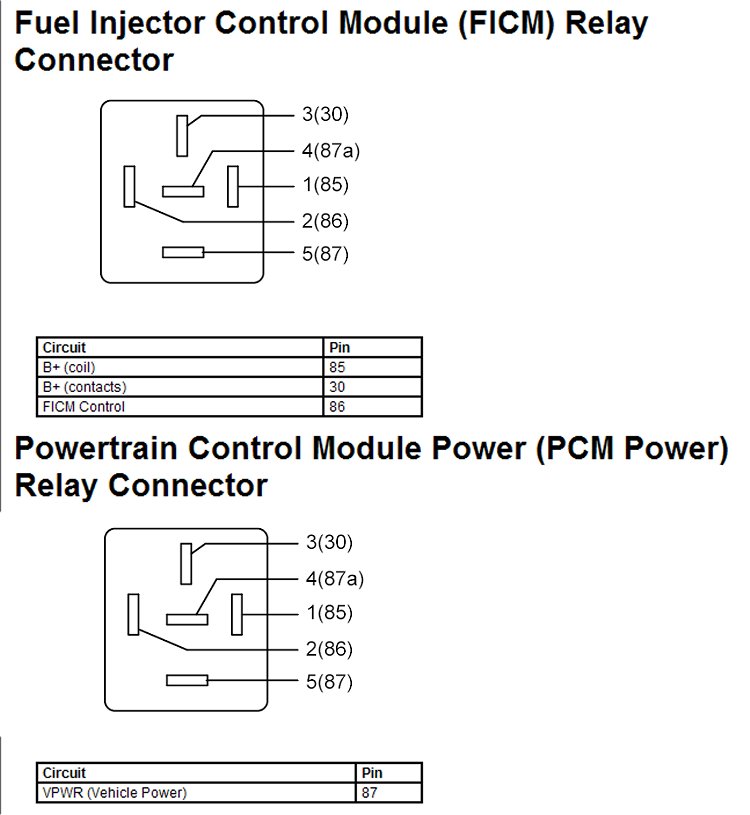

FICM & PCM Power Relay Connector:

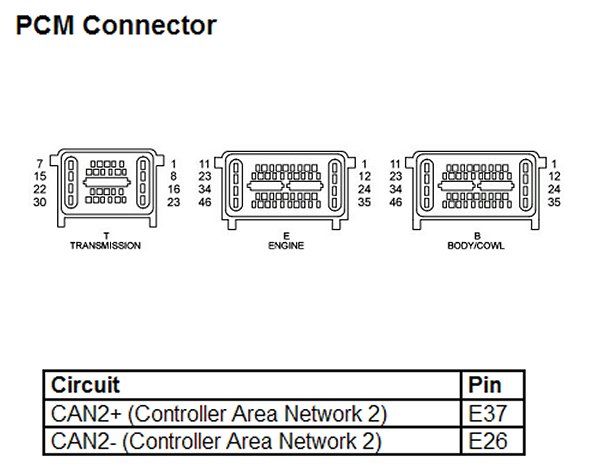

PCM Connector:

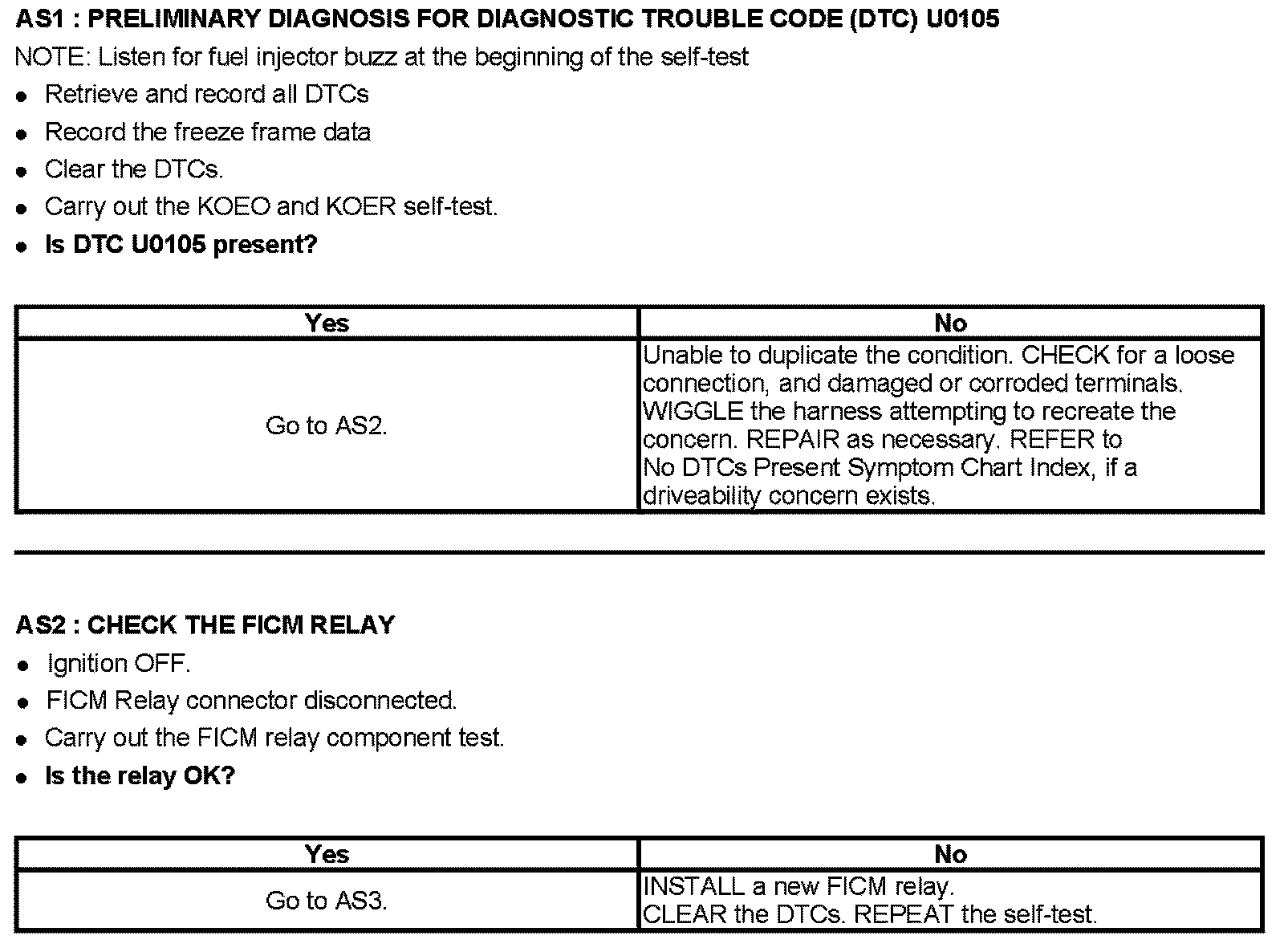

AS1-AS2:

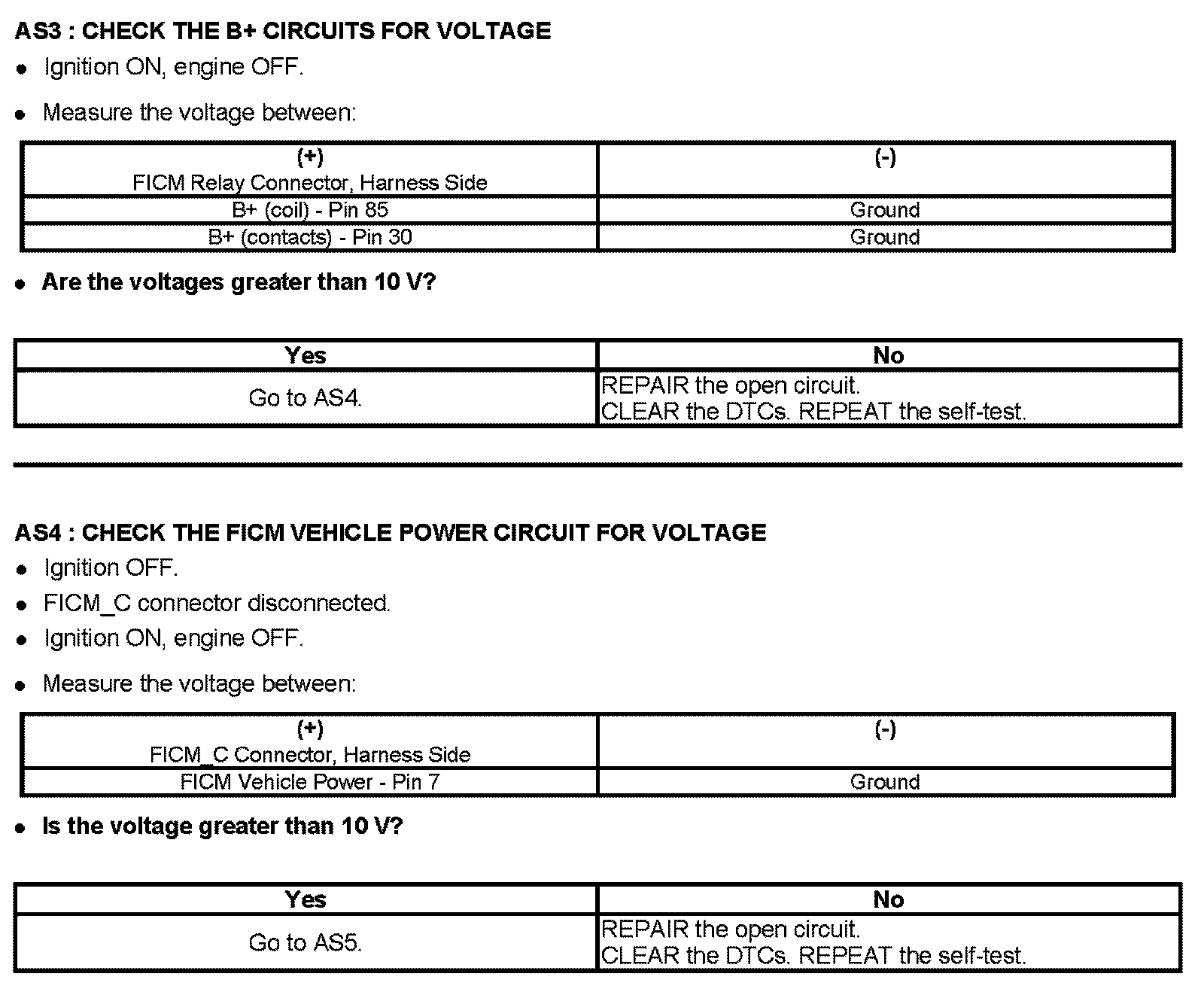

AS3-AS4:

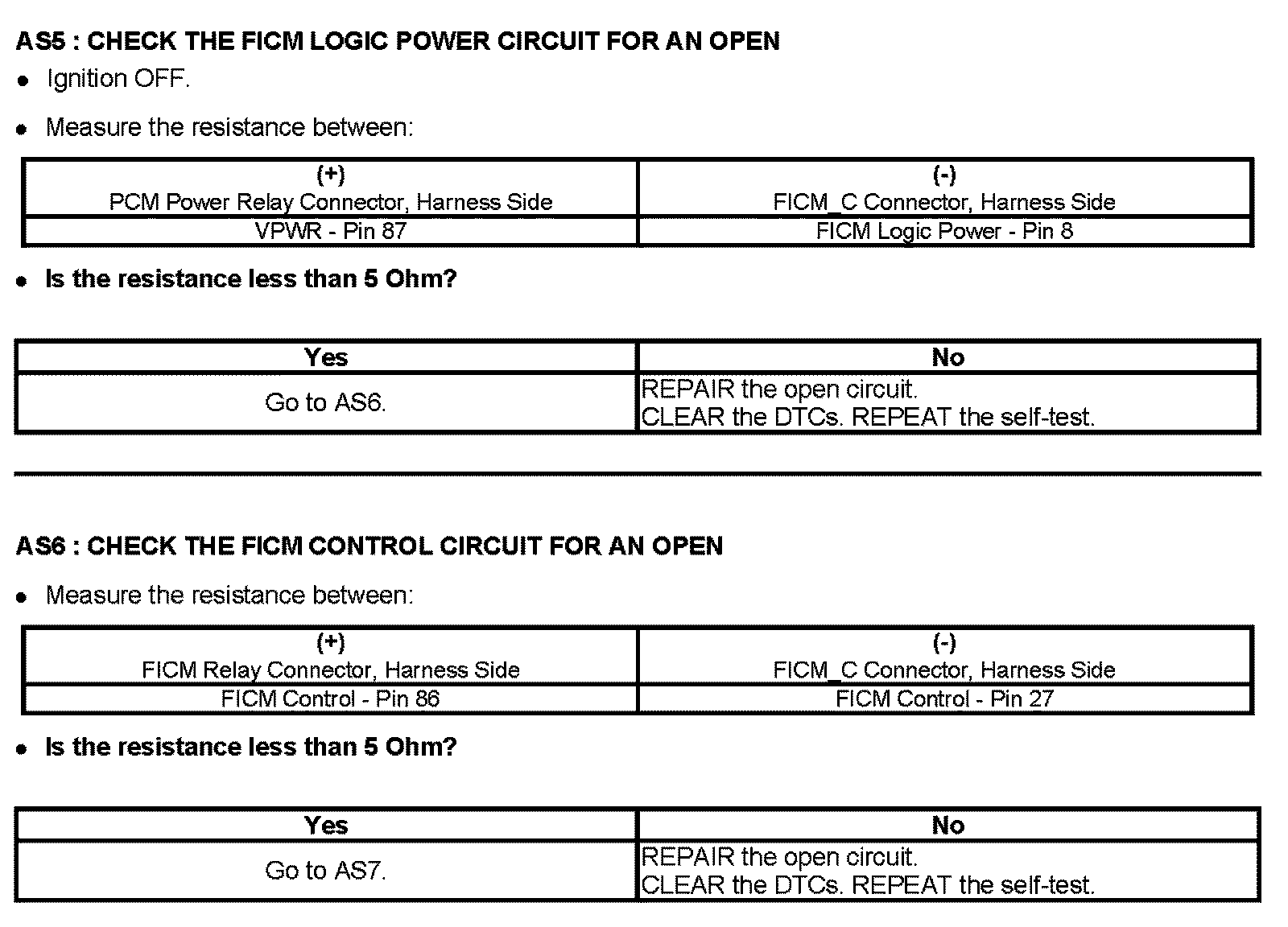

AS5-AS6:

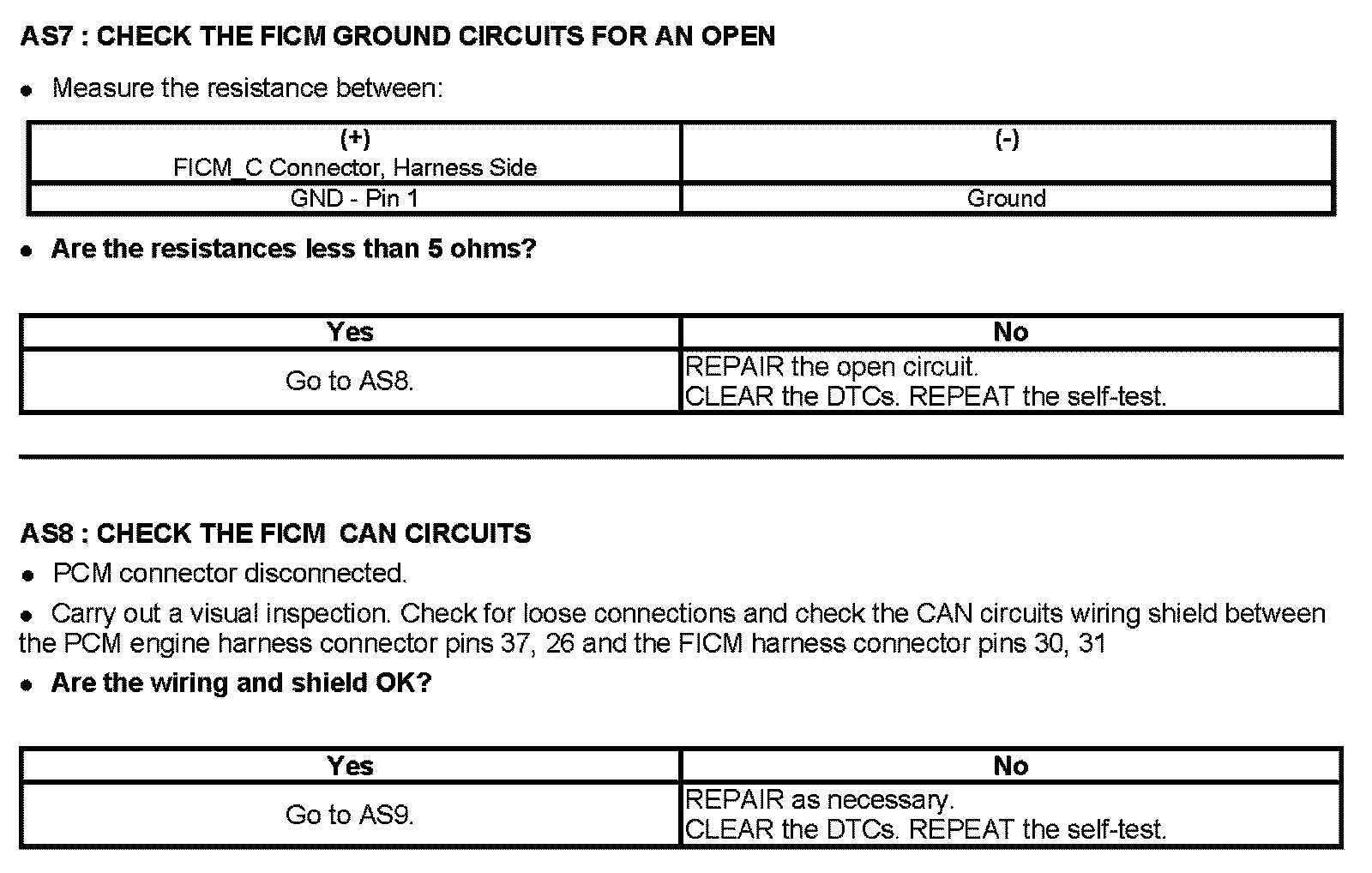

AS7-AS8:

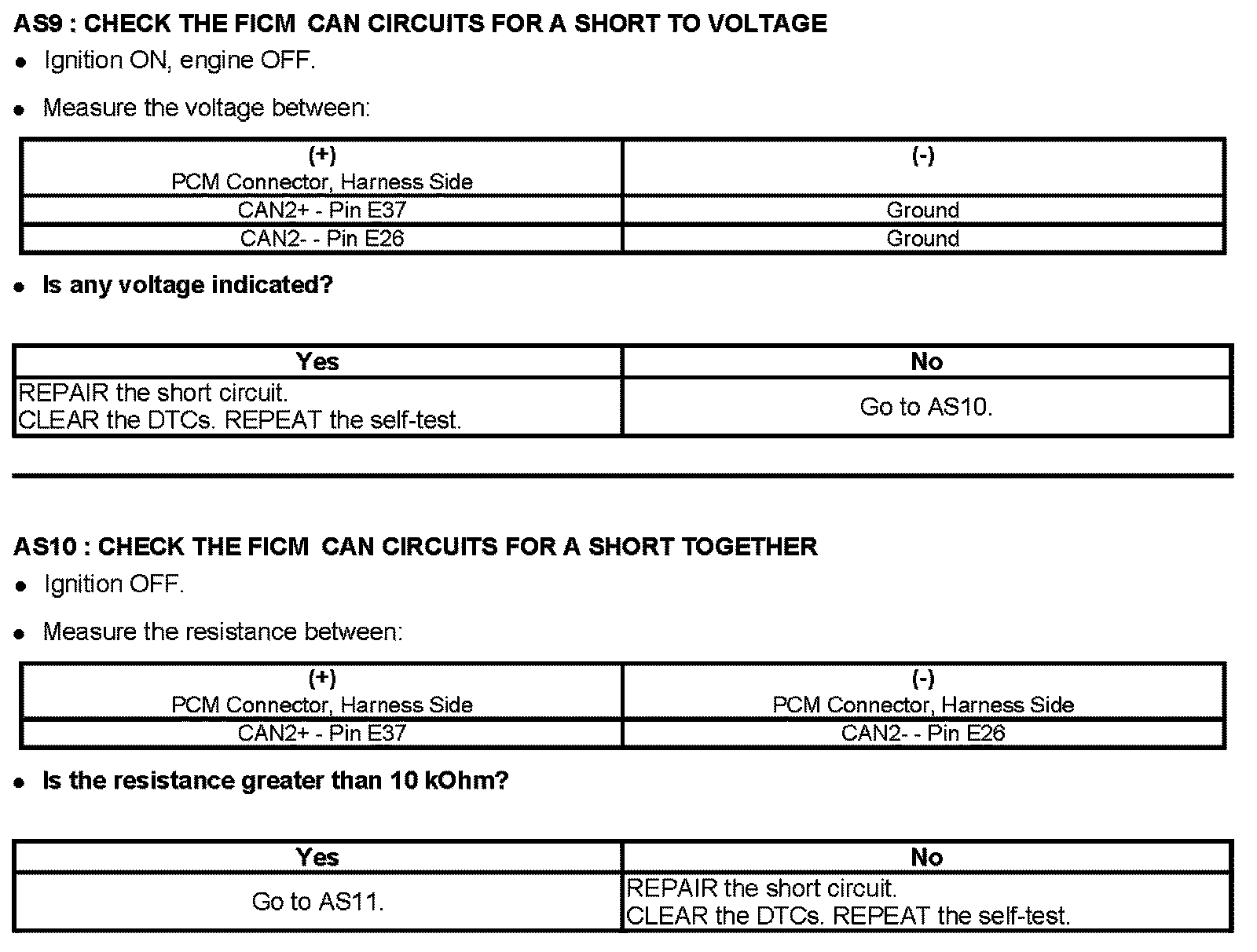

AS9-AS10:

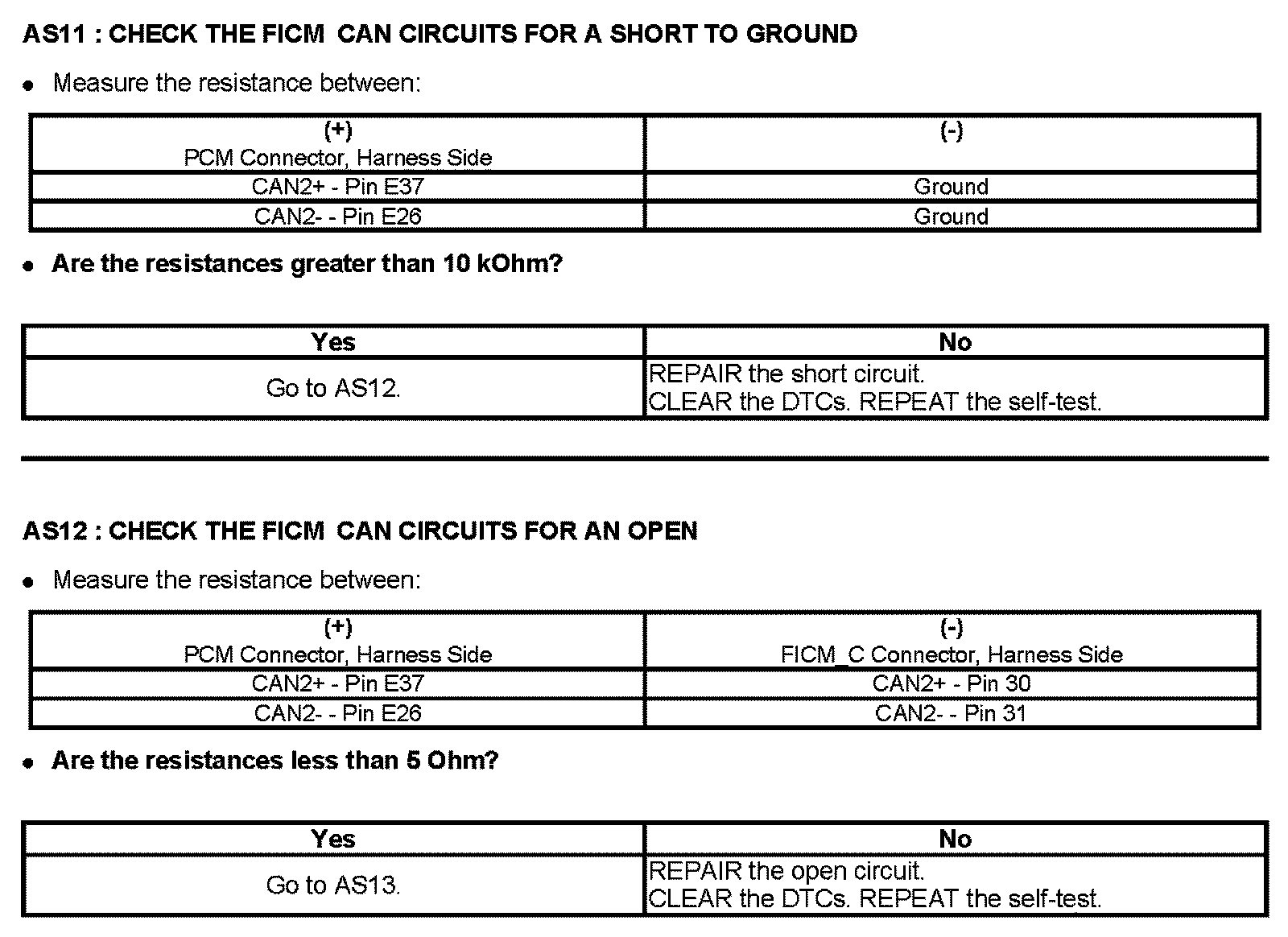

AS11-AS12:
