Exhaust System
Exhaust System
Exhaust System
, (6.0L Diesel Engine)

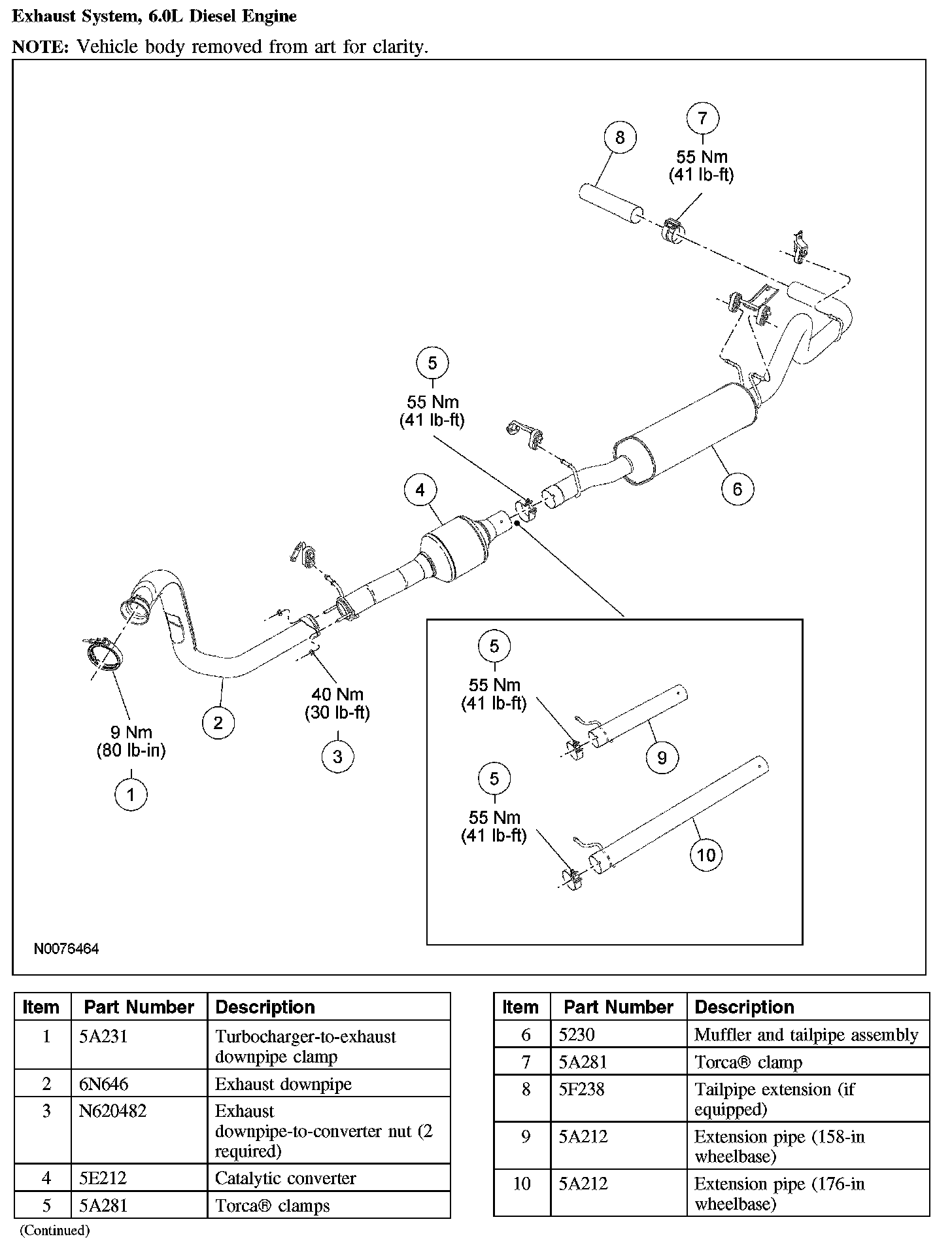

Exhaust System - Exploded View, 6.0L Diesel Engine:
