System Diagram

4R70E/4R75E - Automatic Transaxle/Transmission

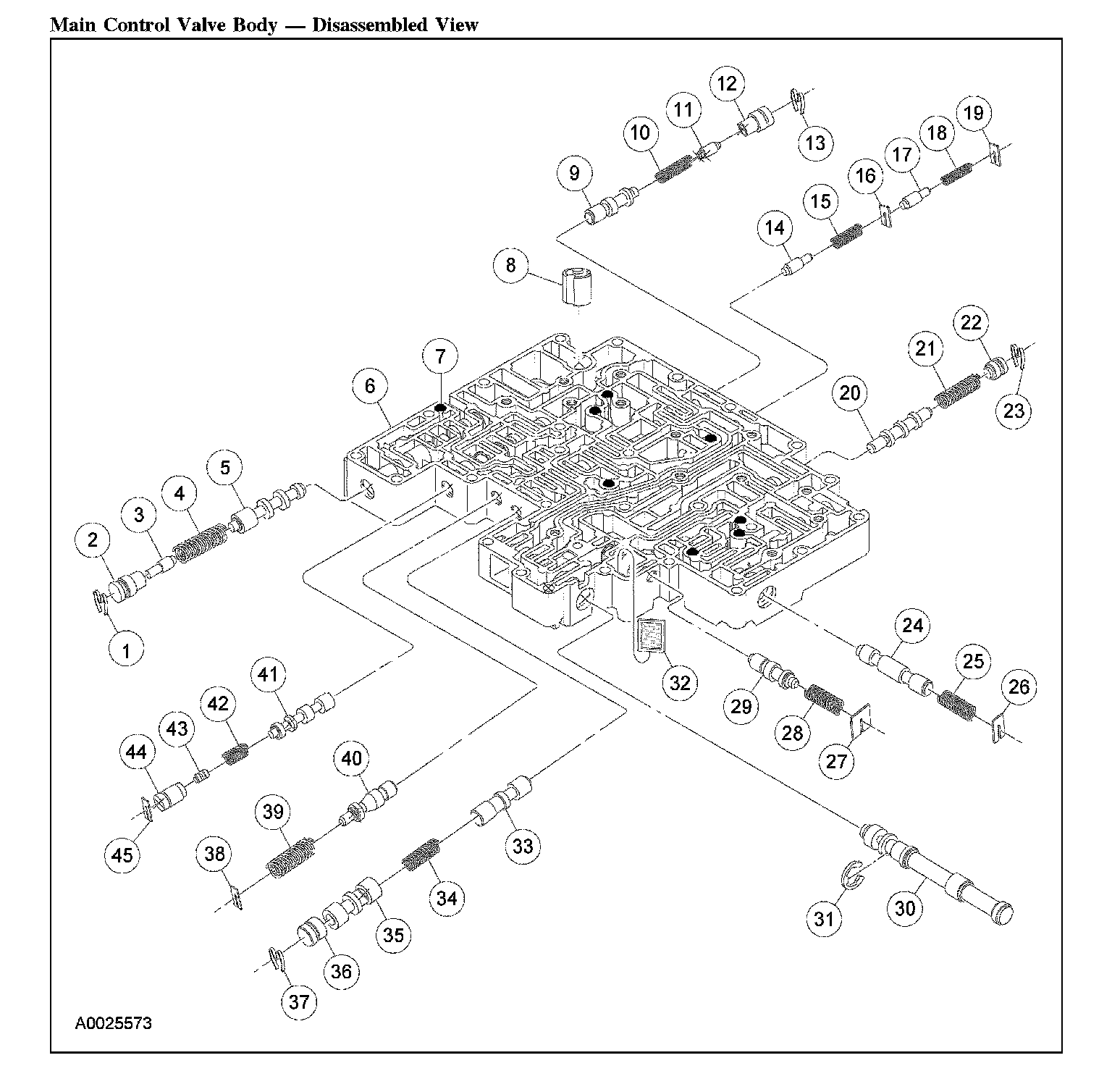

Main Control Valve Body - Disassembled View

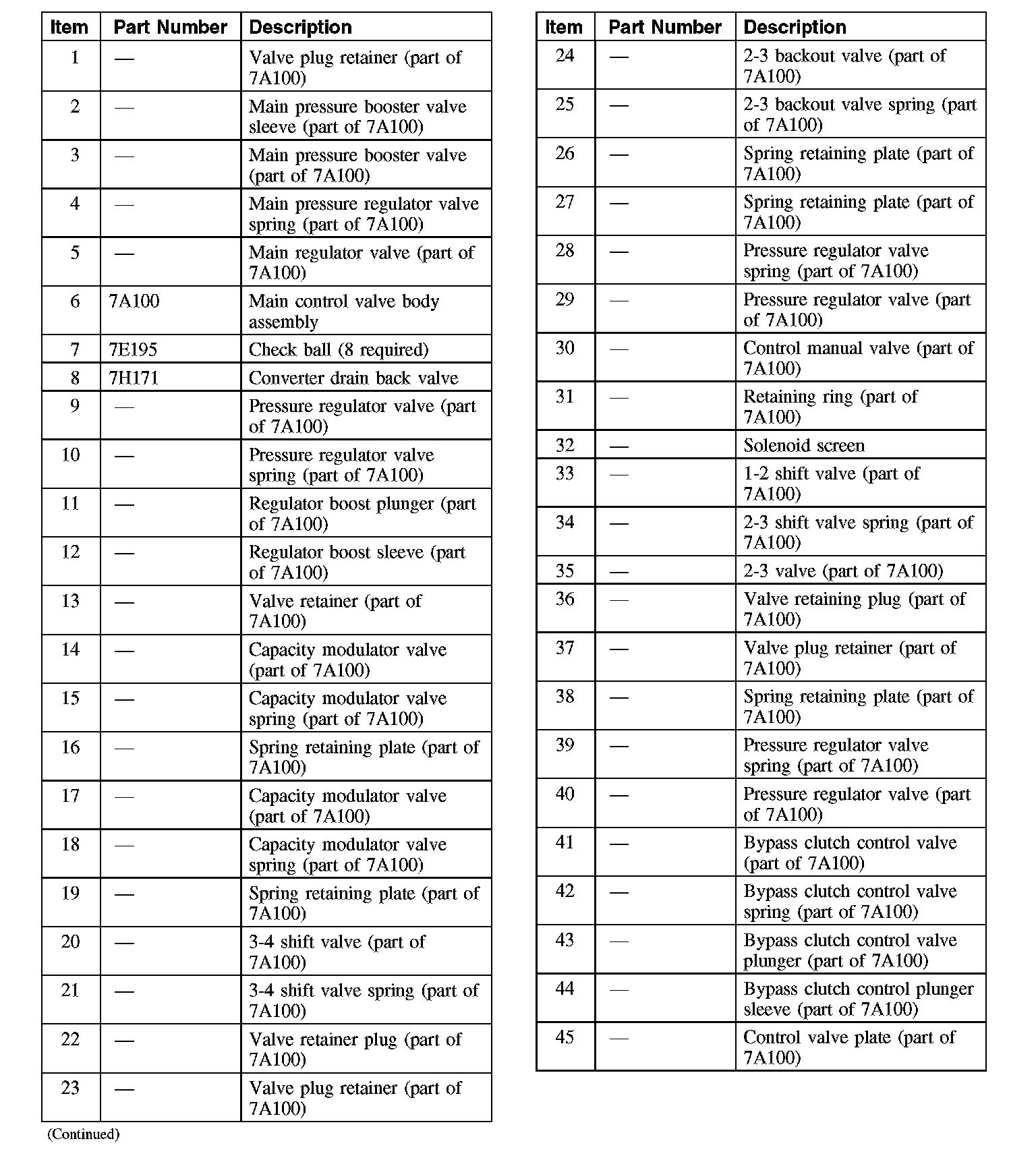

Main Control Valve Body - Disassembled View (Part 1):




Main Control Valve Body - Disassembled View (Part 2):
