Emission Control Systems: Diagrams
4.6L - Midship Fuel Tank (Part 1):
4.6L - Midship Fuel Tank (Part 2):

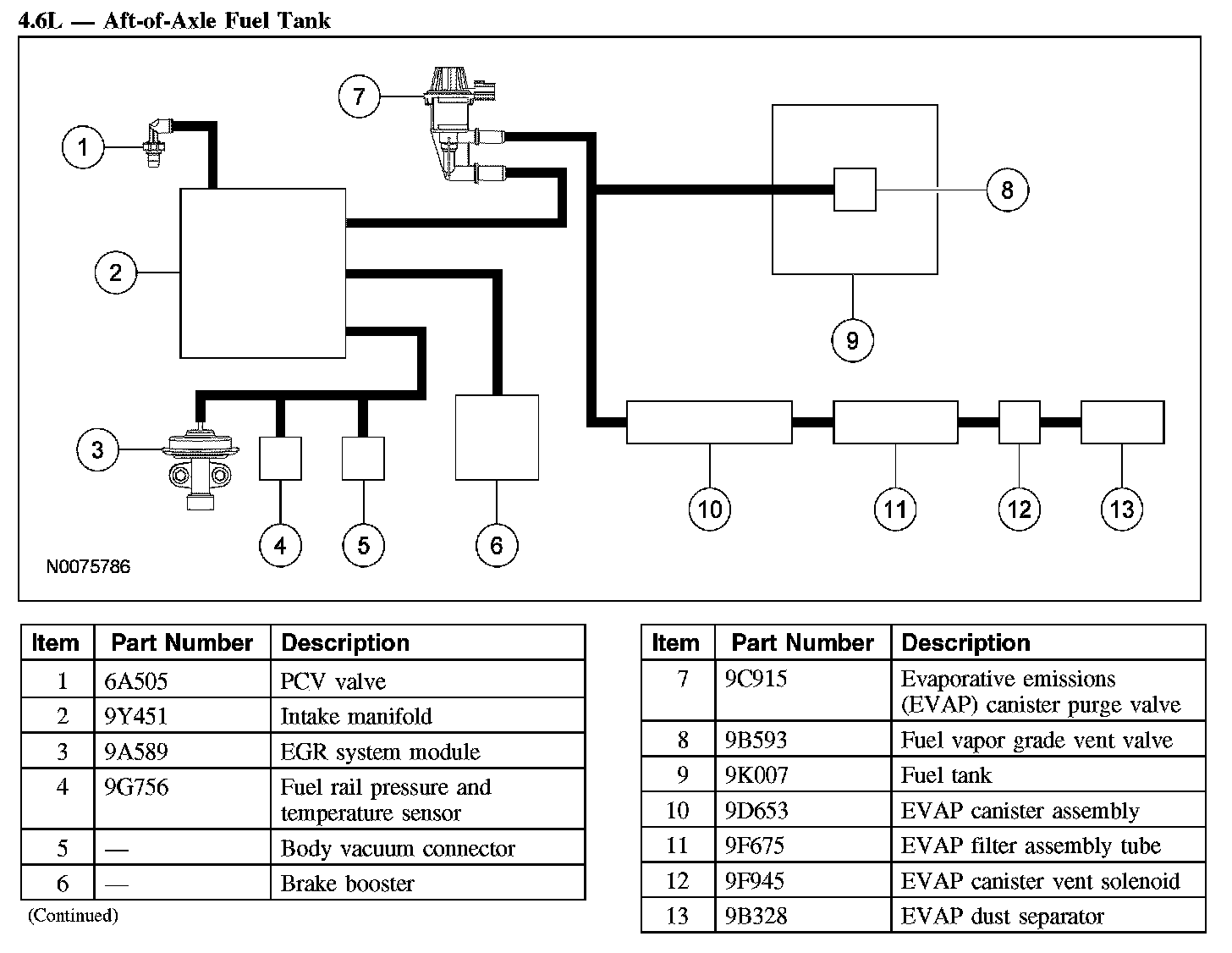

4.6L - Aft-of-Axle Fuel Tank:
