Home >> Ford >> 2008 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Console

Console

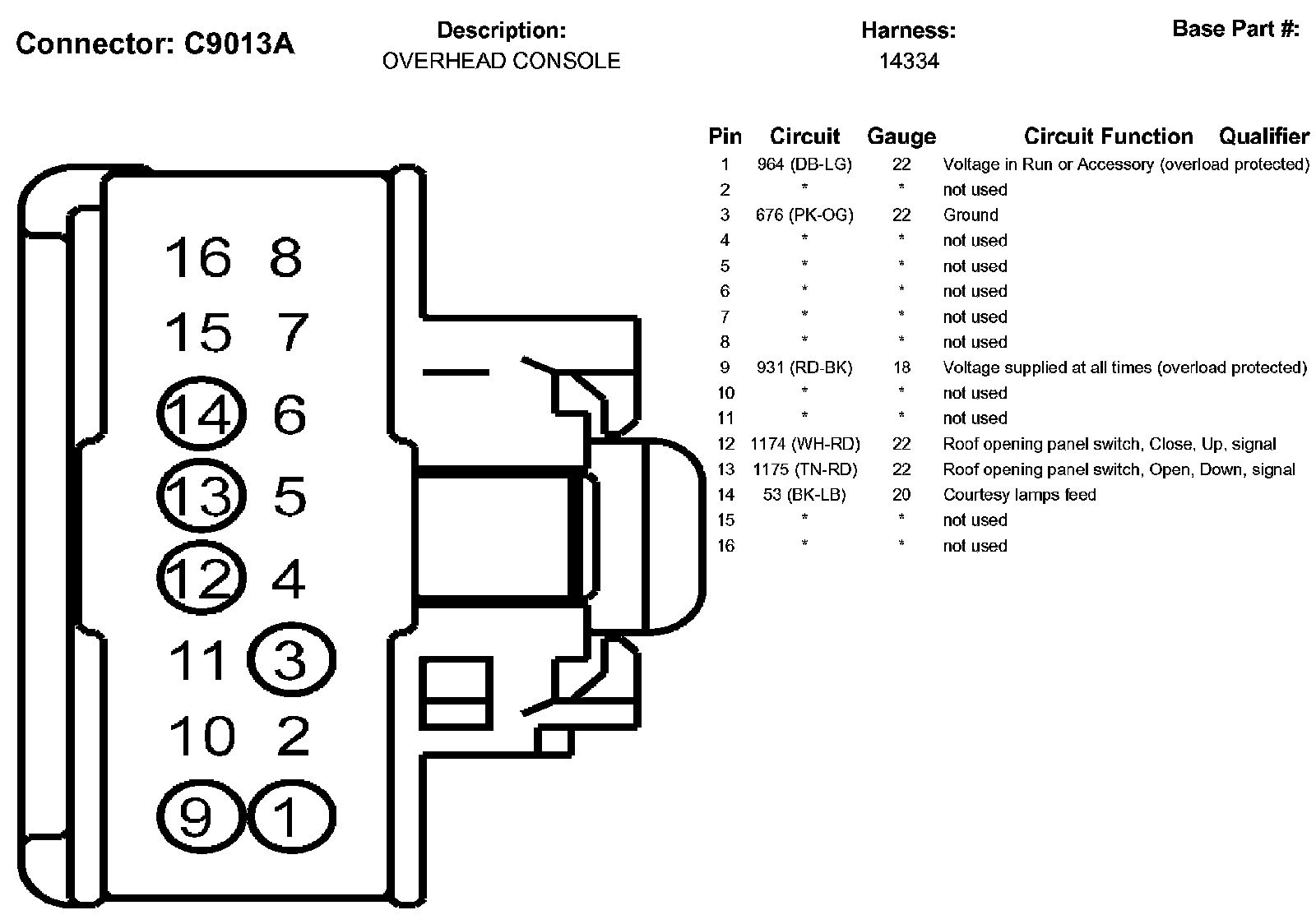

C9013A:

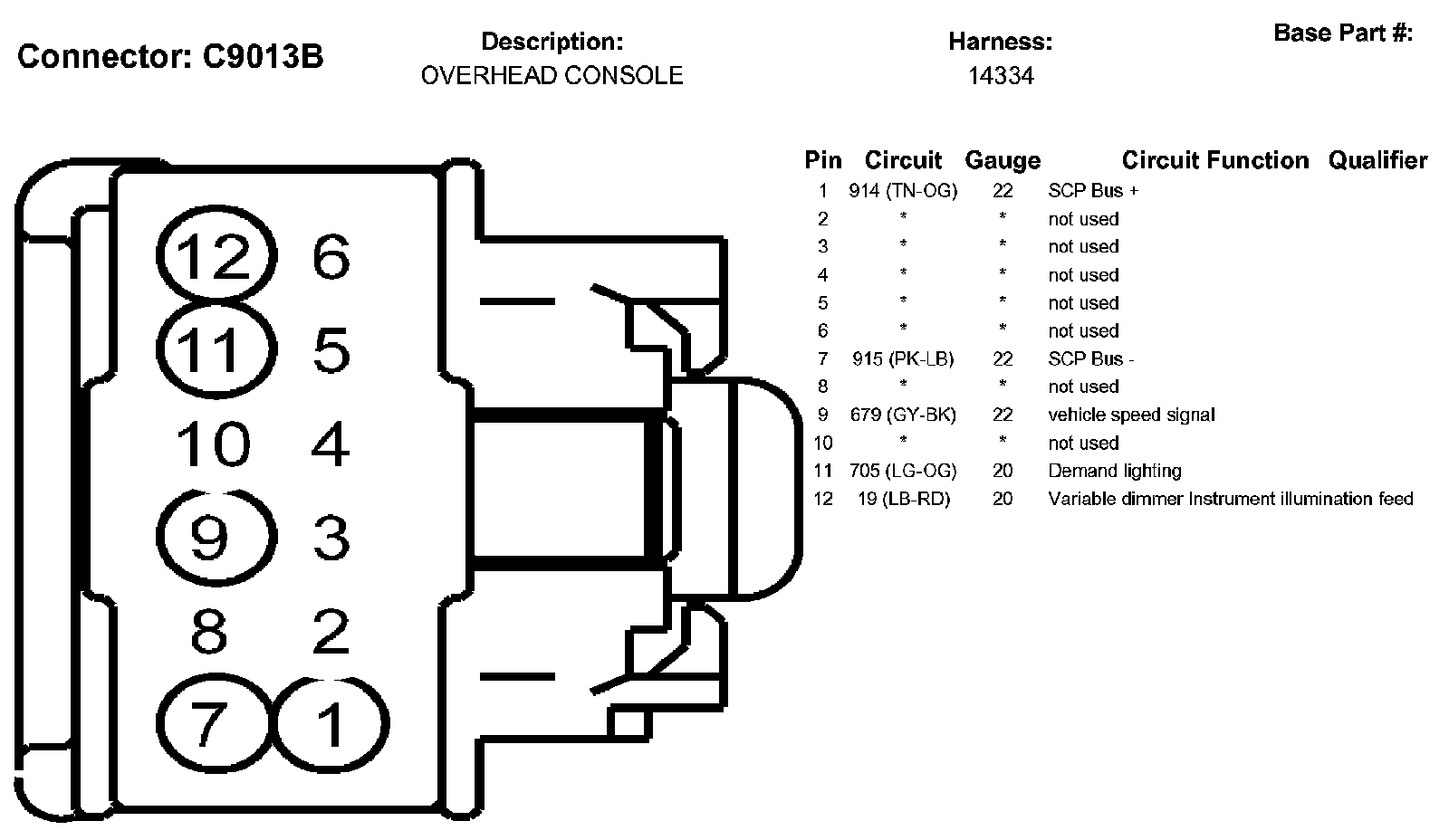

C9013B:

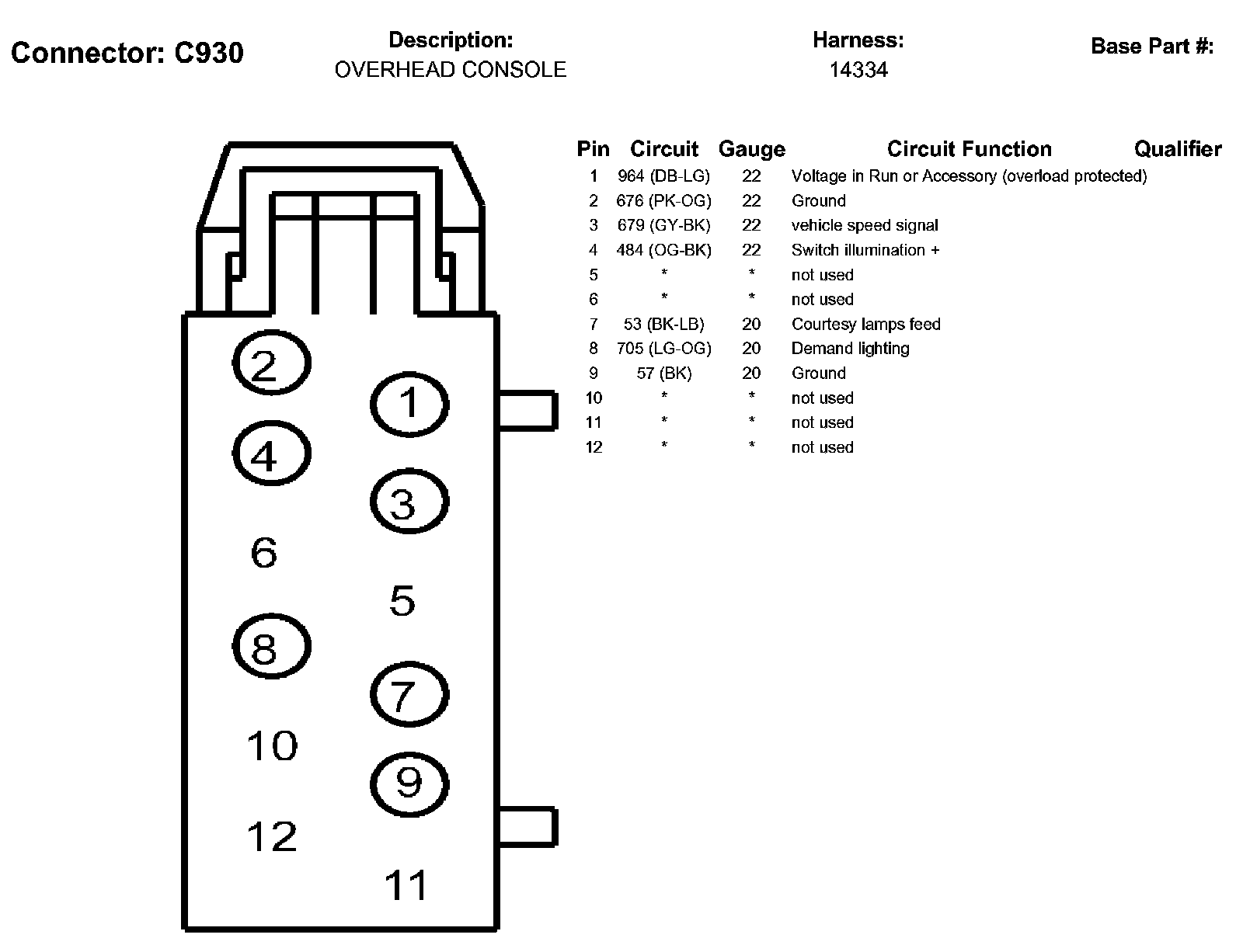

C930:
