Main Control Valve Body - Disassembled View

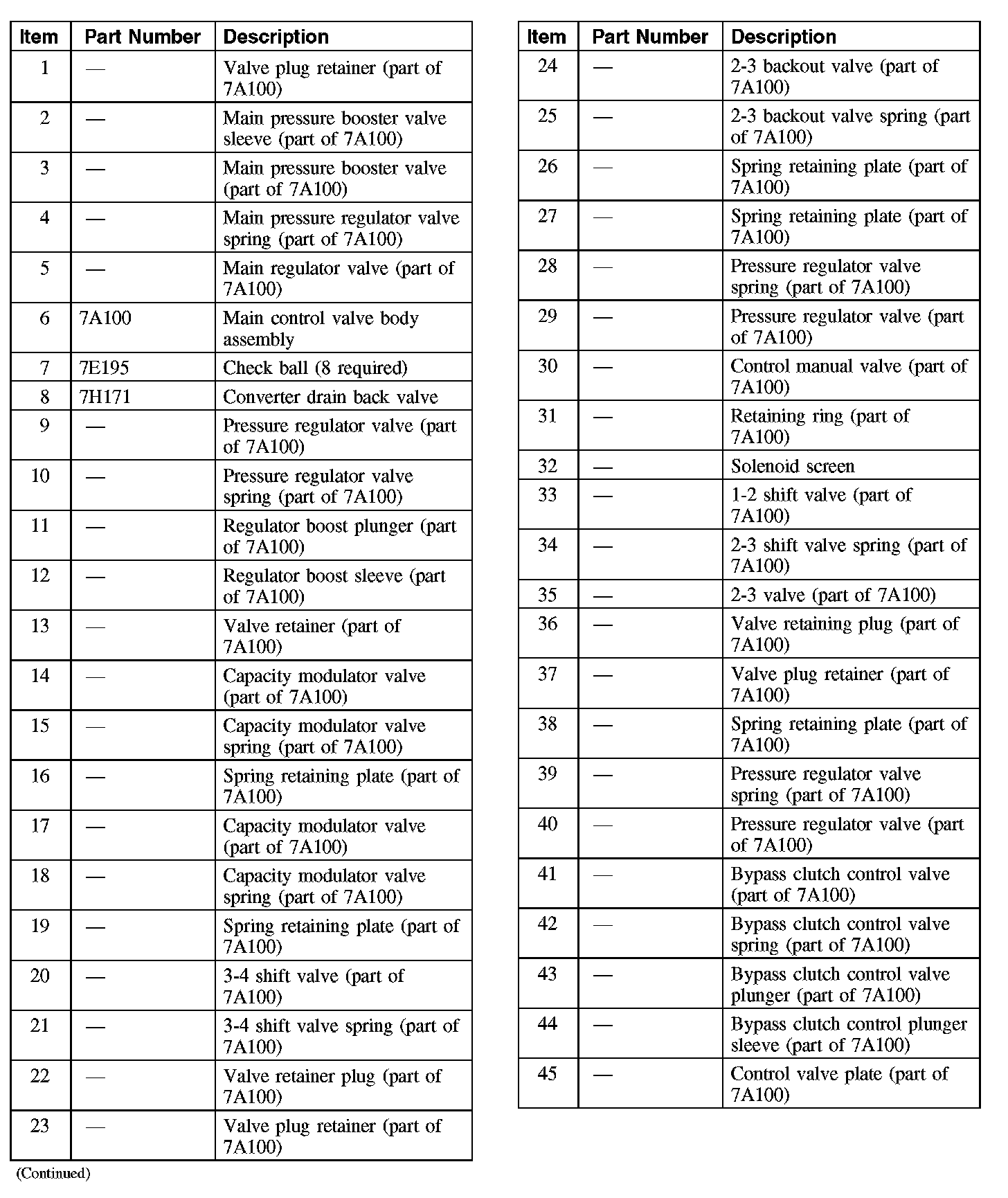

Main Control Valve Body - Disassembled View (Part 1):

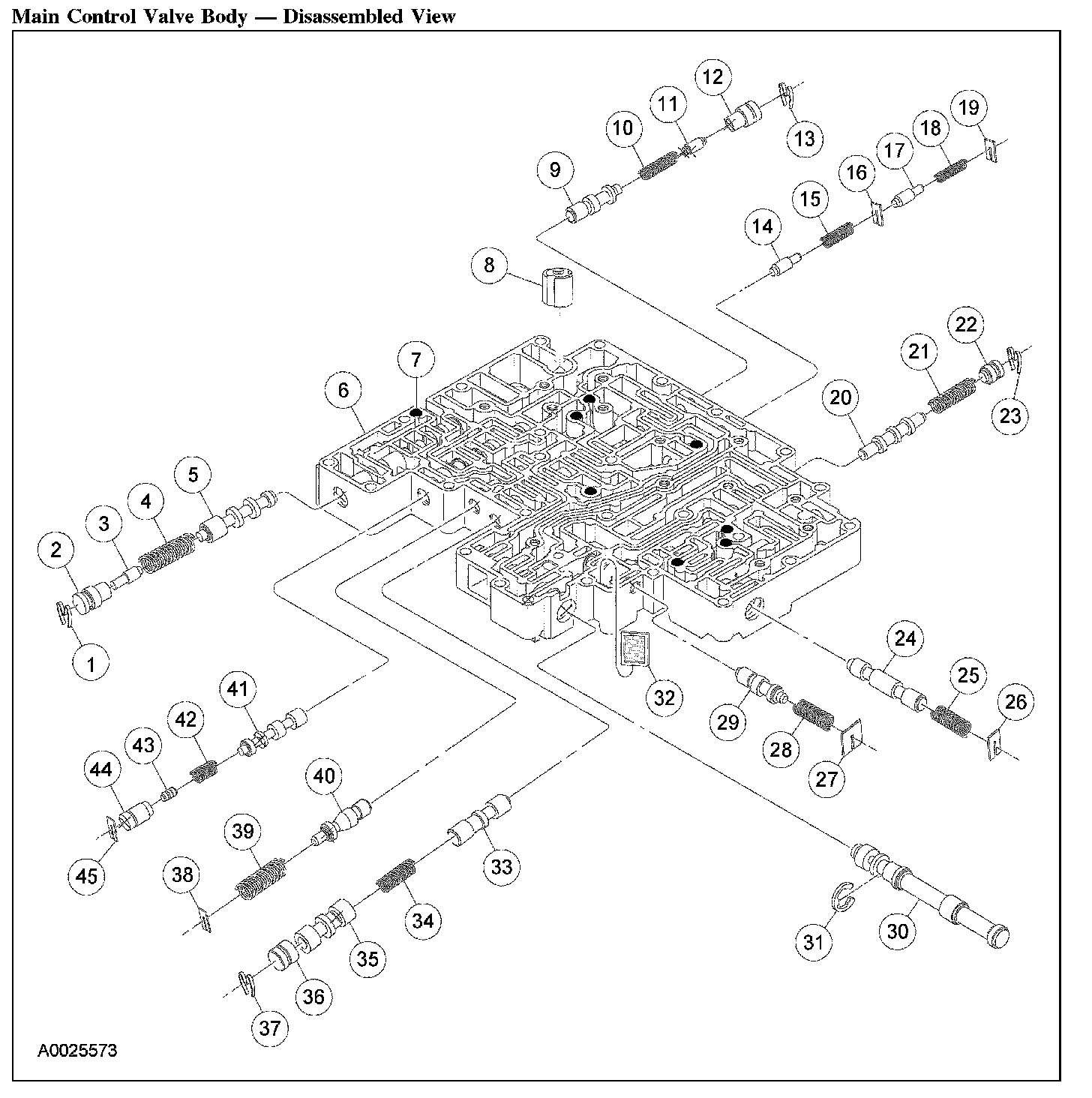

Main Control Valve Body - Disassembled View (Part 2):
