Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SENSOR

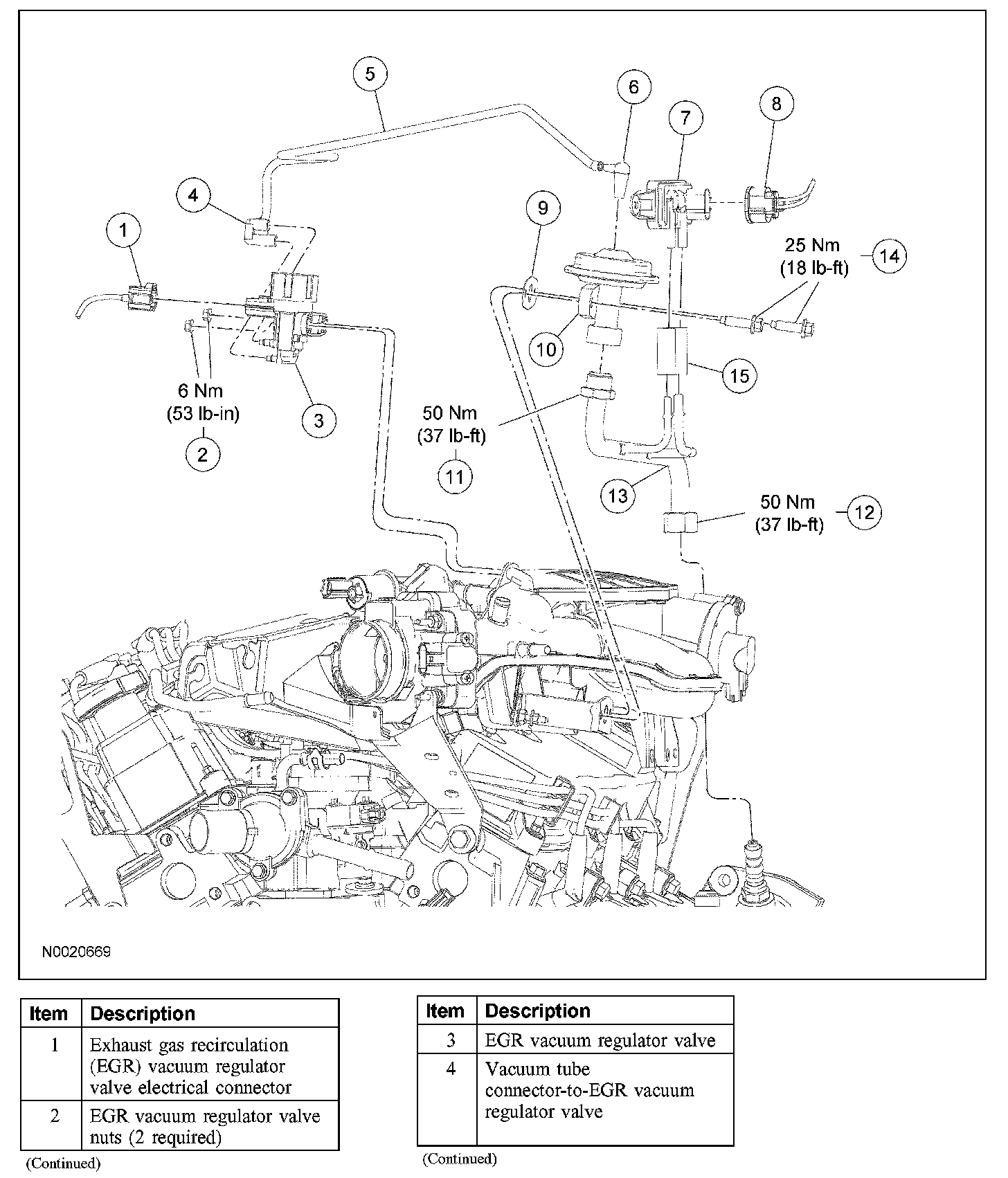

Exhaust Gas Recirculation (EGR) System Components - Exploded View (Part 1):

Exhaust Gas Recirculation (EGR) System Components - Exploded View (Part 2):

Exploded View

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the differential pressure feedback exhaust gas recirculation (EGR) sensor electrical connector.







3. Release the pin-type wire retainer from the differential pressure feedback EGR sensor.
4. Remove the differential pressure feedback EGR sensor from the vacuum hoses.
5. To install, reverse the removal procedure.
